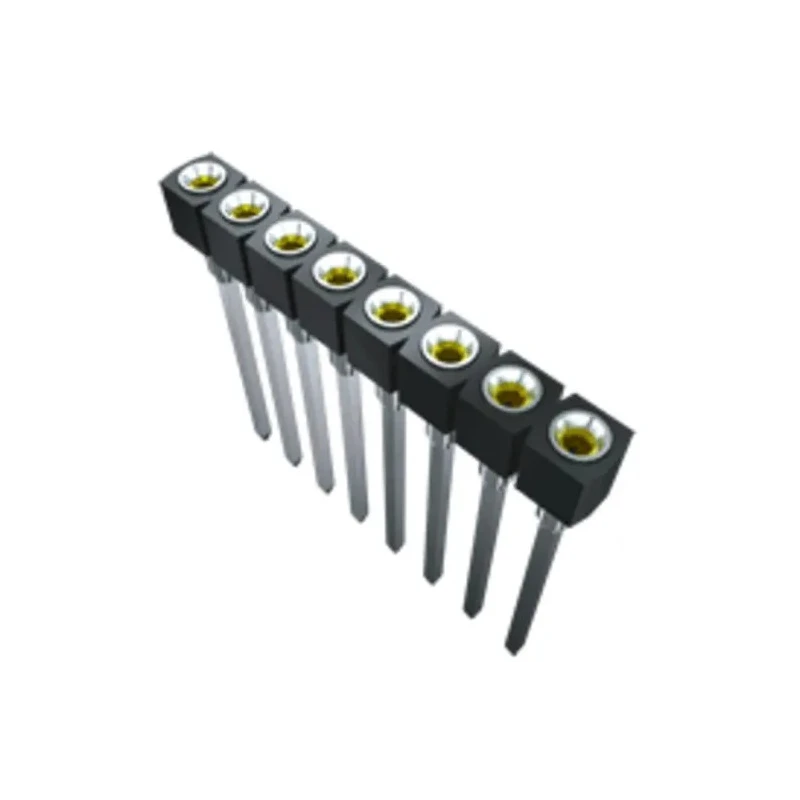

Samtec SS Series Straight Through Hole PCB Socket 10-Contact 1 Row 2.54 mm Pitch Screw SS-110-T-2

Name: Samtec SS Series Straight Through Hole PCB Socket 10-Contact 1 Row 2.54 mm Pitch Screw SS-110-T-2
Brand: Samtec
SKU: 147808
Price: 20.22 USD
Availability: InStock



Category Electronic Components Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Current	12A
Model	SS-110-T-2
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	SS
Termination Type	Screw
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Gold, Tin
Number of Contacts	10
Contact Gender	Female
Connector System	Board-to-Board
Contact System	Beryllium copper contact in machined Shell

Key Features

Designed for board-to-board connection with a straight orientation.
Features a single row of 10 female contacts with beryllium copper contact system in a machined shell.
Housing made from Liquid Crystal Polymer for durability and high temperature resistance.
Supports a current rating up to 12A with gold and tin contact plating for reliable conductivity.
Suitable for operating temperatures from -55°C up to 125°C.
Termination is via screw mount for secure and stable connections.
Complies with RoHS standards for environmental and safety compliance.
Mount type is through hole for robust PCB connection.

Product Description

Samtec SS Series model SS-110-T-2 is a highly reliable straight through hole PCB socket designed for board-to-board connection systems with a 2.54 mm pitch screw termination. This series offers a single row configuration with 10 female contacts made from bronze and plated with gold and tin for enhanced electrical conductivity and corrosion resistance.

The housing of this PCB socket is fabricated using Liquid Crystal Polymer, ensuring durability and stable performance across a wide temperature range from -55°C to 125°C. The contact system incorporates beryllium copper contacts set within a machined shell, providing excellent mechanical strength and consistent electrical contact.

This connector supports currents up to 12A, making it suitable for various electronic applications where dependable power and signal integrity are required. The screw termination ensures secure attachment to the PCB, ideal for environments subject to vibration or mechanical stress.

The SS Series PCB sockets are RoHS compliant, meeting stringent environmental regulations, and are well-suited for industrial, laboratory, manufacturing, and commercial electronics assembly environments. The through hole mount type offers strong mechanical fixation and ease of assembly.

Applications for this product range from single row PCB socket strips accommodating up to 32 contact positions, making it versatile for multiple electronic connector needs. Designed for board-to-board connection with straight orientation.

Single row 10 female contacts with beryllium copper contact system. Durable Liquid Crystal Polymer housing. Gold and tin plated bronze contacts for reliable conductivity. Current rating of 12A suitable for power and signal needs.

Operates between -55°C and 125°C. Screw termination for stable and secure PCB mounting. RoHS compliant for environmental safety. Through hole mount for mechanical robustness. Suitable for single row socket strips up to 32 positions.

Explore more PCB connectors and sockets on EnvMart to find compatible components that enhance your electronic assemblies.

Explore more products in our Electronic Components category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports a current rating of up to 12A, making it suitable for various electronic applications requiring dependable power and signal integrity.

The housing is made from Liquid Crystal Polymer, while the contacts are composed of bronze with gold and tin plating for enhanced conductivity and corrosion resistance.

This PCB socket features a single row configuration with 10 female contacts, designed for board-to-board connections.

It utilizes a screw termination type, ensuring secure and stable connections to the PCB, which is ideal for environments subject to vibration or mechanical stress.

Yes, the SS-110-T-2 complies with RoHS standards, ensuring it meets stringent environmental and safety regulations.

The pitch of the contacts is 2.54 mm, which is standard for many electronic connector applications.

This unit features a through hole mount type, providing robust mechanical fixation and ease of assembly on PCBs.

It incorporates a beryllium copper contact system set within a machined shell, offering excellent mechanical strength and consistent electrical contact.

It is suitable for various electronic applications, particularly in industrial, laboratory, manufacturing, and commercial electronics assembly environments.

This model is specifically designed with a straight orientation and a single row of 10 contacts, making it distinct within the SS Series for board-to-board connections.

The country of origin for this product is India, reflecting its manufacturing location.
