| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.65mm |
| Length | 1.65mm |
| Model | BZX585-B9V1,115 |
| Mount Type | Surface |
| Series | BZX585 |
| Maximum Operating Temperature | 150°C |
| Working voltage range | nominal 2.4 V to 75 V (E24 range) |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 300mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 9.1V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 10Ω |
| Typical Voltage Temperature Coefficient | 5.2mV/K |
| Total power dissipation | max. 300 mW |
| Non-repetitive Peak reverse power dissipation | max. 40 W |
| Two tolerance series | +- 2 pct and +- 5 pct |

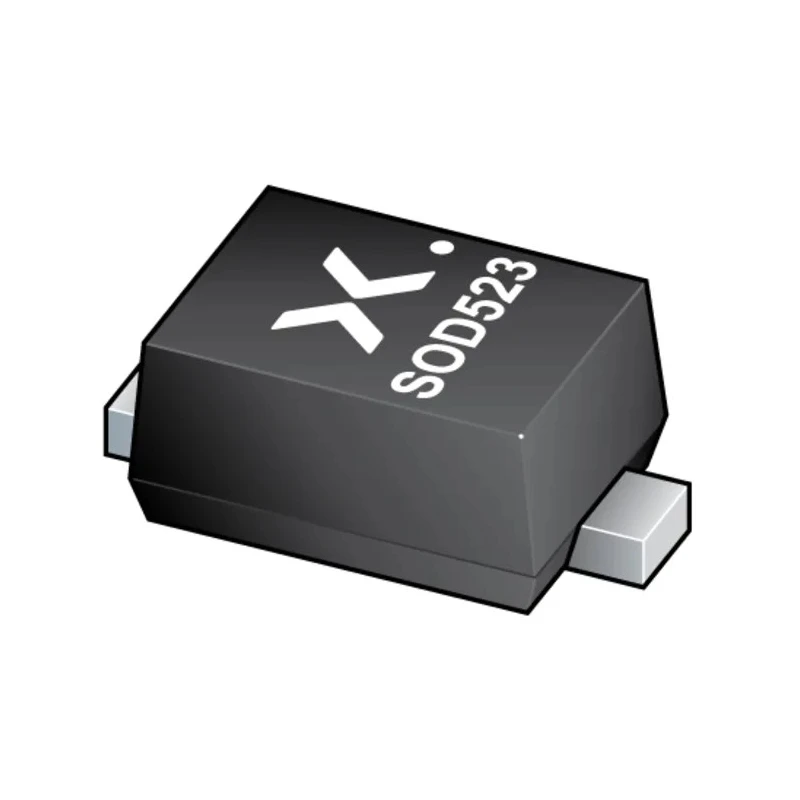

Nexperia BZX585-B9V1,115 is a high-reliability voltage regulator Zener diode designed for industrial, automotive, and electronic component applications. It features a single diode configuration with a nominal Zener voltage of 9.1 V, housed in an ultra-small SOD-523 surface mount package ideal for space-constrained PCB designs.
With a maximum power dissipation of 300 mW and a tight voltage tolerance of ±2%, this diode ensures accurate voltage regulation across varying electrical loads. The device operates reliably within an operating temperature range from -55°C to 150°C, supporting harsh environmental conditions.
The diode's maximum reverse leakage current is only 500 nA, reducing power loss and improving circuit efficiency. It achieves a maximum Zener impedance of 10 Ω, enhancing voltage regulation stability. The test current rating is 5 mA, typical for voltage regulation testing.
This model is AEC-Q101 compliant, confirming its capability for automotive electronics use. Its typical voltage temperature coefficient of 5.2 mV/K enables consistent voltage output with temperature fluctuations.
The device is part of the BZX585 series, which offers a wide working voltage range from 2.4 V to 75 V with two tolerance options (±2% and ±5%). It can handle non-repetitive peak reverse power dissipation of up to 40 W, making it robust for transient events.
Ideal for use in voltage regulation circuits, electronic devices, automotive systems, power supplies, and industrial electronics, this Zener diode enables reliable voltage stabilization and protection.
Voltage regulation with tight tolerance ±2%. Small SOD-523 surface mount package. Wide operating temperature range −55°C to 150°C. Low reverse leakage current of 500 nA max. Maximum power dissipation of 300 mW. AEC-Q101 qualified for automotive applications.
Stable performance with 10 Ω maximum Zener impedance. Typical voltage temperature coefficient 5.2 mV/K. Explore more Zener Diodes and electronic components in EnvMart's Semiconductor range for your industrial and automotive projects.
