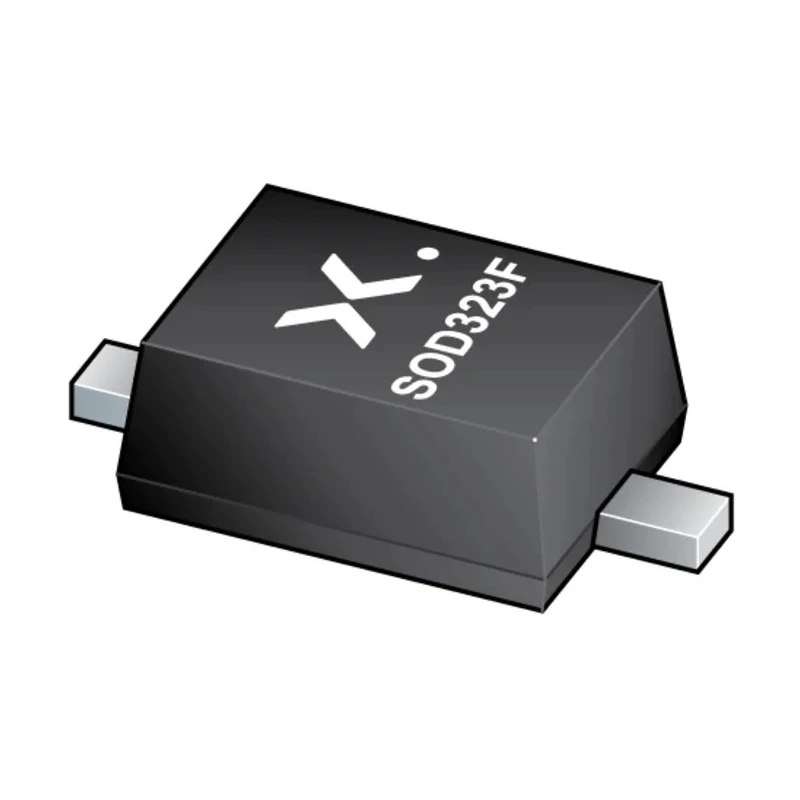

Nexperia General Purpose Zener Diode 18 V 550 mW Surface Mount 2-Pin SOD-323 BZX84J-B18,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia General Purpose Zener Diode 18 V 550 mW Surface Mount 2-Pin SOD-323 BZX84J-B18,115

Name: Nexperia General Purpose Zener Diode 18 V 550 mW Surface Mount 2-Pin SOD-323 BZX84J-B18,115
Brand: Nexperia
SKU: 147691
Price: 0.06 USD
Availability: InStock



Category Zener Diodes Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.8mm
Length	2.7mm
Model	BZX84J-B18,115
Mount Type	Surface
Series	BZX84J
Maximum Operating Temperature	150°C
Package Type	SOD-323
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	550mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	50nA
Nominal Zener Voltage Vz	18V
Zener Type	General Purpose
Maximum Zener Impedance	20Ω
Typical Voltage Temperature Coefficient	16mV/K
Total power dissipation	≤ 550 mW
Non-repetitive Peak reverse power dissipation	≤ 40 W
Two tolerance series	±2 % and ±5 %
Wide working voltage range	nominal 2.4 V to 75 V (E24 range)

Key Features

This diode has a single element and offers a nominal Zener voltage of 18 volts.
Maximum power dissipation is rated at 550 milliwatts ensuring reliable performance.
Featuring a 2-pin SOD-323 plastic surface mount package ideal for space-constrained designs.
The voltage tolerance is ±2 percent, suitable for stable voltage regulation.
It operates reliably between -55°C and 150°C operating temperatures.
Automotive-grade quality with AEC-Q101 qualification for high reliability.
Low reverse leakage current of 50 nanoamperes maximizes efficiency.
Typical voltage temperature coefficient is 16 millivolts per kelvin, enabling precise voltage control.

Product Description

Nexperia BZX84J-B18,115 is a high-quality general purpose Zener diode designed for voltage regulation applications in industrial, automotive, electronic component manufacturing, and semiconductor circuits.

This device features a nominal Zener voltage of 18 V with a maximum power dissipation of 550 mW. Housed in a space-saving SOD-323 plastic surface mount package with 2 pins, it is ideal for compact PCB layouts and modern electronic designs.

The diode is qualified to automotive AEC-Q101 standard, ensuring robust operation under harsh environmental conditions such as wide temperature ranges from -55°C to 150°C. Its low reverse leakage current of 50 nA minimizes power loss in sensitive circuits.

The ±2% voltage tolerance and typical voltage temperature coefficient of 16 mV/K provide stable voltage regulation over temperature variation. It supports a wide working voltage range of nominal 2.4 V to 75 V following the E24 range, making it versatile for various electronics and power applications.

The diode is suited for use in power supplies, voltage clamping, wave shaping, and general regulation functions within commercial, industrial, laboratory, and automotive semiconductor systems.

This diode has a single Zener element with 2 pins in a surface mount configuration. Maximum power dissipation rated at 550 mW suitable for moderate power electronics. Voltage tolerance of ±2 % ensures precise voltage control in circuits.

Operating temperature from -55°C to 150°C for reliable performance in extreme conditions. Automotive standard AEC-Q101 certification guarantees high reliability. Low reverse leakage current of 50 nA reduces wasted current in idle state.

Compact SOD-323 package with 0.8 mm height and 2.7 mm length conserves PCB space. Wide working voltage range from 2.4 V to 75 V, adaptable to many applications. Voltage temperature coefficient of 16 mV/K stabilizes output voltages over temperature changes.

Useful for electronic component manufacturing, automotive electronics, power regulation, and semiconductor device applications.

Make your electronic designs robust and compact by choosing Nexperia Zener Diodes for precise voltage regulation and protection functions. Explore our extensive range of semiconductor components at EnvMart.
