| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.7mm |
| Model | BZX384-B11,115 |
| Mount Type | Surface |
| Series | BZX384 |
| Maximum Operating Temperature | 150°C |
| Working voltage range | nominal 2.4 to 75 V (E24 range) |
| Package Type | SOD-323 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 300mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 11V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 20Ω |
| Typical Voltage Temperature Coefficient | 7.4mV/K |
| Total power dissipation | max. 300 mW |
| Non-repetitive Peak reverse power dissipation | max. 40 W |
| Two tolerance series | +-2pct and approx. +-5pct |

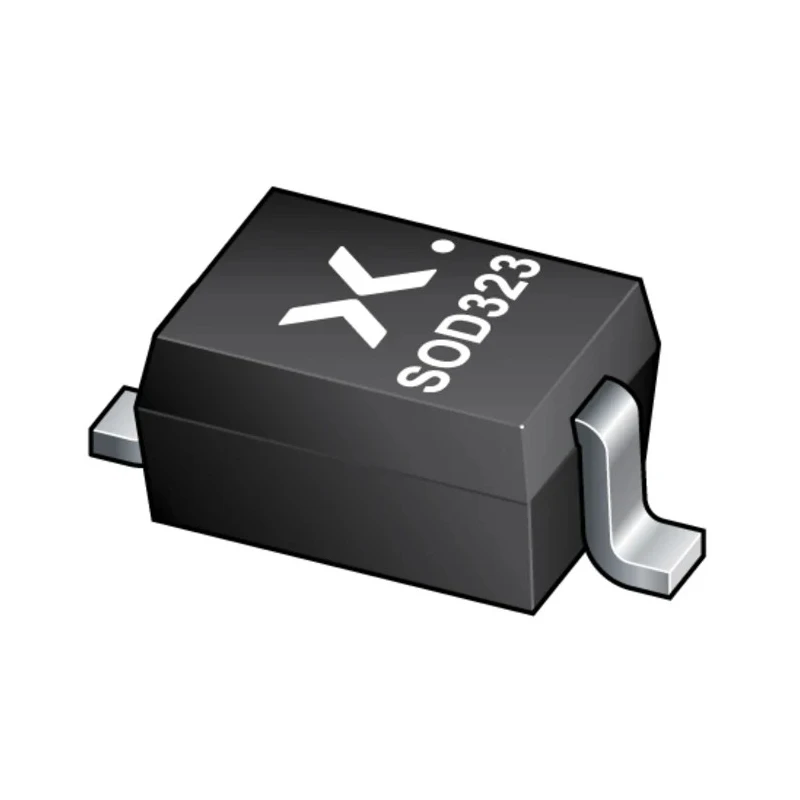

Nexperia BZX384-B11,115 is a precise 11 V zener diode designed for low-power voltage regulation in compact, surface-mount applications.
Encapsulated in a compact SOD-323 package with 2 pins, it supports a maximum power dissipation of 300 mW, making it suitable for tight spaces on printed circuit boards requiring voltage stabilization.
This single element diode provides a tight voltage tolerance of 2%, enabling consistent performance in sensitive electronics. It is tested at a nominal current of 5 mA and maintains a maximum zener impedance of 20 ohms.
The device operates over a broad temperature range from -65°C to 150°C, suitable for automotive and industrial environments, and holds the widely recognized AEC-Q101 qualification indicating compliance with automotive quality and reliability standards.
The diode has a low maximum reverse leakage current of 100 nA, minimizing power losses. Its small 2.7 mm length and 1.1 mm height make it ideal for compact circuit designs. It supports a working voltage range from 2.4 to 75 V as part of the BZX384 series.
Applications include industrial, automotive, telecommunications, and consumer electronics where precise voltage regulation and reliability are critical. Nexperia's BZX384-B11,115 contributes to enhanced circuit stability with its robust design meeting stringent automotive and industrial conditions.
Explore further components and solutions in the Zener Diode category at EnvMart for complementary electronic design needs.
