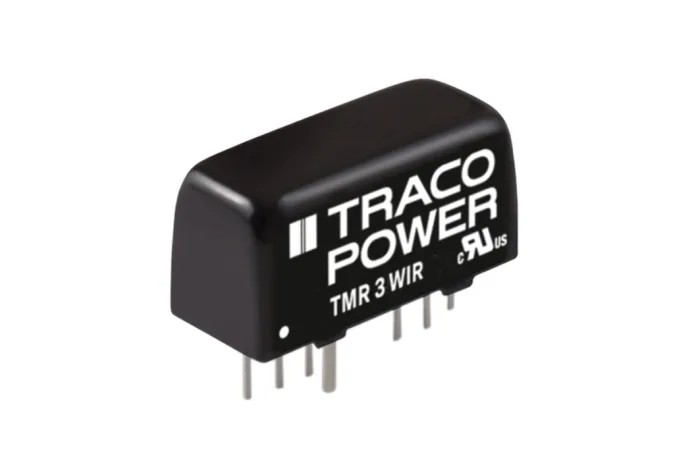

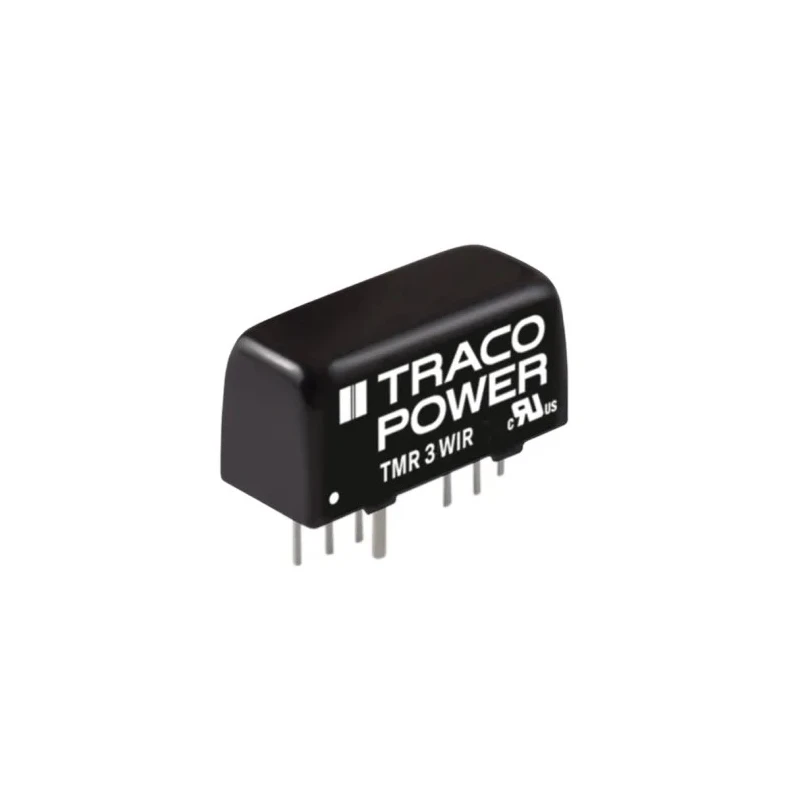

TRACOPOWER 3W Isolated DC/DC Converter 12V DC Output 250mA, 9V-36V DC Input Through Hole SIP Package TMR 3-2412WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMR 3WIR DC/DC Converter, 12V dc/ 250 m |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 21.8mm |
| Model | TMR 3-2412WIR |
| Depth | 11.1mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | TMR 3WIR |
| Maximum Operating Temperature | 90°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 5535000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 250mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Wide 2 | 1 input voltage range |
| Input Ratio4 | 1 |
Key Features
- Regulated single 12V DC output at 250mA current capacity and 3W power.
- Compact SIP-8 plastic package with through-hole mounting and six pins.
- High isolation voltage of 1.6kV DC protecting circuits.
- Operating temperature range from -40°C to +90°C for harsh conditions.
- Efficiency rating of 82% ensuring energy-efficient power conversion.
- Continuous short circuit protection for enhanced safety.
- Remote On/Off control feature for flexible operation.
- MTBF of 5,535,000 hours ensures long reliability.
Product Description
TRACOPOWER TMR 3-2412WIR is an isolated 3W DC/DC converter module providing a regulated 12V DC output at 250mA from a DC input voltage range of 9V to 36V. This converter is housed in a compact SIP-8 plastic package with through-hole mounting, featuring a small footprint of only 2.0 cm2. Its high efficiency of 82% supports operation in temperatures ranging from -40°C to +90°C, making it suitable for demanding industrial and electronic applications.
The device offers a high isolation voltage of 1.6kV DC, ensuring electrical insulation between input and output circuits, enhancing safety and signal integrity. It includes protection features such as continuous short circuit protection and supports remote On/Off control for flexible system integration.
With a mean time between failures (MTBF) of over 5.5 million hours, this model ensures long-term reliable performance in fields like communication equipment, instrumentation, industrial electronics, and other space-constrained electronic designs.
This converter's electrical configuration includes a 4:1 input ratio, single output channel with 6 pins, and package dimensions of approximately 21.8mm length, 9.2mm width, and 11.1mm depth.
Wide input voltage range from 9V to 36V DC for versatile usage. Regulated 12V DC single output delivering 250mA current. Through-hole SIP-8 package ensures sturdy PCB mounting. High isolation voltage of 1.6kV DC for safety and noise reduction.
Operating temperature range from -40°C to +90°C for reliability in extreme conditions. High efficiency of 82% reduces power loss and heat generation. Short circuit protection and remote On/Off enhances operational safety.
Compact design suited for space-critical industrial and communication electronics. Manufactured in Taiwan, Province Of China adhering to quality standards. Environmentally suitable for use in industrial, laboratory, communication, and instrumentation applications where compactness, efficiency, and robust operation are key.
Explore more DC/DC Converters and power supply solutions at EnvMart to meet your technical and application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 12V DC with a current capacity of 250mA.
The input voltage range for the TMR 3-2412WIR is from 9V to 36V DC.
The efficiency rating of the TMR 3-2412WIR is 82%, which helps reduce power loss during operation.
This model has dimensions of 21.8mm in length, 9.2mm in width, and 11.1mm in depth.
The TMR 3-2412WIR features a high isolation voltage of 1.6kV DC, ensuring electrical insulation between input and output circuits.
It operates effectively within a temperature range of -40°C to +90°C, making it suitable for harsh environments.
This converter has a single output channel.
This model uses a through-hole mounting type, suitable for PCB installation.
The TMR 3-2412WIR includes continuous short circuit protection and a remote On/Off control feature for enhanced operational safety.
The MTBF for the TMR 3-2412WIR is over 5.5 million hours, indicating long-term reliability.
This converter is suitable for applications in communication equipment, instrumentation, and industrial electronics, particularly where space is constrained.
The TMR 3-2412WIR has an input ratio of 4:1, allowing for versatile usage within its input voltage range.
