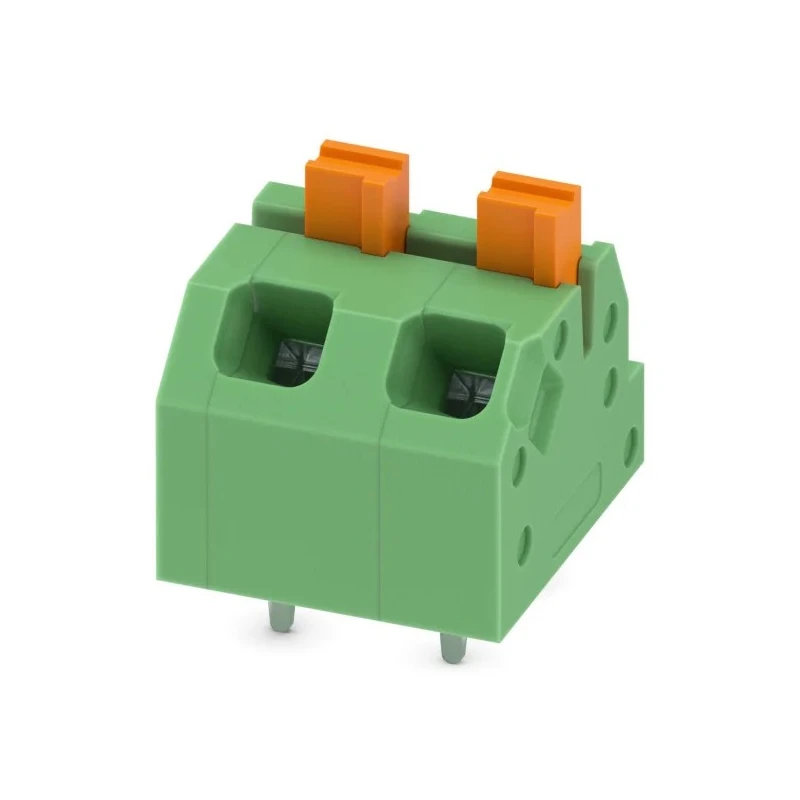

Phoenix Contact Angled Wave Soldering Mount PCB Terminal Block 2 Contacts 5 mm Pitch 2 Row 1862411
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Orientation | Angled |
| Current | 16A |
| Model | 1862411 |
| Mount Type | Wave Soldering Mount |
| Housing Material | Polyamide |
| Series | SPTAF 1/ 2-5.0-EL |
| Number of Rows | 2 |
| Pitch | 5mm |
| Standards/Approvals | EU RoHS, cULus Recognised |
| Number of Contacts | 2 |
| PCB Terminal block, nominal current | 16 A, nom. voltage: 320 V, pitch: 5 mm, number of positions: 2, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green |
Key Features
- Constructed with durable polyamide housing for insulation and protection.
- Supports nominal current of 16 A and nominal voltage of 320 V for reliable operation.
- Equipped with push-in spring connection for tool-free, time-saving wiring.
- Designed for angled wave soldering mount and conductor/PCB connection at 45° orientation.
- Integrated finger-operated release button enables convenient disconnection.
- Includes integrated test option for quick, convenient electrical testing.
- Compact size suits space-constrained applications and demanding PCB layouts.
- Complies with EU RoHS and cULus recognized standards ensuring quality and safety.
Product Description
Phoenix Contact 1862411 angled wave soldering mount PCB terminal block is engineered for industrial and electronic applications requiring secure, compact electrical connections. It features 2 contacts spaced at a 5 mm pitch arranged in 2 rows, supporting nominal currents up to 16 A and voltages up to 320 V.
The terminal block housing is made from high-quality polyamide material, providing excellent electrical insulation and mechanical robustness. The push-in spring connection system eliminates the need for tools, reducing assembly time and ensuring stable contact force over time.
Designed for angled wave soldering mounting, the terminal block connects conductors and the PCB at a 45° angle, assisting in space optimization and efficient routing.
Operational convenience is enhanced by a finger-operated release button allowing easy conductor release. Additionally, the terminal block offers integrated test points to facilitate quick and reliable electrical testing during maintenance or installation.
This product meets strict compliance with EU RoHS directives and holds cULus recognition, confirming adherence to essential safety standards.
Made in Germany, the component reflects precision manufacturing for demanding industrial environments including electronics manufacturing, control systems, instrumentation, and automation industries.
Constructed with durable polyamide housing for insulation and protection. Supports nominal current of 16 A and nominal voltage of 320 V for reliable operation. Equipped with push-in spring connection for tool-free, time-saving wiring.
Designed for angled wave soldering mount and conductor/PCB connection at 45° orientation. Integrated finger-operated release button enables convenient disconnection. Includes integrated test option for quick, convenient electrical testing.
Compact size suits space-constrained applications and demanding PCB layouts. Complies with EU RoHS and cULus recognized standards ensuring quality and safety. Manufactured in Germany ensuring high precision engineering and reliability.
Explore more products in the PCB Terminal Block category and other Phoenix Contact components on EnvMart for reliable electronic component selection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a nominal current of 16 A and a nominal voltage of 320 V.
The model features a pitch of 5 mm and includes 2 contacts arranged in 2 rows.
It is equipped with a push-in spring connection method, allowing for tool-free wiring.
This model is designed for an angled orientation, specifically for wave soldering mount at a 45° angle.
The housing is constructed from durable polyamide, providing insulation and protection.
Yes, it includes integrated test points for quick and convenient electrical testing.
It complies with EU RoHS directives and holds cULus recognition, ensuring adherence to safety standards.
This terminal block is manufactured in Germany, reflecting precision engineering.
Specific dimensions and weight details are not provided in the available data.
It is suitable for industrial and electronic applications requiring secure and compact electrical connections.
The series designation for this model is SPTAF 1/ 2-5.0-EL.
This terminal block is designed for wave soldering mount.
