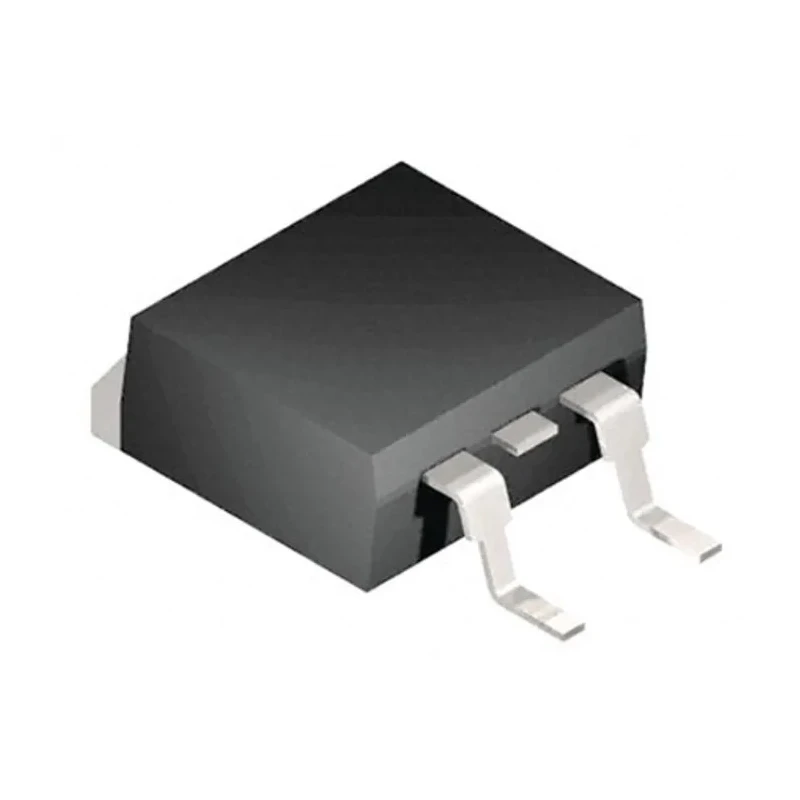

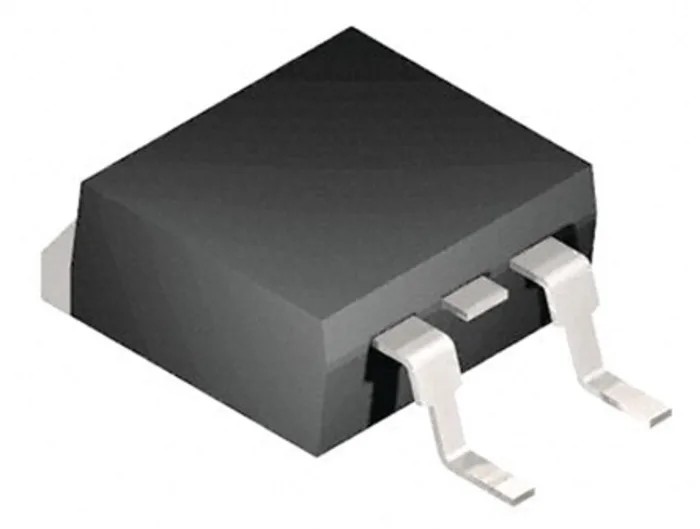

ROHM 650 V 12 A Surface Mount Schottky Diode TO-263AB Package 4-Pin SCS212AJTLL
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 4.5mm |
| Length | 10.1mm |
| Model | SCS212AJTLL |
| Width | 9mm |
| Mount Type | Surface |
| Series | SCS212AJ |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263AB |
| Minimum Operating Temperature | -55°C |
| Pin Count | 4 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 650V |
| Diode Configuration | Common Anode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 240μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 170A |
| Maximum Forward Voltage Vf | 1.63V |
Key Features
- Delivering a maximum continuous forward current of 12 amperes for robust operation.
- Equipped with a peak reverse repetitive voltage of 650 volts for high voltage resilience.
- Package type TO-263AB with 4-pin configuration enables easy surface mounting.
- Low forward voltage of 1.63 volts minimizes power loss during operation.
- Operates reliably across a temperature range from -55°C to 175°C.
- Peak non-repetitive forward surge current rating of 170 amperes supports transient load conditions.
- Compact dimensions with length 10.1 mm, width 9 mm, and height 4.5 mm for space-efficient designs.
- Common anode diode configuration tailored for rectifier and switching applications.
Product Description
ROHM SCS212AJTLL is a high-performance Schottky diode featuring a 650 V peak reverse voltage and 12 A continuous forward current capability. It is designed in a TO-263AB package with a practical 4-pin surface mount configuration, suitable for modern electronics and power supply applications.
With a forward voltage drop of only 1.63 V, this diode minimizes power dissipation, enhancing energy efficiency in circuits where reducing heat generation is critical. Its robust electrical characteristics include a peak non-repetitive forward surge current of 170 A, making it capable of handling transient surges without damage.
The device supports an operating temperature range from -55°C up to 175°C, suitable for harsh industrial environments. The compact dimensions (10.1 mm length, 9 mm width, and 4.5 mm height) allow for space-saving PCB layouts.
This diode is configured with a common anode arrangement, optimized for rectification and switching tasks in semiconductor applications. Although it does not meet automotive standards, it is well suited for electronic components, power connectors, and semiconductor discrete devices.
Maximum continuous forward current: 12 A. Peak reverse repetitive voltage: 650 V. Peak reverse current: 240 μA. Mount type: Surface mount. High-speed switching enabled by Schottky design. Operating temperature range from -55°C to 175°C.
Package: TO-263AB, 4-pin configuration. Length 10.1 mm, width 9 mm, height 4.5 mm. Suitable for industrial and electronic semiconductor use.
This diode is ideal for industrial machines, power supply units, electronic manufacturing, and high-efficiency rectifier applications. ROHM offers reliable semiconductor components used worldwide for durable electronics systems. Explore the Electronics & Electricals category at EnvMart for related Schottky diodes and rectifiers.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 12 amperes.
It has a peak reverse repetitive voltage rating of 650 volts.
The dimensions of the TO-263AB package are 10.1 mm in length, 9 mm in width, and 4.5 mm in height.
The forward voltage drop is 1.63 volts, which helps minimize power loss during operation.
The peak non-repetitive forward surge current rating is 170 amperes, allowing it to handle transient load conditions.
It operates reliably across a temperature range from -55°C to 175°C.
This model features a common anode diode configuration, which is suitable for rectifier and switching applications.
The peak reverse current is rated at 240 μA.
The mount type for this diode is surface mount, designed for easy integration into modern electronics.
It is suitable for industrial machines, power supply units, electronic manufacturing, and high-efficiency rectifier applications.
The TO-263AB package has a pin count of 4.
This diode belongs to the SCS212AJ series.
