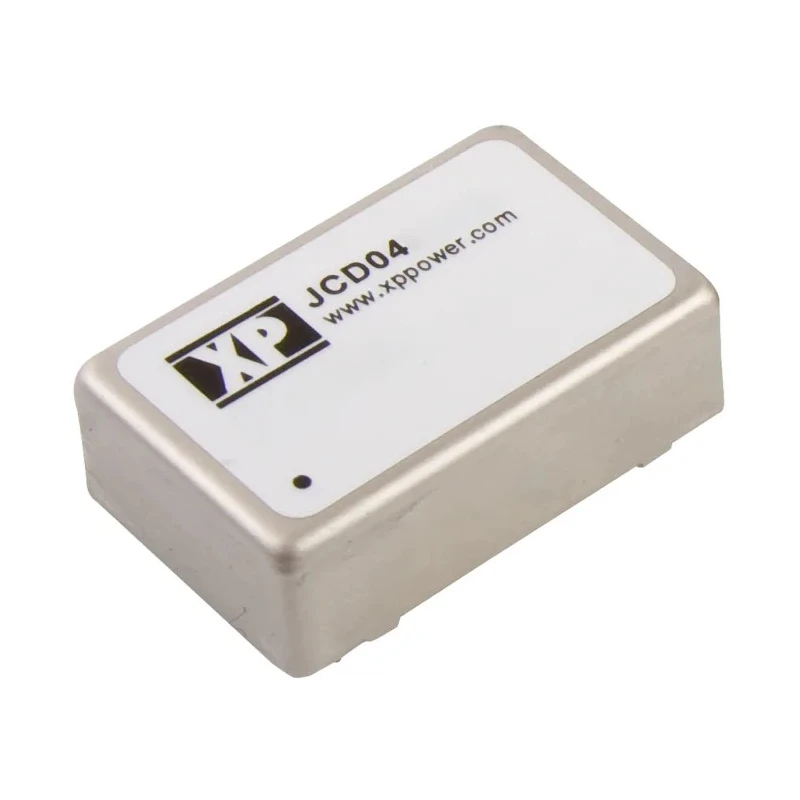

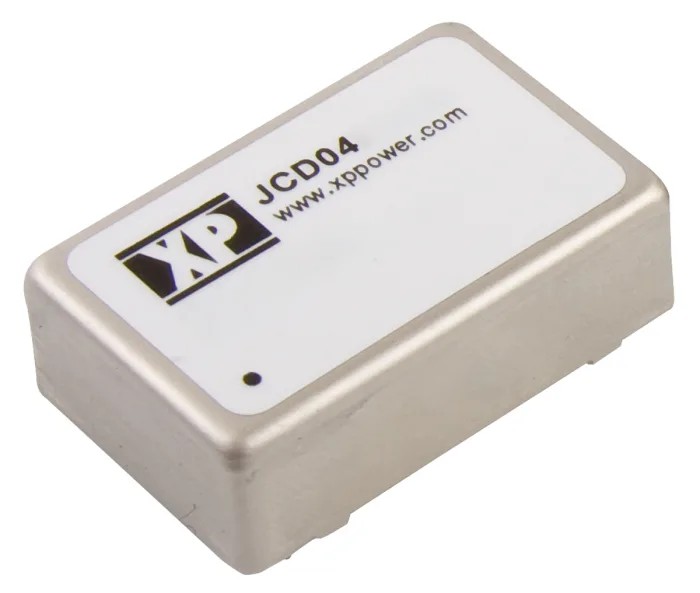

XP Power Isolated DC-DC Converter 9V DC Output 250mA 4W Through Hole JCD0424S09
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCD DC/DC Converter, 9V dc/ 250 mA, 36V d |
| Brand | XP Power |
| Efficiency | 83% |
| Length | 31.75mm |
| Model | JCD0424S09 |
| Depth | 10.4mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCD |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 4W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 250mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- It offers high isolation voltage of 1.6kV DC ensuring safe operation under demanding electrical conditions.
- Compact through-hole DIP package supports easy PCB mounting with 24 pins.
- The unit maintains an operating temperature range from -40°C to +100°C for reliable industrial use.
- Efficiency is rated at 83%, providing energy-efficient voltage conversion.
- With a MTBF of 1,100,000 hours, it ensures long-term durability and performance.
- Designed for single output use with output voltage adjustment within ±1% tolerance.
- Suitable for industrial, laboratory, and power management applications requiring stable low voltage supply.
Product Description
XP Power JCD0424S09 is a robust isolated DC-DC converter delivering 9V DC output at 250mA with a power capacity of 4W. Designed to operate from a wide input range of 18V to 36V DC, this converter provides reliable voltage conversion in a compact through-hole DIP package.
The converter’s 2:1 input ratio and isolation voltage of 1.6kV DC provide enhanced electrical safety and flexibility for various power management applications. It features continuous short circuit protection and an efficiency of 83%, contributing to energy savings in industrial and laboratory environments.
This model supports an operating temperature range from -40°C to +100°C, meeting stringent environmental demands commonly found in manufacturing and electronic instrumentation sectors. The device's MTBF is rated at 1,100,000 hours, indicating its high reliability for continuous operations.
The JCD series, including this model, is suitable for use in power supplies, embedded systems, and industrial control units requiring isolated voltages. The 24-pin DIP configuration allows for easy integration on printed circuit boards using through-hole mounting techniques.
This converter features a 2:1 input voltage ratio suitable for versatile power supply applications. It offers high isolation voltage of 1.6kV DC ensuring safe operation under demanding electrical conditions. Compact through-hole DIP package supports easy PCB mounting with 24 pins.
The unit maintains an operating temperature range from -40°C to +100°C for reliable industrial use. Efficiency is rated at 83%, providing energy-efficient voltage conversion. With a MTBF of 1,100,000 hours, it ensures long-term durability and performance.
Designed for single output use with output voltage adjustment within ±1% tolerance. Suitable for industrial, laboratory, and power management applications requiring stable low voltage supply. This product aligns well with applications in industrial machinery, telecommunications equipment, instrumentation, and control systems where isolated DC power is critical.
Explore more XP Power DC-DC converters and related power supply solutions in EnvMart's electronics catalog for comprehensive power management options.
Explore more products in our DC/DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 9V DC output with a maximum output current of 250mA.
The efficiency of this DC-DC converter is rated at 83%, contributing to energy-efficient voltage conversion.
It features a high isolation voltage of 1.6kV DC, ensuring safe operation under demanding electrical conditions.
The unit maintains an operating temperature range from -40°C to +100°C, suitable for reliable industrial use.
This converter has dimensions of 31.75mm in length, 20.32mm in width, and 10.4mm in depth.
It supports through-hole mounting with a 24-pin DIP package, facilitating easy integration on printed circuit boards.
The model operates with an input voltage range of 18V to 36V DC, providing flexibility for various applications.
The maximum output power of this DC-DC converter is 4W.
The MTBF is rated at 1,100,000 hours, indicating high reliability for continuous operations.
This converter is suitable for industrial, laboratory, and power management applications requiring stable low voltage supply.
Yes, it features continuous short circuit protection, enhancing its safety and reliability during operation.
This unit complies with RoHS standards, ensuring it meets environmental regulations.
