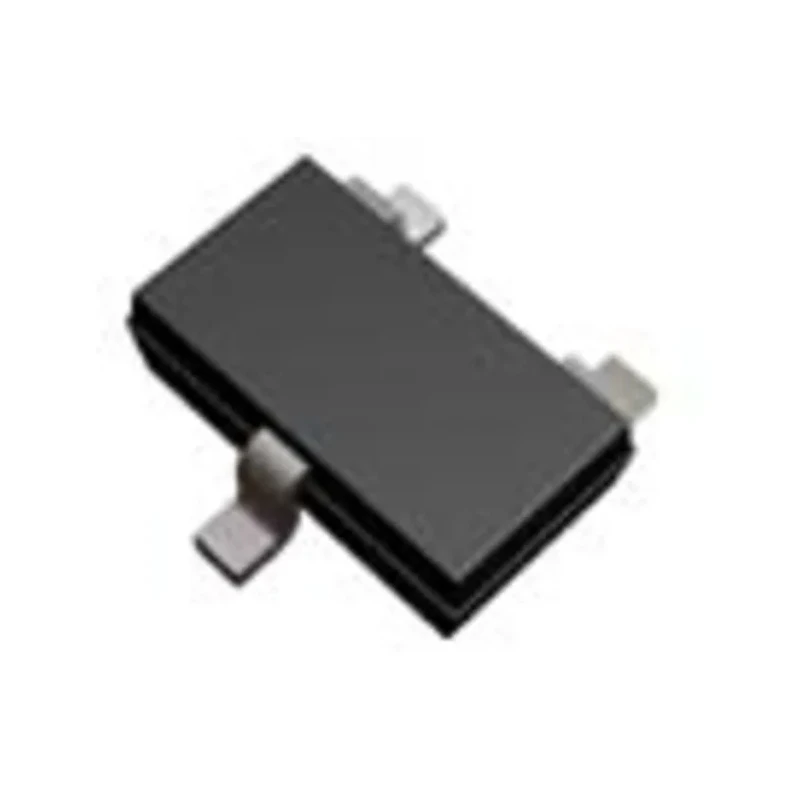

ROHM PNP Transistor 3-Pin Surface Mount, -1 A Collector Current, -50 V Collector Emitter Voltage 2SAR513RTL

ROHM 2SAR513RTL PNP Transistor is a high-performance bipolar transistor designed for surface mount applications in electronic circuits requiring reliable switching and amplification. This transistor features a maximum DC collector current of -1 ampere and a maximum collector emitter voltage of -50 volts, making it suited for power applications within specified limits.

The device operates with a minimum DC current gain (hFE) of 180, which provides consistent and reliable amplification characteristics. It also supports a maximum power dissipation of 1 watt, sufficiently managing thermal loads in compact electronic designs.

Its maximum transition frequency of 400 MHz allows usage in high-frequency signal processing and switching circuits. The small physical form factor, with dimensions of 3 mm in length, 1.8 mm in width, and 1 mm in height, enables its integration into surface-mount technology (SMT) printed circuit boards with limited space.

The 3-pin configuration facilitates ease of mounting and electrical connection in a variety of electronic modules. Operating temperatures up to 150°C confirm its suitability for demanding industrial, consumer electronics, and communications device environments.

Typical applications include amplification, switching, and signal conditioning in automotive, industrial machinery, communication equipment, and consumer electronics. ROHM's 2SAR513RTL transistor ensures dependable functionality and conforms with RoHS regulations for environmental compliance.

PNP transistor type designed for surface mounting. Maximum DC collector current of -1 ampere. Maximum Collector Emitter Voltage rated at -50 volts. Maximum power dissipation of 1 watt for energy efficiency. Minimum DC current gain (hFE) of 180 for amplified performance.

High transition frequency of up to 400 MHz for high-speed circuits. Compact package dimensions optimized for PCB layout. Suitable for operation in environments up to 150°C. Three-pin configuration for standard electronic integration.

This bipolar transistor by ROHM is ideal for industrial, electronic manufacturing, communication, and automotive sectors, providing robust and efficient semiconductor performance. Discover more related semiconductor components and transistors at EnvMart.
