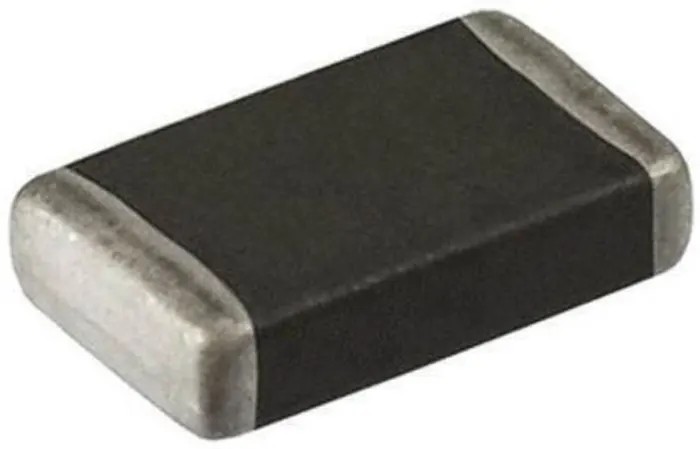

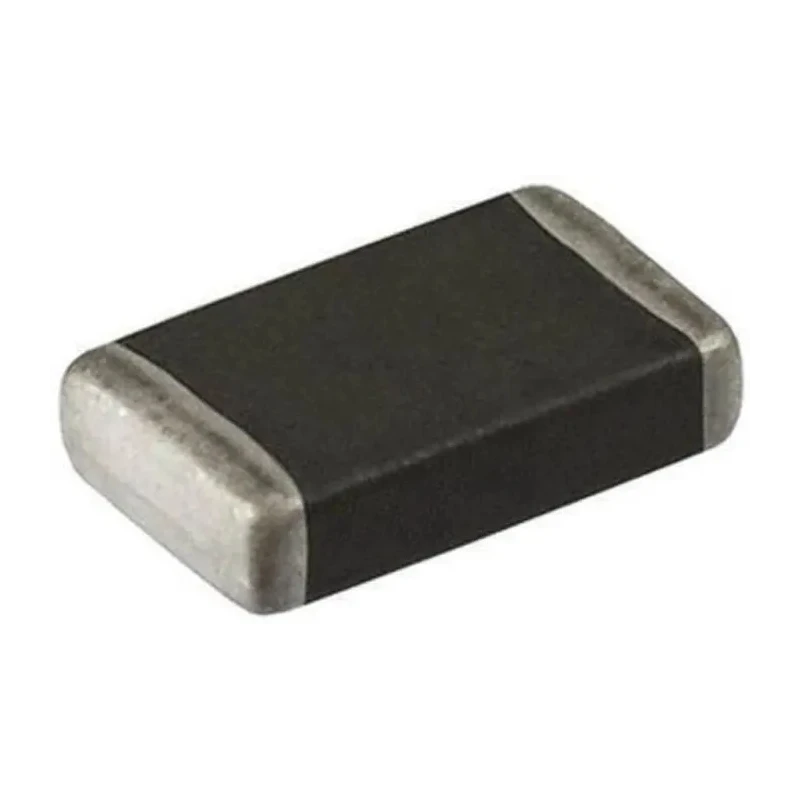

Murata Power Solutions 2016 Shielded Wirewound Surface Mount Inductor with Metal Alloy Core 10μH 1A 780mΩ DFE201610E

Murata Power Solutions DFE201610E is a high-performance shielded wirewound surface mount inductor featuring a miniature 2016 package size with a flat wire winding and metal alloy core. With its compact dimensions of 2.0 mm length, 1.6 mm depth, and a low profile maximum height of 1.0 mm, it provides excellent space saving for densely packed electronic assemblies.

This inductor is designed to carry a maximum DC current of 1 ampere with a maximum DC resistance of 780 milliohms, offering low power loss and efficient performance in power management circuits. Its shielded construction minimizes audible core noise and electromagnetic interference, making it ideal for sensitive electronic equipment.

The part is reflow solderable with surface mount termination style, facilitating easy and reliable mounting on PCBs in automated assembly lines. Constructed with a metal alloy core and flat wire winding, it ensures thermal and mechanical stability, suitable for operating in harsh environments with temperatures ranging from -40°C to +125°C.

Compliant with RoHS directives, the DFE201610E supports environmentally responsible designs. The product is packaged in an embossed tape format with a 180 mm diameter reel, suitable for use in high-volume manufacturing processes.

Miniature 2016 footprint (2.0mm x 1.6mm) and low profile (1.0mm max height). Magnetic iron powder core capable of handling large currents. Flat wire winding ensures low DC resistance for efficiency. Magnetically shielded for low audible core noise and minimal EMI.

Reflow solderable surface mount termination style. Operating temperature range from -40°C to +125°C. RoHS compliant for environmental safety. Packaged in 180 mm diameter embossed taping suitable for automated assembly.

Applications include industrial electronics, power supply designs, signal integrity circuits, and automotive electronics where miniaturization, reliability, low noise, and efficient current handling are critical. The DFE201610E is a versatile solution for engineers seeking a robust miniature surface mount inductor with dependable performance under varying electrical and environmental conditions.
