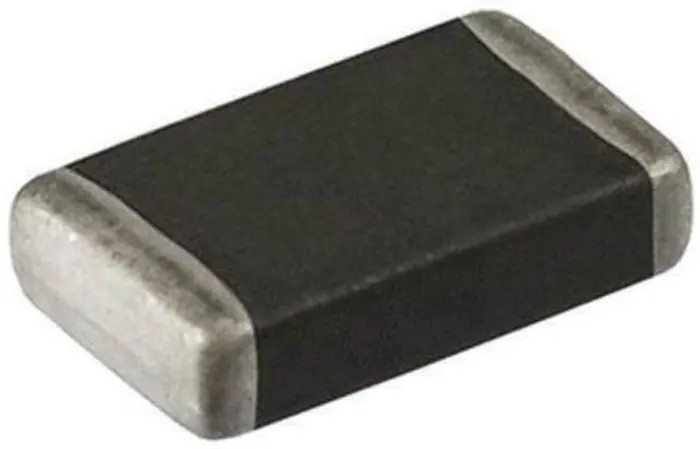

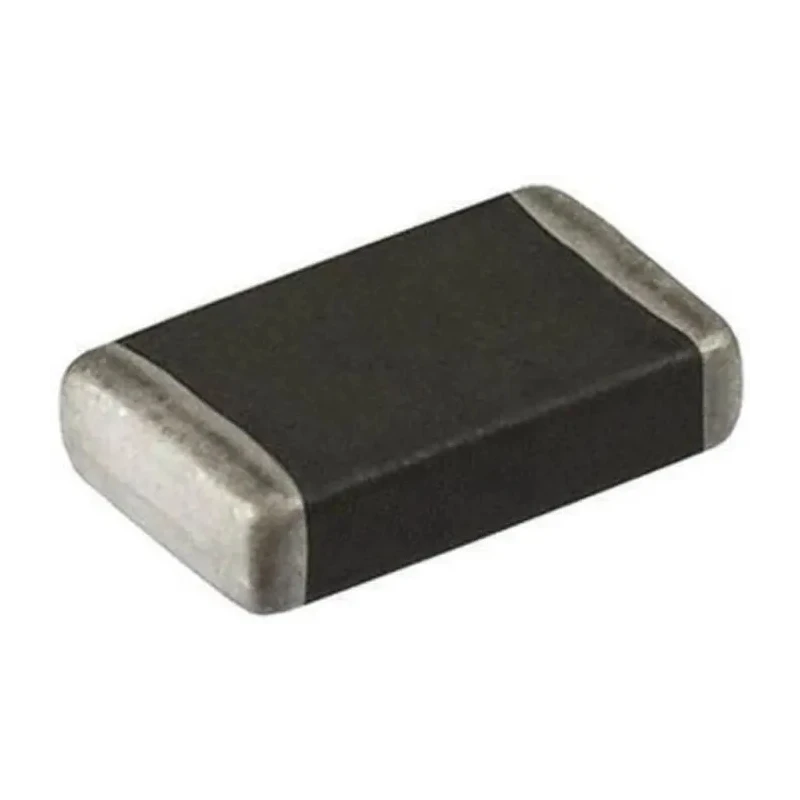

Murata Power Solutions 2016 Shielded Wirewound Surface Mount Inductor Metal Alloy Core 2.2 μH Flat DFE201610E

Free Delivery in India | Lowest Global Shipping Charges

Murata Power Solutions 2016 Shielded Wirewound Surface Mount Inductor Metal Alloy Core 2.2 μH Flat DFE201610E

Name: Murata Power Solutions 2016 Shielded Wirewound Surface Mount Inductor Metal Alloy Core 2.2 μH Flat DFE201610E
Brand: Murata Power Solutions
SKU: 147069
Price: 0.22 USD
Availability: InStock



Category Surface Mount Inductor Brand Murata Power Solutions Condition New

Specifications

Country of Origin	India
Brand	Murata Power Solutions
Operating Temperature	-40～+125°C
Height	1.2mm
Length	2mm
Model	DFE201610E
Depth	1.6mm
Packaging	180 mm Dia Embossed Taping
Series	DFE201610E
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Metal Alloy
Inductance	2.2μH
Standards/Approvals	RoHS
Package/Case	2016
Maximum DC Current	2.4A
Maximum DC Resistance	116mΩ
Inductance Tolerance	±20 %
Termination Style	Surface Mount
Inductor Construction	Flat Wire Winding
Miniature size	2016 footprint (2.0mmx1.6mm) and low profile(1.2mm Max. height)

Key Features

Provides low audible core noise due to magnetic shielding.
Features a flat wire winding design for low DC resistance.
Suitable for surface mount applications with 2016 package size.
Handles maximum DC current of 2.4 A with 116 mΩ resistance.
Operates reliably in temperatures ranging from -40°C to 125°C.
Complies with RoHS standards ensuring environmental safety.
Metal alloy core ensures high current capability and durability.
Designed with a low profile height of 1.2 mm and compact size of 2.0 mm by 1.6 mm footprint.

Product Description

Murata Power Solutions DFE201610E is a shielded wirewound surface mount inductor designed for electronic applications requiring reliable performance in compact spaces. It features a metal alloy core and a flat wire winding construction that reduces DC resistance, improving efficiency. The miniature 2016 package footprint measures 2.0 mm in length and 1.6 mm in depth, with a low profile height of 1.2 mm, facilitating integration in densely packed PCB assemblies.

Operating temperature ranges from -40°C to 125°C, supporting a wide array of industrial and commercial applications. The inductor is magnetically shielded to minimize electromagnetic interference and audible core noise, enhancing overall system performance. Its maximum DC current rating of 2.4 A with a DC resistance of only 116 mΩ makes it suitable for power management and filtering circuits.

The product is RoHS compliant, ensuring that it meets environmental and safety standards. Its surface mount termination style supports automated assembly processes, and the component is supplied on 180 mm diameter embossed taping reels, easing manufacturing handling.

Typical uses include power supply circuits, filtering, signal conditioning in industrial electronics, telecommunications equipment, and consumer devices requiring compact, efficient inductors.

Low audible core noise due to magnetic shielding ensures quieter operation. Compact 2016 footprint enables use in high-density PCB assemblies. Flat wire winding design lowers DC resistance for improved efficiency. Metal alloy core provides robustness and high current handling capability.

Wide operating temperature range from -40°C to 125°C for varied environments. Complies with RoHS environmental standards. Delivered on embossed taping for efficient PCB assembly. Suitable for broad industrial and commercial electronics applications.
