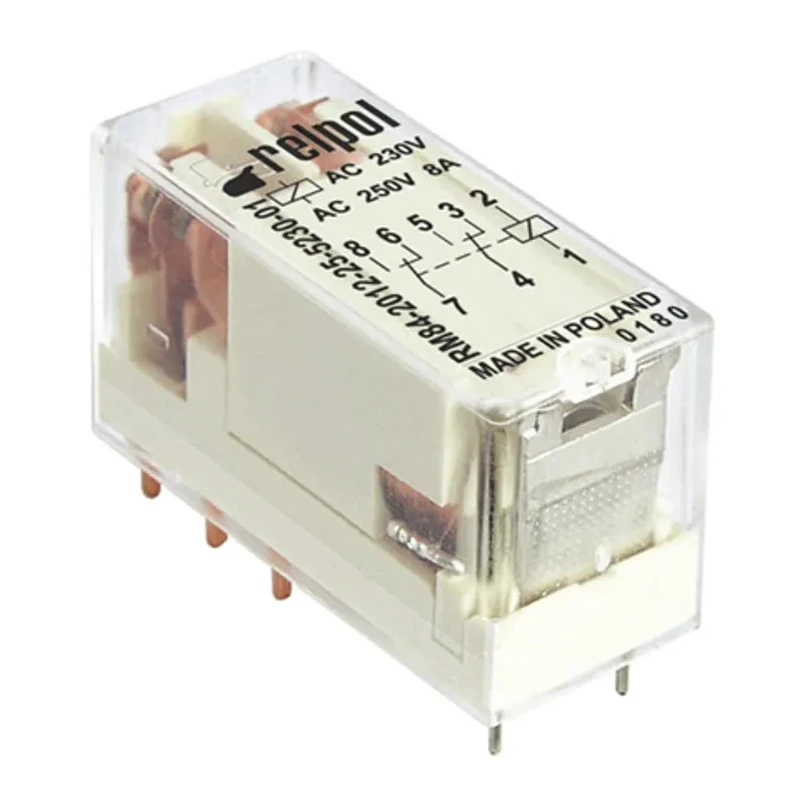

Relpol PCB Power Relay 230V AC Coil 8A Switching Current DPDT RM84-2012-35-5230

Free Delivery in India | Lowest Global Shipping Charges

Relpol PCB Power Relay 230V AC Coil 8A Switching Current DPDT RM84-2012-35-5230

Name: Relpol PCB Power Relay 230V AC Coil 8A Switching Current DPDT RM84-2012-35-5230
Brand: Relpol
SKU: 191747
Price: 10.18 USD
Availability: InStock



Category Power Relay Brand Relpol Condition New

Specifications

Country of Origin	Poland
Brand	Relpol
Height	15.7mm
Length	29mm
Model	RM84-2012-35-5230
Width	12.7mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	RM84
Maximum Operating Temperature	70°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	8A
Terminal type	Plug-In
Contact Resistance	100mΩ
Standards/Approvals	EAC, RoHS
Coil Resistance	38.5kΩ
Coil Voltage	230V ac
Switching DC Voltage	24V dc
Switching AC Voltage	440V
Coil Power	750mW

Key Features

Designed for PCB mounting with plug-in terminal type.
Capable of switching DC voltage up to 24V and AC voltage up to 440V.
Operates reliably between -40°C and 70°C operating temperature range.
Compact dimensions with length 29mm, width 12.7mm, and height 15.7mm for space-saving integration.
Silver alloy contacts provide low contact resistance and durability.
Coil power consumption is low at 750mW ensuring energy efficiency.
Coil resistance is 38.5kΩ for stable coil operation.
Certified to EAC and RoHS standards, ensuring compliance and safety.

Product Description

Relpol RM84-2012-35-5230 PCB Power Relay is a miniature industrial relay designed for general purpose applications requiring reliable switching on printed circuit boards. It features a 230V AC coil and DPDT contact configuration for versatile control in electrical and automation systems.

The relay supports switching currents up to 8A and can handle DC voltages up to 24V and AC voltages up to 440V, making it suitable for a wide range of industrial and commercial electronic controls.

Its compact size with dimensions 29mm length, 12.7mm width, and 15.7mm height allows efficient use of PCB space while maintaining robust performance. The device operates efficiently over a broad temperature range from -40°C to 70°C, ensuring reliability in varied environments.

Silver alloy contacts provide excellent conductivity and durability with low contact resistance of 100mΩ. The coil has a resistance of 38.5kΩ and consumes only 750mW, contributing to overall energy efficiency.

This relay complies with EAC and RoHS standards for safety and environmental considerations. Engineered and manufactured in Poland, it upholds strict quality control standards.

Relpol RM84 series relays are widely used in industrial automation, electrical control panels, HVAC systems, manufacturing machinery, and laboratory instrumentation, making them a versatile choice for electronic switching needs.

Designed for PCB mounting with plug-in terminals for easy installation. DPDT contact configuration suitable for multiple circuit applications. Wide operating temperature range ensures functional stability in harsh conditions.

Compact construction saves space on printed circuit boards. Energy-efficient coil with low power consumption. Robust silver alloy contacts guarantee reliable electrical performance. International standards compliance including EAC and RoHS.

Manufactured in Poland under stringent quality guidelines. Explore more Power Relays and electronic components to optimize your industrial and automation control projects at EnvMart.
