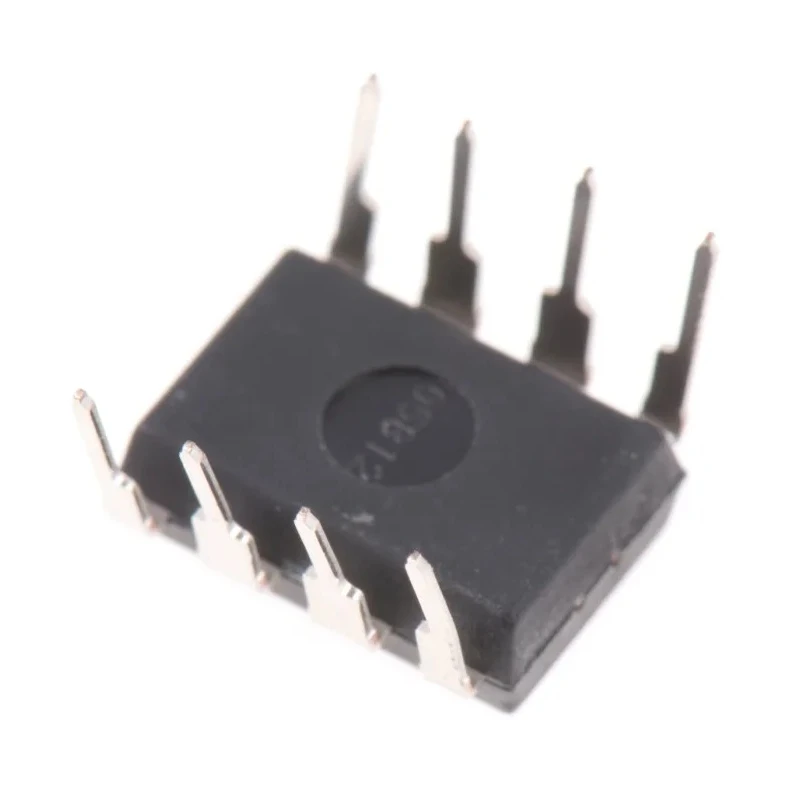

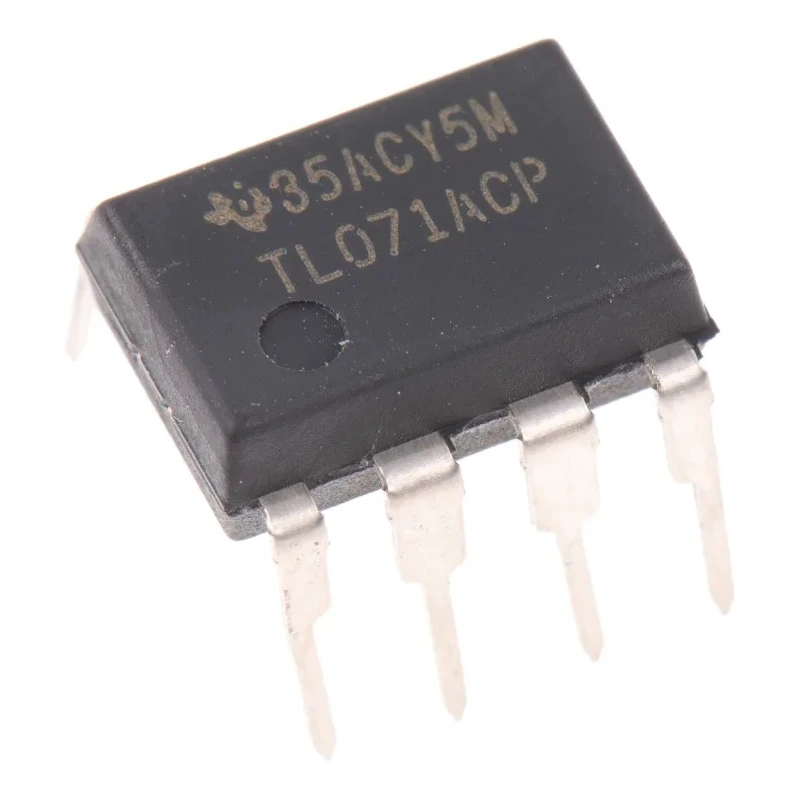

Texas Instruments Operational Amplifier 3 MHz Gain Bandwidth 8-Pin PDIP TL071ACP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | TL071ACP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Low Noise | 18nV/√Hz typical at 1 kHz |
| Series | TL071 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | ±5 nA |
| Vos - Input Offset Voltage | ±5 mV |
| Slew Rate | 13V/μs |
| Wide supply voltage range | ±5 to ±15V |
| High Slew Rate | 13 V/μs typical |
| Low Total Harmonic Distortion | 0.003% typical |
Key Features
- Single channel operational amplifier with low noise and distortion.
- Wide supply voltage range from ±5V to ±15V ensures versatility.
- Low input bias current of ±5 nA for minimal circuit loading.
- High slew rate of 13 V/μs for fast signal response.
- Compact 8-pin PDIP package with dimensions 9.81mm length and 6.35mm width.
- Operating temperature range from 0°C to 70°C suitable for industrial use.
- Low total harmonic distortion of 0.003% typical at 1 kHz.
- Includes offset voltage adjustment and external compensation options.
Product Description
Texas Instruments TL071ACP is a precision JFET input operational amplifier series member, known for its high gain bandwidth of 3 MHz and low noise, making it ideal for audio and signal processing applications in industrial and laboratory environments. The device is housed in an 8-pin PDIP through-hole package, measuring 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height.
Designed for applications requiring low noise and distortion, this amplifier supports a wide supply voltage range from ±5 V up to ±15 V. The operational amplifier features single channel configuration with 8 pins, incorporating low input bias current of ±5 nA and low input offset voltage of ±5 mV, ensuring high precision and minimal circuit interference.
With a slew rate of 13 V/μs and a low total harmonic distortion of 0.003% typical at 1 kHz, the TL071ACP provides fast and accurate amplification. It is capable of operating reliably between 0°C and 70°C, suitable for various industrial, laboratory, and electronic component manufacturing applications. Offset adjustment and external compensation options allow tuning for precision circuit requirements.
Single operational amplifier channel with JFET input. Wide operating voltage range for versatile use. Low noise and distortion for audio and signal processing. High slew rate enabling rapid signal response. Compact through-hole PDIP package.
Suitable operating temperature range. Low offset voltage and input bias currents for accuracy. Adjustment features for compensation and offset.
This Texas Instruments Operational Amplifier is an excellent choice for designers aiming for high-performance analog signal amplification in electronics, industrial instrumentation, and laboratory equipment circuits. Browse our Electronics & Electricals and Semiconductor categories to find complementary components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL071ACP has a gain bandwidth product of 3 MHz, making it suitable for a variety of signal processing applications.
It supports a wide supply voltage range from ±5 V to ±15 V, allowing for versatile applications in different circuits.
This model has dimensions of 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height, housed in an 8-pin PDIP package.
The TL071ACP features a low input bias current of ±5 nA, which minimizes circuit loading.
It operates reliably within a temperature range of 0°C to 70°C, making it suitable for industrial environments.
The slew rate is 13 V/μs, allowing for fast signal response in applications.
The amplifier has a low total harmonic distortion of 0.003% typical at 1 kHz, ensuring high fidelity in audio applications.
This operational amplifier uses a through-hole mounting type, making it suitable for various PCB designs.
It features a single channel configuration, which is typical for operational amplifiers used in many applications.
The input offset voltage is ±5 mV, which contributes to its high precision in amplification tasks.
It includes offset voltage adjustment and external compensation options for tuning precision in circuit applications.
The operational amplifier is manufactured in India, ensuring compliance with local manufacturing standards.
