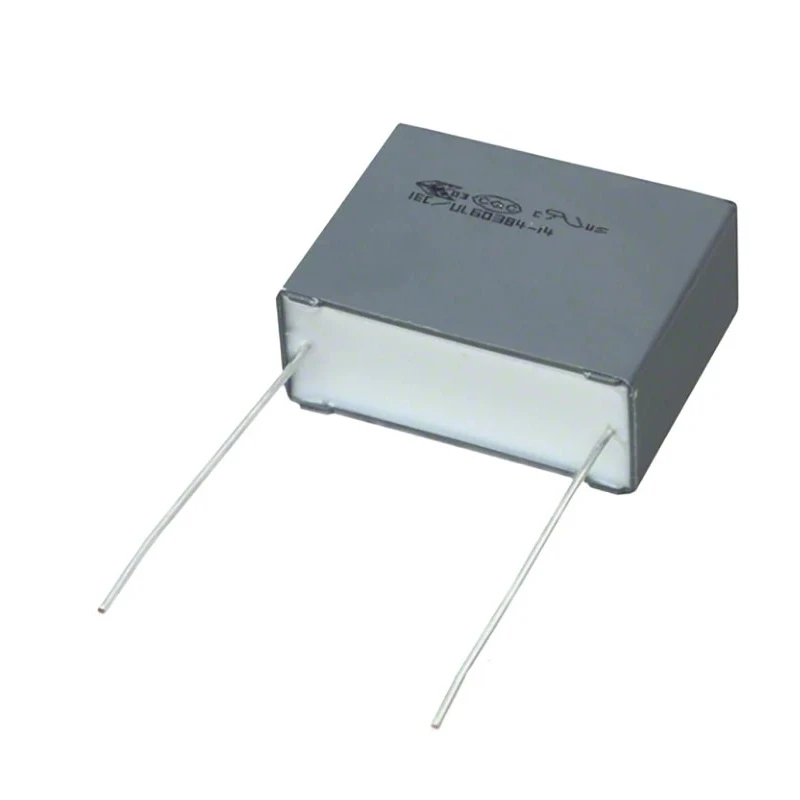

KEMET F863 Film Capacitor X2, ±10 % Tolerance, 470 nF Capacitance, 630 V DC, 310 V AC, Through Hole Mount F863DE474K310R
Specifications
| Country of Origin | China |
|---|---|
| Display | screen |
| Brand | KEMET |
| Height | 16mm |
| Length | 26.5mm |
| Model | F863DE474K310R |
| Approvals | ENEC, UL, cUL, CQC |
| Packaging | Ammo Pack |
| Width | 7mm |
| Mount Type | Through Hole |
| Series | F863 |
| Maximum Operating Temperature | 110°C |
| Tolerance | ±10 % |
| Capacitance | 470nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Radial |
| Dissipation Factor | 0.2% |
| Lead Length | 18.5mm |
| Standards/Approvals | CQC, cUL, ENEC, UL |
| Package/Case | Ammo Pack |
| Pin Count | 2 |
| Rated AC Voltage | 310V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
| Capacitance tolerance | ±20%, ±10% |
| Lead Spacing | 15.0 - 37.5 mm |
Key Features
- Constructed with metallized polypropylene film for excellent stability and performance.
- Rated with ±10 % tolerance ensuring precise capacitance values.
- Designed to meet AEC-Q200 automotive and ENEC, UL, cUL, CQC approvals.
- Suitable for harsh environments with an operating temperature range from -40°C to 110°C.
- Equipped with radial terminals and supplied in ammo pack packaging.
- Lead pitch measures 22.5 mm with 0.8 mm lead diameter for through-hole mounting.
- Dissipation factor of 0.2% provides low energy loss during operation.
- 100% screened factory test at 1,900 V DC voltage for quality assurance.
Product Description
KEMET F863DE474K310R is a high-quality F863 series film capacitor designed for EMI suppression and industrial electronic applications. This capacitor features a metallized polypropylene film encapsulated in a self-extinguishing box material compliant with UL 94 V-0, providing enhanced safety and durability in demanding environments.
It offers a capacitance of 470 nF with a tolerance of ±10 % and operates reliably within a temperature range of -40°C to 110°C. Rated at 630 V DC and 310 V AC, this capacitor is ideal for use in automotive electronics due to its compliance with the AEC-Q200 qualification standards.
Its construction includes radial terminals with a lead pitch of 22.5 mm and a lead length of 18.5 mm, facilitating secure through-hole mounting on PCBs. The design includes a dissipation factor of 0.2% to minimize energy losses and improve efficiency.
Approvals such as ENEC, UL, cUL, and CQC attest to the product's certification and reliability for industrial and commercial electronics use. Supplied in ammo pack packaging, it is suitable for automated assembly and high-volume manufacturing.
This film capacitor is widely applicable in industrial machinery, automotive systems, power electronics, and EMI/RFI suppression circuits where stable capacitor performance and safety compliance are critical.
Constructed with metallized polypropylene film and self-extinguishing resin box material. Capacitance tolerance of ±10 % with rated voltages of 630 V DC and 310 V AC. Meets AEC-Q200 automotive standards and carries ENEC, UL, cUL, and CQC approvals.
Operating temperature range of -40°C to 110°C for harsh conditions. Radial lead type with 22.5 mm pitch suitable for through-hole PCB mounting. Dissipation factor of 0.2% ensures low energy loss during operation. Supplied as ammo pack for efficient handling and assembly.
The KEMET F863DE474K310R capacitor is an optimal choice for engineers and technicians working in industrial electronics, automotive design, and EMC compliance projects. Its rugged construction and certifications ensure performance and safety in demanding electronic applications.
Browse other high-performance Film Capacitors and electronic components at EnvMart for all your industrial and commercial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 470 nF.
It is rated for 630 V DC and 310 V AC.
The operating temperature range is from -40°C to 110°C.
This capacitor supports through-hole mounting with radial terminals.
The lead pitch is 22.5 mm and the lead diameter is 0.8 mm.
It carries approvals from ENEC, UL, cUL, and CQC, ensuring compliance with relevant safety standards.
The dissipation factor is 0.2%, which helps minimize energy loss during operation.
It is supplied in ammo pack packaging, suitable for efficient handling and automated assembly.
This model meets the AEC-Q200 automotive standard, making it suitable for automotive applications.
The dimensions are 26.5 mm in length, 7 mm in width, and 16 mm in height.
It is suitable for industrial machinery, automotive systems, power electronics, and EMI/RFI suppression circuits.
The capacitance tolerance is ±10%.
