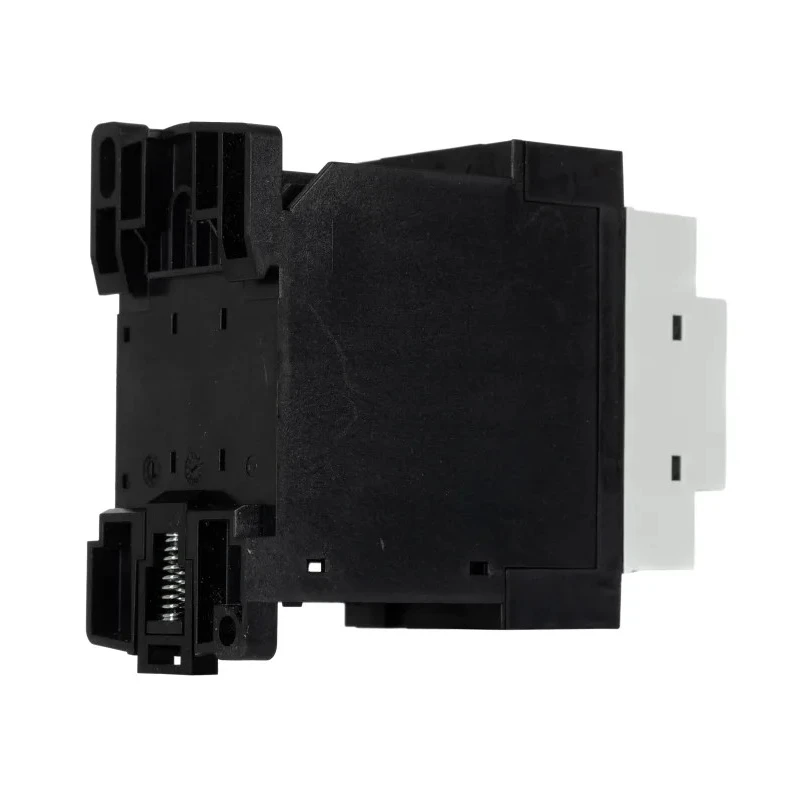

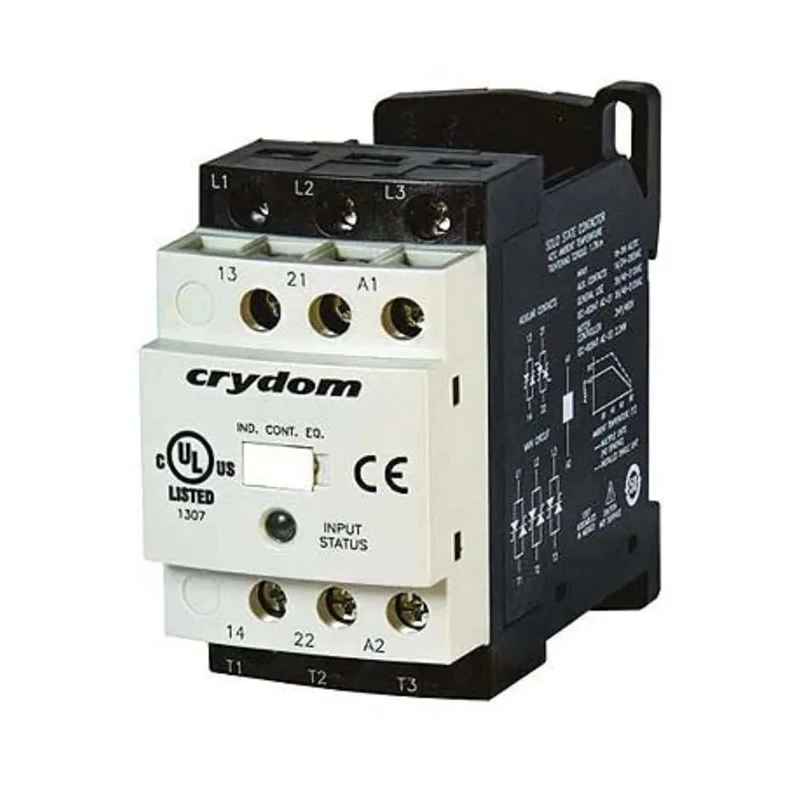

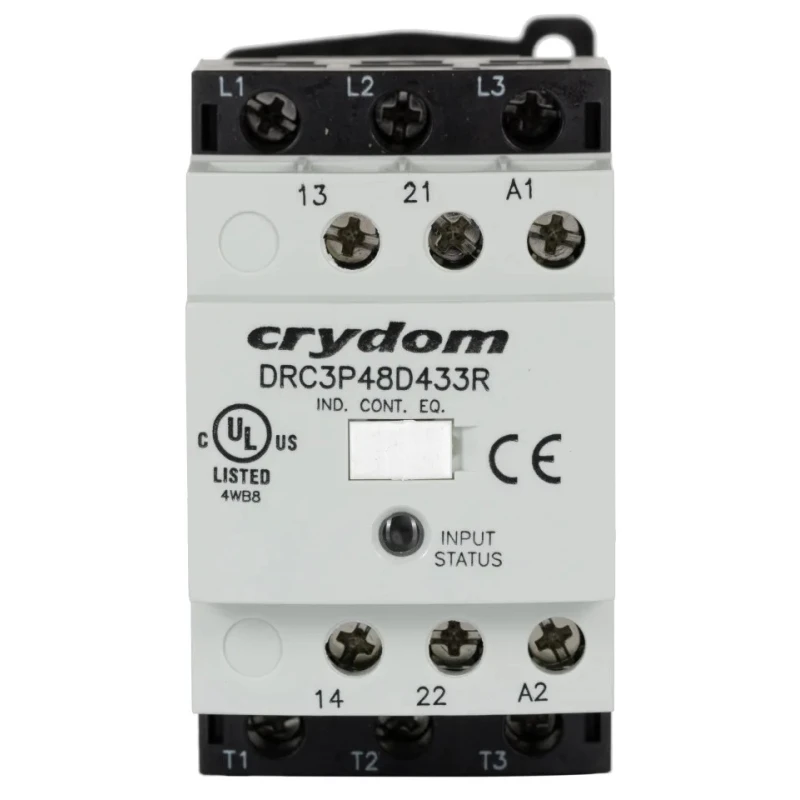

Crydom Solid State Contactor 3-Pole 500 mA 18V dc Control, 480V ac Contact Voltage DRC3P48D433R
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Function | Reversing |
| Length | 45.3mm |
| Model | DRC3P48D433R |
| Depth | 95.6mm |
| Width | 86.7mm |
| Mount Type | DIN Rail |
| Series | DRC |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | RoHS |
| Contact Voltage | 480V ac |
| Contact Current | 500mA |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32mA |
| Control Circuit Voltage Uc | 18V dc |
| Pole and Throw Configuration | SPDT |
Key Features
- Designed for DIN rail mounting for quick and secure installation.
- Features 1 NO and 1 NC auxiliary contacts for flexible control configurations.
- Equipped with screw terminal type for robust electrical connections.
- Wide operating temperature range from -20°C to 60°C ensures dependable performance in harsh environments.
- Compact dimensions maximize DIN rail space efficiency with 95.6mm depth, 45.3mm length, and 86.7mm width.
- Solid-state design ensures silent operation with no moving parts, minimizing wear and extending operational life.
- Integrated overvoltage protection enhances circuit safety against electrical surges.
- Suitable for rapid switching applications with maximum frequency up to 9000 cycles per hour.
Product Description
Crydom DRC3P48D433R Solid State Contactor is a high-performance electrical component designed for fast and reliable switching in industrial automation systems. It is a 3-pole reversing contactor capable of handling contact currents of 500 mA with control circuit voltage of 18V DC and contact voltage rating of 480V AC.
This unit features a DIN rail mount type, allowing for rapid installation in control panels and automation equipment. Its solid-state design means there are no moving mechanical parts, resulting in silent operation and significantly reduced wear and maintenance needs.
The compact dimensions of 95.6mm depth, 45.3mm length, and 86.7mm width optimize space usage on DIN rails. Equipped with 1 normally open (NO) and 1 normally closed (NC) auxiliary contacts, it offers enhanced flexibility for control logic integration. Screw terminals provide robust and secure electrical connections suitable for industrial environments.
Engineered to operate reliably under a wide temperature range from -20°C up to 60°C, this contactor can be employed in various harsh or fluctuating ambient conditions. Its thermoplastic housing offers excellent electrical insulation, contributing to the overall safety of installations. Additionally, built-in overvoltage protection safeguards connected circuits from voltage spikes, enhancing longevity and reliability of the system.
DIN rail mounting for ease of installation. Solid-state technology for silent and durable operation. Wide operating temperature range from -20°C to 60°C. Auxiliary contact configuration with 1 NO/1 NC contacts. Compact footprint preserving control panel space.
Screw terminal connections for secure wiring. Compliance with RoHS environmental standards. Suitable for high-speed motor control and lighting systems. Instantaneous turn-on functionality for precise switching. Manufactured in Mexico ensuring quality craftsmanship.
This solid-state contactor is ideal for industrial, commercial, and manufacturing applications including packing machinery, lighting control, and three-phase motor switching. Its fast switching frequency (up to 9000 cycles per hour) and reversing function make it a versatile solution for automation needs.
Explore other Crydom Contactors and automation control gear at EnvMart for comprehensive system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact voltage rating is 480V AC.
The control circuit voltage is 18V DC.
The maximum operating temperature is 60°C.
The minimum operating temperature is -20°C.
The dimensions are 45.3mm in length, 86.7mm in width, and 95.6mm in depth.
This model has 3 poles.
It uses DIN rail mounting for installation.
The maximum contact current is 500 mA.
The auxiliary contact configuration includes 1 normally open (NO) and 1 normally closed (NC) contact.
The operational current is 32 mA.
It includes built-in overvoltage protection to safeguard against voltage spikes.
Yes, it complies with RoHS environmental standards.
