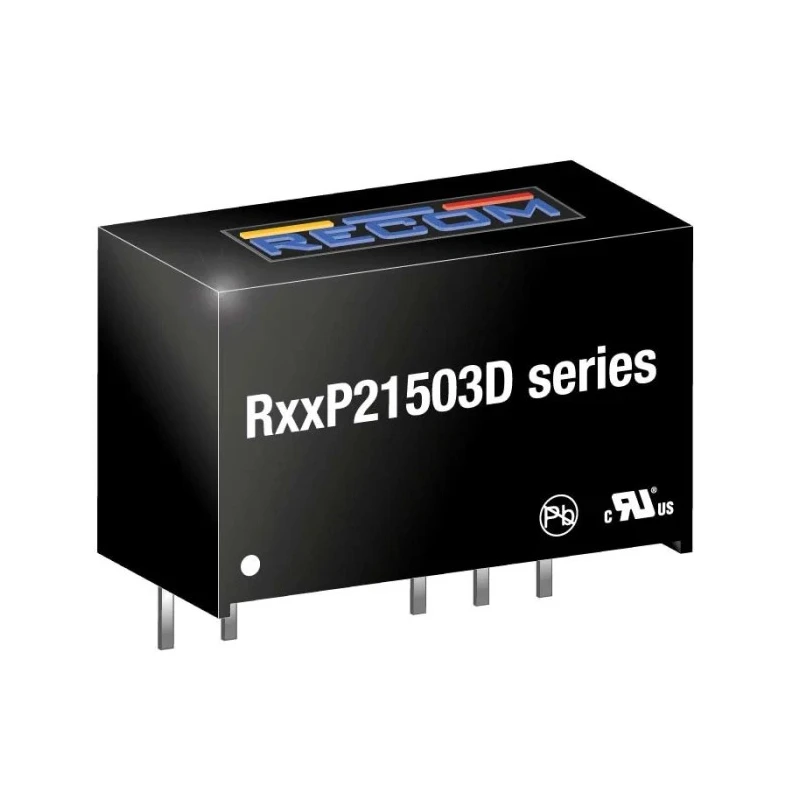

Recom DC/DC Converter 15 V Output 2 W Through Hole SIP-7 R24P21503D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom R24P DC/DC Converter, 15V/ 66 mA, 26 |
| Brand | Recom |
| Efficiency | 82% |
| Length | 19.65mm |
| Model | R24P21503D |
| Depth | 10.2mm |
| Width | 7.05mm |
| Mount Type | Through Hole |
| Series | R24P |
| Maximum Operating Temperature | 95°C |
| Package Type | SIP-7 |
| Minimum Operating Temperature | -40°C |
| MTBF | 4000000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 26.4V |
| Minimum Input Voltage | 21.6V |
| Output Voltage 1 | 15V |
| Output Current 1 | 66mA |
| Isolation Voltage | 6.4kV |
| Output Current 2 | 333mA |
| Output Voltage 2 | -3V |
Key Features
- Provides a stable 15 V output voltage with up to 66 mA current.
- Operates from a wide input voltage range between 21.6 V and 26.4 V.
- Maximum operating temperature of 95 °C and minimum temperature of -40 °C.
- Features high isolation voltage of 6.4 kV ensuring electrical safety.
- Compact SIP-7 package type suitable for through-hole mounting.
- Efficiency rating of 82% for energy-saving operation.
- Mean time between failures (MTBF) is 4,000,000 hours indicating high reliability.
- Designed to fulfill requirements for isolated asymmetric supplies in SiC transistor drivers.
Product Description
Recom R24P21503D is a high-performance DC/DC Converter delivering a 15 V output voltage at 2 W power with a robust through-hole SIP-7 package design. It operates efficiently with an input voltage range between 21.6 V minimum and 26.4 V maximum, tailored for demanding electronic applications.
This converter features a wide operating temperature range from -40 °C up to 95 °C, suitable for harsh environmental conditions. It offers outstanding electrical isolation with a 6.4 kV isolation voltage rating, making it ideal for applications requiring stringent safety and noise immunity.
With an efficiency rating of 82%, this module ensures energy-efficient power conversion, reducing heat dissipation and improving system reliability. The MTBF of 4,000,000 hours reflects its long operational life and robustness. The SIP-7 form factor with dimensions of 19.65 mm length, 10.2 mm depth, and 7.05 mm width allows easy integration in compact designs using through-hole mounting techniques.
Engineered primarily to supply isolated asymmetric voltages required by high slew rate silicon carbide (SiC) transistor drivers, the Recom R24P21503D converter excels in industrial, laboratory, power supply, and electronic device manufacturing contexts. It supports high isolation voltage combined with low capacitance, meeting critical design requirements.
Stable 15 V output voltage with 66 mA output current. Input voltage range: 21.6 V to 26.4 V ensures wide compatibility. 6.4 kV isolation voltage for enhanced safety. High efficiency at 82% to reduce power loss. Durable operation across -40 °C to 95 °C temperature range.
Compact SIP-7 package for through-hole mounting. Long MTBF of 4,000,000 hours for reliability. Application in SiC transistor driver power supplies. Dimensions enable compact, space-saving integration.
The product is manufactured in Taiwan, Province Of China, maintaining quality standards for global industrial applications. It is a trusted DC/DC converter solution for power electronics, automation, and control systems. Browse more DC/DC Converters and related power components on EnvMart for reliable industrial grade choices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 15 V with a maximum output current of 66 mA.
It operates with an input voltage range between 21.6 V and 26.4 V.
The maximum operating temperature is 95 °C.
It features a high isolation voltage of 6.4 kV, ensuring electrical safety.
This converter has an efficiency rating of 82%, which helps in reducing power loss.
The dimensions of the SIP-7 package are 19.65 mm in length, 10.2 mm in depth, and 7.05 mm in width.
The minimum operating temperature is -40 °C, making it suitable for harsh environments.
The MTBF is 4,000,000 hours, indicating high reliability.
It is designed for through-hole mounting, suitable for compact designs.
This model is engineered primarily for supplying isolated asymmetric voltages required by SiC transistor drivers, and is suitable for industrial and laboratory applications.
It is manufactured in Taiwan, maintaining quality standards for global industrial applications.
This unit has one output, providing a single output voltage of 15 V.
