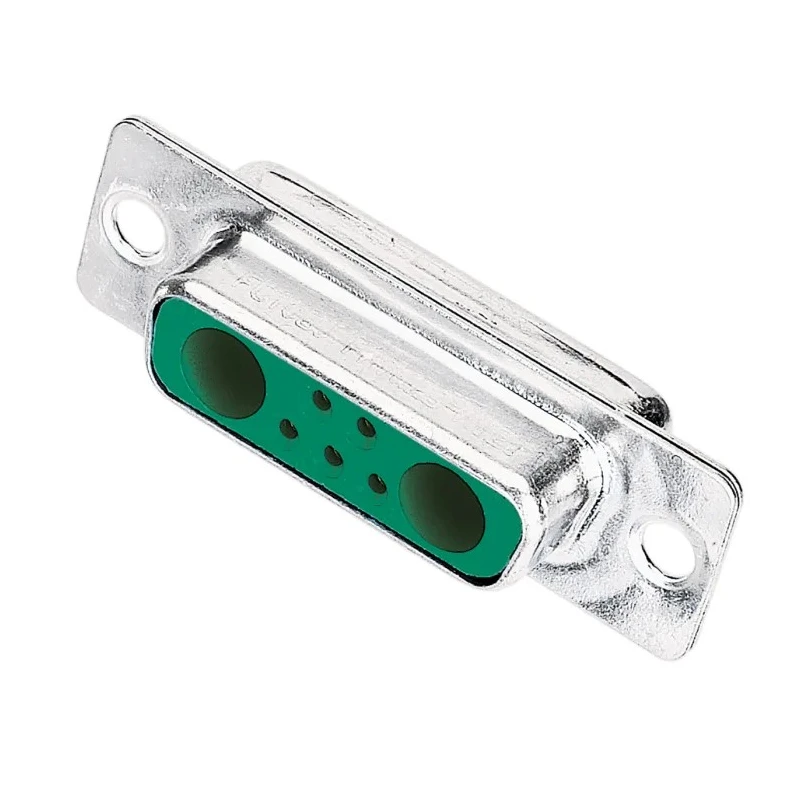

HARTING 7W2 7 Way Straight 2.84 mm Pitch Panel Mount D-Sub Connector with Flange Female 09692015072
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Panel Mount |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 7W2 |
| Mounting Hardware | Flange |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.84mm |
| Contact Plating | Tin |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
Key Features
- Features 7 contacts with a 2.84 mm pitch for precision connectivity.
- Female connector type with flange mounting for secure panel attachment.
- Constructed with fibreglass reinforced thermoplastic housing for durability.
- Supports a maximum current of 5A ensuring stable electrical performance.
- Operating temperature range from -55°C to 125°C for harsh environments.
- Contact material is copper alloy plated with tin for corrosion resistance.
- Shell plated steel with flange through hole of 3.1 mm for mounting hardware compatibility.
- Solder termination type with pre-mounted signal solder cup contacts for ease of assembly.
Product Description
HARTING 09692015072 is a 7 Way Straight Panel Mount D-Sub Connector with a precise 2.84 mm pitch, engineered for robust industrial, manufacturing, and electronic applications where reliable electrical connections are critical.
This female connector comes with a durable fibreglass reinforced thermoplastic housing and features flange mounting hardware, ensuring secure attachment to panels and enclosures. The connector supports a current rating of 5 amperes, catering to medium power electronic circuits and control systems.
Operating under a wide temperature range from -55°C to 125°C, it is suited for harsh environments including industrial automation and HVAC systems. The copper alloy contacts are plated with tin providing excellent conductivity and resistance to corrosion, enhancing long-term performance.
The connector utilizes solder termination type with pre-mounted signal solder cup contacts facilitating reliable and efficient assembly onto PCBs or wiring harnesses. The shell is plated steel with a flange through hole diameter of 3.1 mm aligning with common mounting requirements.
This product conforms to DIN 41 652 T1 standards guaranteeing compatibility and safety compliance. Originating from Germany, the connector meets stringent manufacturing quality and is supplied new for immediate industrial usage.
Features 7 contacts with 2.84 mm pitch precision. Female orientation with flange panel mount hardware. Fibreglass reinforced thermoplastic housing enhances durability. Supports 5A current capacity for reliable electrical flow.
Wide operating temperature range: -55°C to 125°C. Copper alloy contacts with tin plating resist corrosion. Solder termination with pre-mounted signal solder cup contacts. Plated steel shell with flange hole size 3.1 mm. Meets DIN 41 652 T1 standard requirements.
Ideal for industrial, manufacturing, electronic, HVAC, and automation sectors. Manufactured in Germany under strict quality controls. Explore more high-quality connectors in the Electronics & Electricals category at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 5A, ensuring stable electrical performance for medium power electronic circuits.
The connector operates within a temperature range of -55°C to 125°C, making it suitable for harsh environments.
It features a fibreglass reinforced thermoplastic housing and copper alloy contacts plated with tin for corrosion resistance.
This D-Sub connector has 7 contacts arranged with a pitch of 2.84 mm for precision connectivity.
It utilizes a solder termination type with pre-mounted signal solder cup contacts for ease of assembly.
This model features flange mounting, which ensures secure attachment to panels and enclosures.
The flange through hole has a diameter of 3.1 mm, aligning with common mounting hardware requirements.
Yes, it is ideal for industrial, manufacturing, electronic, HVAC, and automation sectors due to its robust design and specifications.
This product conforms to DIN 41 652 T1 standards, ensuring compatibility and safety compliance.
It is manufactured in Germany under strict quality controls, ensuring high manufacturing standards.
This connector is a female type, designed for compatibility with corresponding male connectors.
The shell is made of plated steel, providing additional strength and durability for the connector.
