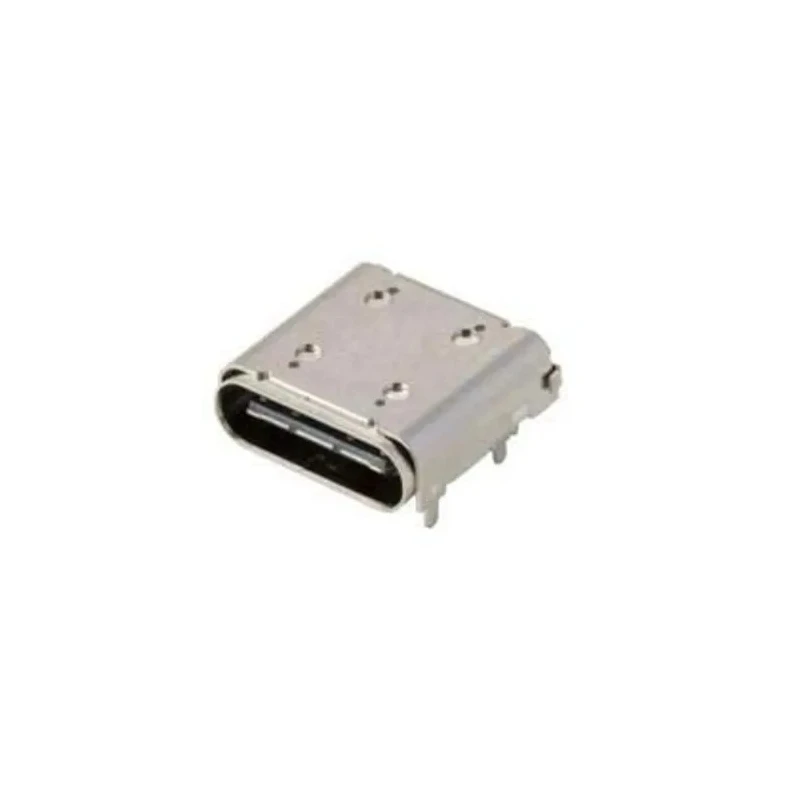

Amphenol Communications Solutions Right Angle Surface Mount Female USB Type C USB 3.1 Connector 100V 5A 10137062-00021LF

Name: Amphenol Communications Solutions Right Angle Surface Mount Female USB Type C USB 3.1 Connector 100V 5A 10137062-00021LF
Brand: Amphenol Communications Solutions
SKU: 145997
Price: 3.05 USD
Availability: InStock



Category USB Connector Brand Amphenol Communications Solutions Condition New

Specifications

Country of Origin	China
Voltage	100V
Brand	Amphenol Communications Solutions
Orientation	Right Angle
Current	5A
Model	10137062-00021LF
Mount Type	Surface
Contact Material	Copper Alloy
Series	101xxxxx-0001LF
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-55°C
USB Type	USB Type C
Connector Gender	Female
USB Specification	USB 3.1

Key Features

Supports a current rating of 5A for efficient power transfer.
Operates at a maximum voltage of 100V ensuring compatibility with standard electronic devices.
Designed with copper alloy contact material for reliable conductivity.
Temperature range from -55°C to 85°C for durable operation under various environmental conditions.
Termination type is solder, supporting secure and robust PCB mounting.
USB 3.1 Type C Gen 1 standard supports data transfer speeds up to 5Gb/s.
Right angle orientation assists in compact device assembly and space saving.
RoHS compliant and lead-free construction suitable for environmentally conscious manufacturing.

Product Description

Amphenol Communications Solutions 10137062-00021LF is a high-quality right angle surface mount female USB Type C connector conforming to the USB 3.1 specification. It supports a current rating of 5A and voltage up to 100V, making it ideal for a wide range of electronic applications requiring reliable data and power connectivity.

This connector is manufactured with copper alloy contacts ensuring excellent conductivity and durability. Featuring a solder termination type, it is suitable for secure PCB surface mounting. The module performs reliably in a wide temperature range from -55°C to 85°C, accommodating demanding industrial and commercial environments.

The USB 3.1 Type C Gen 1 interface provides fast data transfer speeds up to 5Gb/s and supports power delivery up to 100W, enabling multifunctionality for data, power, audio, and video over a single cable. The right angle design is particularly useful for compact device layouts, saving PCB space and enhancing assembly efficiency. This connector is RoHS compliant and lead-free, aligning with environmental standards.

It is tailored for emerging product designs that require the latest USB technology in a small form factor, making it suitable for applications in electronics components manufacturing, power connectors, and consumer electronics devices. The interconnection technology minimizes user waiting time and supports quick and easy connections regardless of insertion orientation.

Supports current of 5A for power delivery. Voltage rating of 100V for safe electronic operations. Copper alloy contacts for reliable and long-lasting connectivity. Wide operating temperature range ensuring durability. Solder termination type for stable PCB mounting.

Compliant with USB 3.1 Type C Gen 1 specification supporting up to 5Gb/s transfer speed. Right angle orientation to optimize PCB space. RoHS compliant and lead-free design. Multifunctional single cable solution for data, power, audio, and video.

Ideal for modern electronics manufacturing and device design.

This USB connector from Amphenol Communications Solutions is a dependable choice for engineers and manufacturers seeking advanced and compact USB Type C connectivity. Explore more products in the USB Connectors category at EnvMart for comprehensive solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports a maximum current rating of 5A, ensuring efficient power transfer for various applications.

It operates at a maximum voltage of 100V, making it compatible with standard electronic devices.

The operating temperature range for this unit is from -55°C to 85°C, allowing for reliable performance in diverse environmental conditions.

It features a solder termination type, which supports secure and robust PCB mounting.

This connector supports data transfer speeds of up to 5Gb/s, conforming to the USB 3.1 Type C Gen 1 specification.

The connector is designed with a right angle orientation, which helps in optimizing PCB space and enhancing assembly efficiency.

The contacts are made from copper alloy, ensuring reliable conductivity and durability.

Yes, it is RoHS compliant and lead-free, suitable for environmentally conscious manufacturing practices.

This model has a single port configuration, designed for straightforward connectivity.

The country of origin for this unit is China.

The model number for this connector is 10137062-00021LF, which identifies its specific features and specifications.

It is suitable for various electronic applications requiring reliable data and power connectivity, including consumer electronics and industrial devices.
