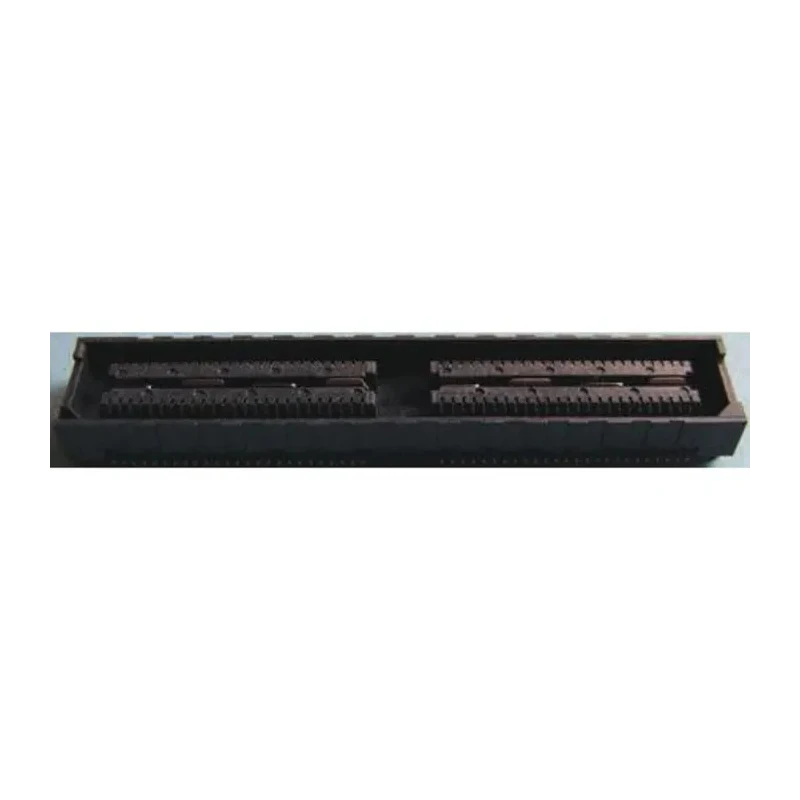

Samtec QSS Series Straight Surface PCB Socket 100-Contact 2 Row 0.635mm Pitch Solder QSS-050-01-L-D-A

The Samtec QSS-050-01-L-D-A is a part of the QSS Series, representing a high-quality straight surface PCB socket designed for board-to-board connection applications. This socket accommodates 100 contacts arranged in two rows with a pitch of 0.635 mm, ideal for compact and high-density PCB designs.

Manufactured using liquid crystal polymer as the housing material, it provides excellent mechanical strength and stability under thermal stress. The contact terminals are made from bronze with gold plating to ensure optimal electrical conductivity and resistance to oxidation, thereby ensuring long-lasting durability in industrial and commercial environments.

The device is designed for surface mount technology with solder termination and straight orientation, simplifying PCB assembly processes and ensuring secure and reliable electrical connections.

With a current rating of 1.1 amperes and a voltage rating of 285 volts, this PCB socket suits a broad range of electronic circuit applications, including telecommunications, data communication interfaces, industrial control systems, and other electronic devices requiring high-speed communication interfaces.

The product operates efficiently in harsh environments with an operating temperature range from -55°C to 125°C, supporting use in industrial, manufacturing, and laboratory settings. The row pitch of 5.73 mm complements the pitch spacing, enabling easy integration into existing PCB designs.

Features 100 contacts arranged in 2 rows for dense interconnections. Pitch between contacts is 0.635 mm, supporting fine-pitch PCB designs. Constructed from liquid crystal polymer housing material ensuring durability. Gold-plated bronze contacts offer excellent conductivity and corrosion resistance.

Designed for surface mount solder termination with a straight orientation. Rated for 1.1 A current and 285 V voltage, suitable for moderate power circuits. Operates reliably across a wide temperature range from -55°C to 125°C.

Row pitch spacing of 5.73 mm facilitates compatibility with various PCB layouts.

This PCB socket is essential in electronics assembly for ensuring rapid, reliable connections between printed circuit boards in commercial, industrial, and telecommunication applications. It supports high-speed transmission and maintains signal integrity in complex electronic systems.
