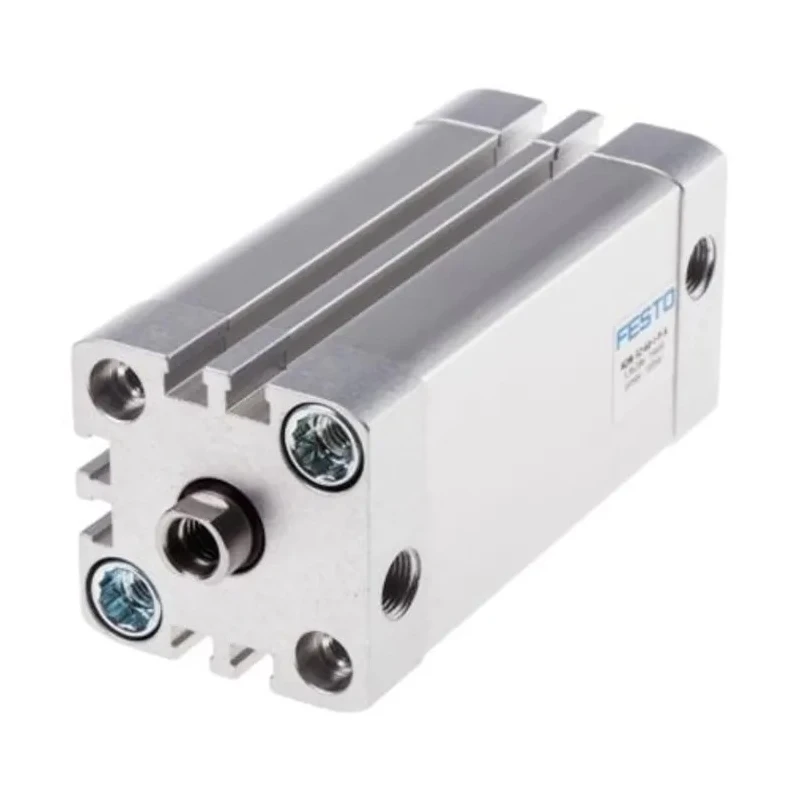

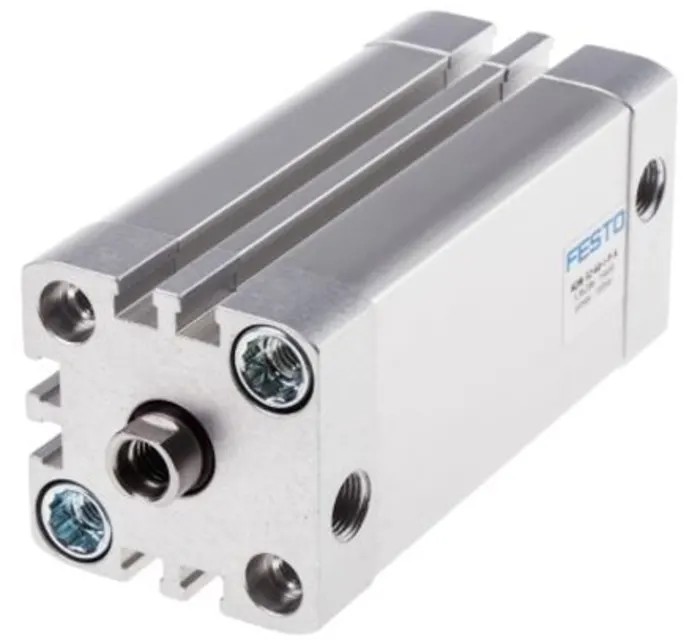

Festo Pneumatic Cylinder ADN Series Double Acting 50mm Bore 25mm Stroke Aluminium Body ADN-50-25-I-PPS-A

Festo ADN-50-25-I-PPS-A pneumatic cylinder from the ADN series is a compact, double acting pneumatic actuator with a bore diameter of 50mm and a stroke length of 25mm. Constructed with a robust aluminium body, this cylinder is engineered for industrial applications requiring precise linear motion in confined spaces.

The double acting design allows air to be applied to both sides of the piston for controlled extension and retraction. Air cushioning built into the cylinder reduces noise and vibration, enhancing the service life and operational efficiency of automated machinery.

Compliant with ISO 21287 standards, the ADN series cylinders provide reliable performance and ease of integration into existing pneumatic systems. The single piston rod features a female thread of 1/8 in G size and accommodates magnetic piston rods for non-contact position sensing via flush-mounted proximity sensors.

This cylinder supports installation in both horizontal and vertical orientations with optional mounting accessories including swivel brackets and foot mounts, adding to system flexibility. Operating temperature range spans from -20°C to 80°C, making it suitable for varied industrial environments.

With a maximum operating pressure of 10 bar, the cylinder supports robust industrial fluid power applications, including manufacturing automation, process control, packaging, material handling, and laboratory automation.

The cylinder body is made from lightweight aluminium for durability and corrosion resistance. Features a double acting mechanism with twin ports for extending and retracting the piston rod. Equipped with air cushioning to reduce noise and vibration during operation.

Complies with ISO 21287 standard ensuring quality and interchangeability. Suitable for horizontal or vertical mounting applications with accessory mounting options. Operates efficiently within -20°C to 80°C temperature range.

Maximum operating pressure of 10 bar allows robust pneumatic performance. Includes magnetic piston rod for contactless position detection using proximity sensors. Compact dimensions enable use in space-constrained industrial automation environments.

Designed and manufactured in Turkey with RoHS compliance.

For industrial professionals requiring reliable, compact pneumatic actuators, the Festo ADN-50-25-I-PPS-A cylinder offers a proven solution. Explore other Pneumatic Cylinders in EnvMart's extensive catalog for complementary components and accessories.
