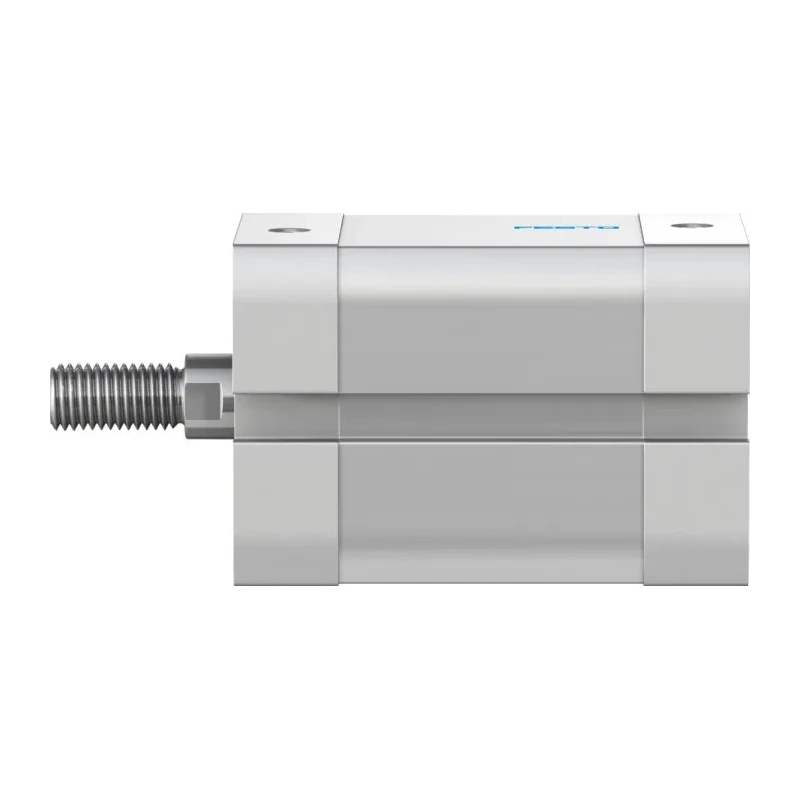

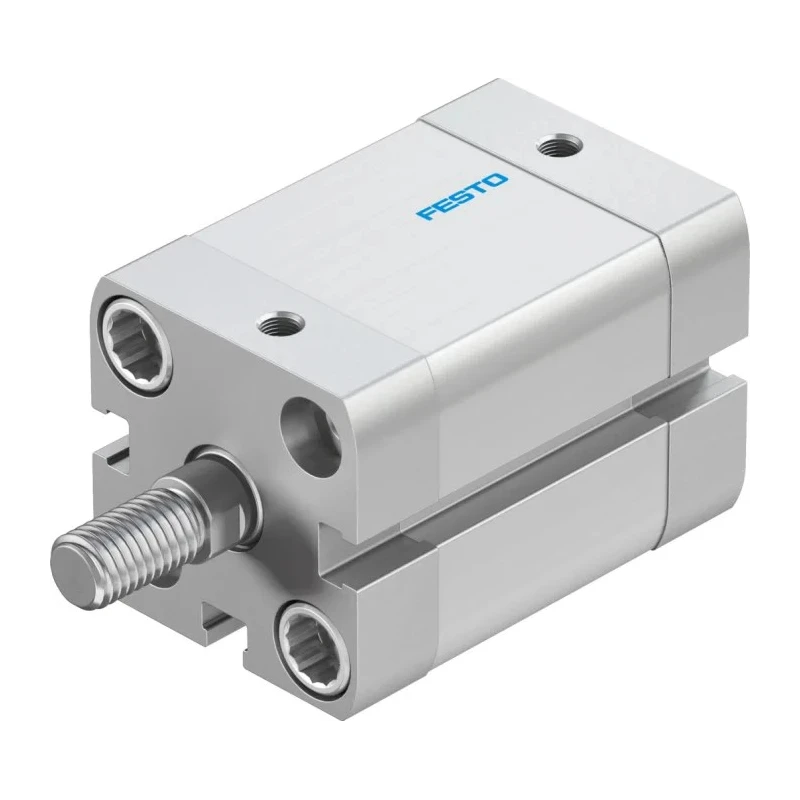

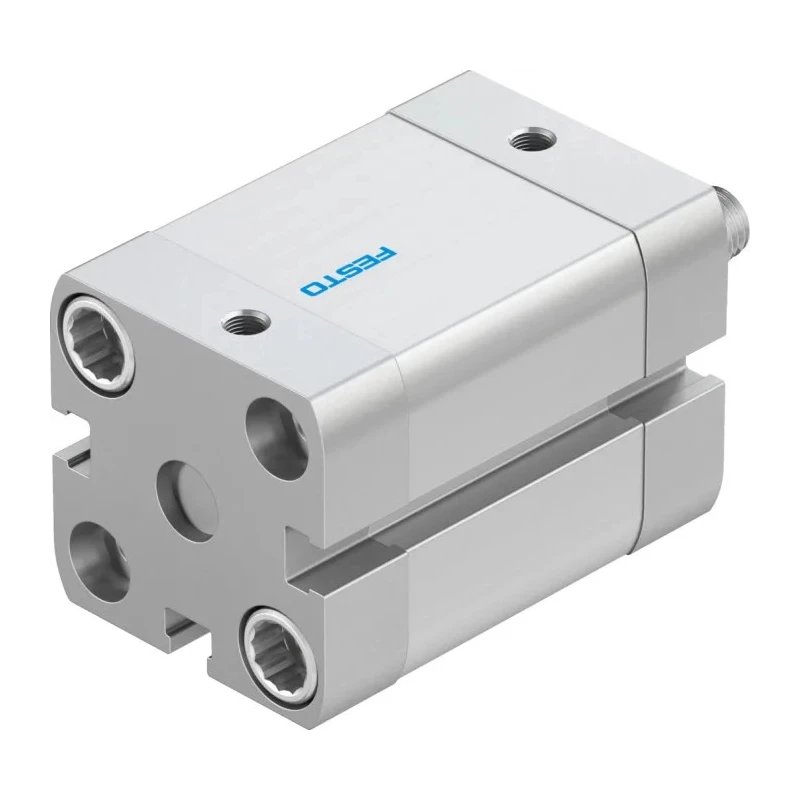

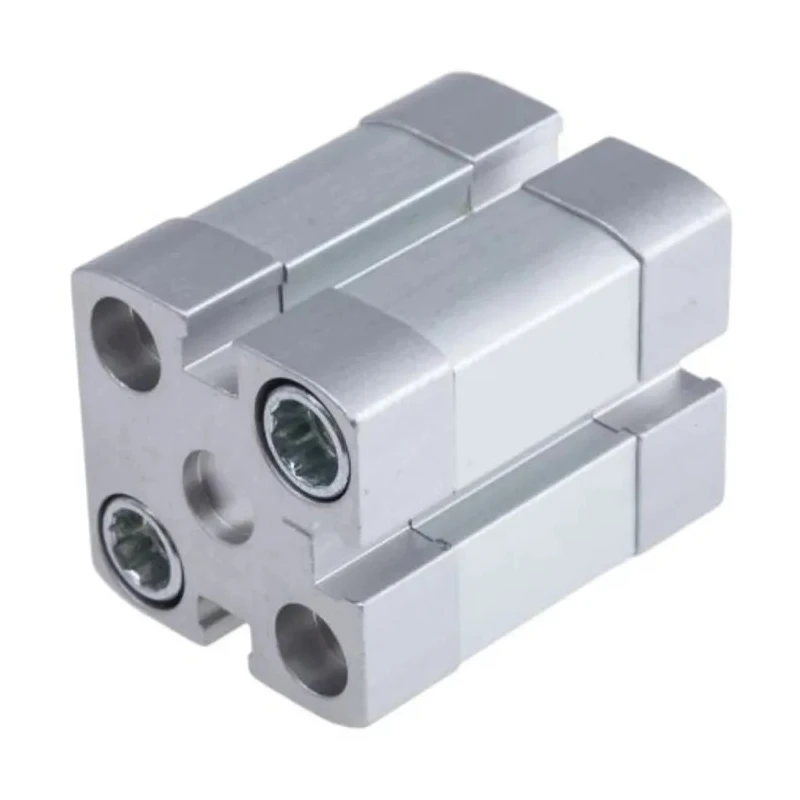

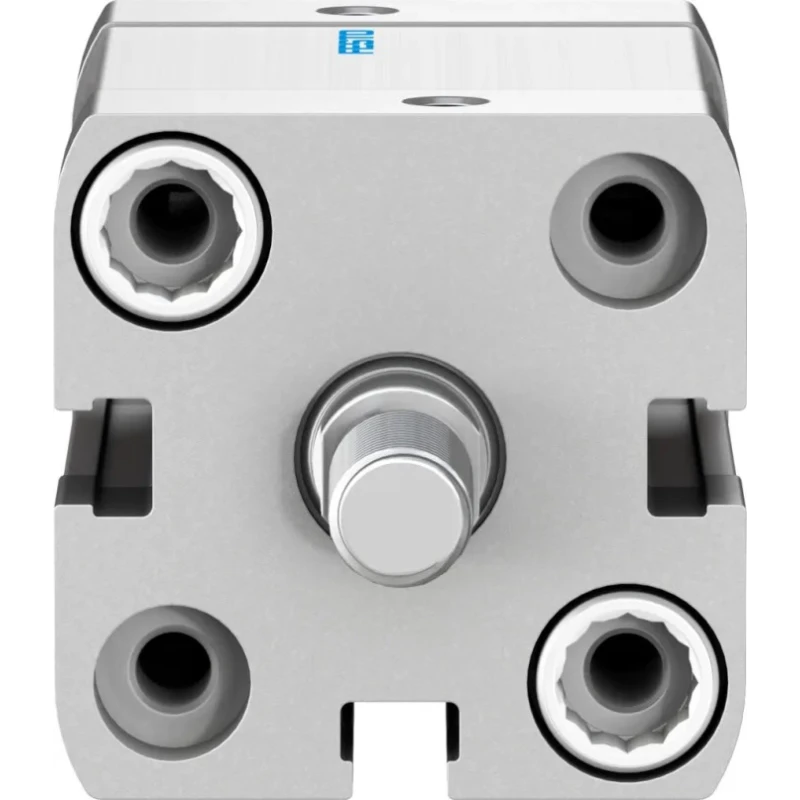

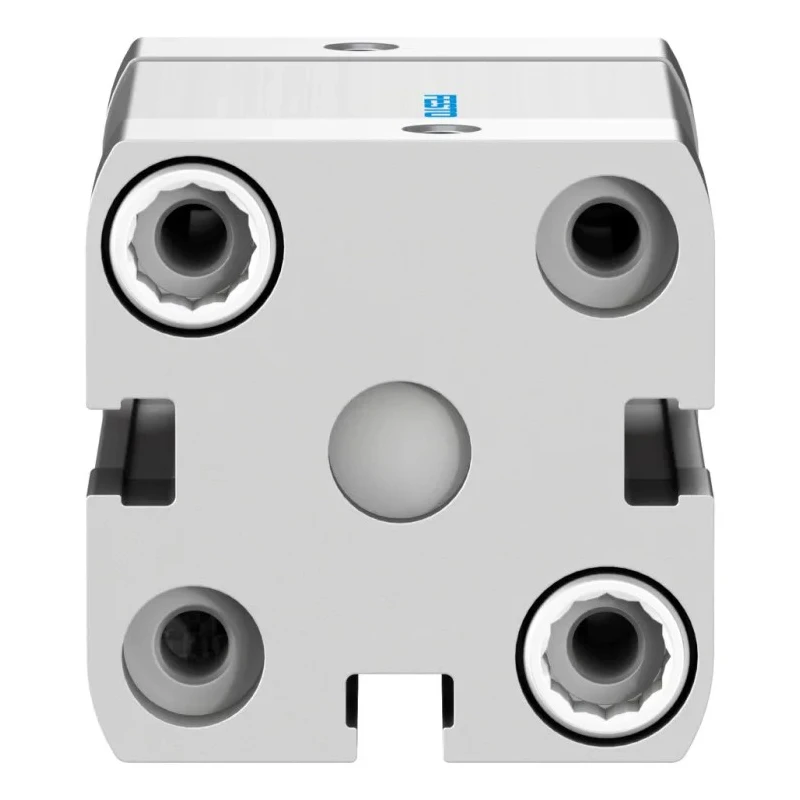

Festo Pneumatic Cylinder ADN Series Double Acting Double Acting 25mm Bore 20mm Stroke Aluminium Body M5 ADN-25-20-A-P-A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 39.5mm |
| Length | 64.5mm |
| Model | ADN-25-20-A-P-A |
| Width | 39.5mm |
| Mount Type | Through Hole |
| Series | ADN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 20mm |
| Bore Diameter | 25mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 21287, RoHS |
| Cushioning Type | Air Cushioning, Cushioning Rings |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | M5 |
Key Features
- Compact aluminium body with a length of 64.5mm ensures suitability for restricted spaces.
- Double acting design provides precise control of both extension and retraction strokes.
- M5 male-threaded piston rod allows secure and versatile mounting options.
- Air cushioning with cushioning rings provides smooth damping and operational longevity.
- Operates effectively within a temperature range of -20°C to 80°C under a maximum pressure of 10 bar.
- Conforms to ISO 21287 standard and RoHS compliance for industrial safety and environmental standards.
- Through hole mount type for easy and secure installation in automated systems.
- Suitable for robotic systems, automated handling, packaging, and assembly machinery requiring precise linear motion.
Product Description
Festo ADN-25-20-A-P-A pneumatic cylinder is a high-quality industrial actuator designed to deliver precise linear motion with a 25mm bore and 20mm stroke. The double acting mechanism enables controlled movement in both directions, making it versatile for numerous automation applications across manufacturing, packaging, and robotic systems.
Constructed with a durable aluminium body measuring 64.5mm in length, this cylinder offers a compact footprint suitable for installations where space is limited. The piston rod features an M5 male thread, facilitating robust and flexible mounting solutions. Additionally, air cushioning via cushioning rings ensures smooth operation while protecting internal components from shock and wear.
Engineered according to ISO 21287 standards, the cylinder maintains reliable function within a temperature range of -20°C to +80°C and withstands a maximum operating pressure of 10 bar. The through hole mounting type simplifies integration into existing pneumatic systems.
This pneumatic cylinder is optimally operated with compressed air compliant with ISO 8573-1:2010, enhancing performance longevity and efficiency. Its double acting functionality and compact design make it ideal for automated handling, assembly, packaging machines, and robotic applications requiring precise, repeatable linear actuation.
Compact aluminium body with 64.5mm length for space efficiency. Double acting piston for versatile bi-directional stroke control. Air cushioning and cushioning rings for smooth damping. M5 male piston rod thread for secure mounting.
Operation range: -20°C to 80°C, 10 bar max pressure. ISO 21287 and RoHS compliant for quality assurance. Through hole mount type for easy installation. Suitable for assembly, packaging, and robotic industrial automation.
This Festo pneumatic cylinder belongs to the ADN series, renowned for reliability and precision in industrial automation environments. It is an excellent choice for engineers and technicians looking for a compact, durable, and well-certified actuator for their pneumatic systems.
Discover a comprehensive selection of Pneumatic Cylinders and actuators in EnvMart's industrial tools category, designed to meet rigorous manufacturing and process control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this model is 25mm.
The stroke length of this pneumatic cylinder is 20mm.
It can withstand a maximum operating pressure of 10 bar.
This model operates effectively within a temperature range of -20°C to 80°C.
It features air cushioning with cushioning rings for smooth damping during operation.
This unit utilizes a through hole mounting type for easy installation.
The dimensions of this model are 64.5mm in length, 39.5mm in height, and 39.5mm in width.
It conforms to ISO 21287 standards and is RoHS compliant for safety and environmental standards.
The body of this pneumatic cylinder is made from aluminium.
This model features a double acting mechanism, allowing for controlled movement in both directions.
The piston rod has an M5 male thread size for secure mounting options.
It is suitable for applications in robotic systems, automated handling, packaging, and assembly machinery requiring precise linear motion.
