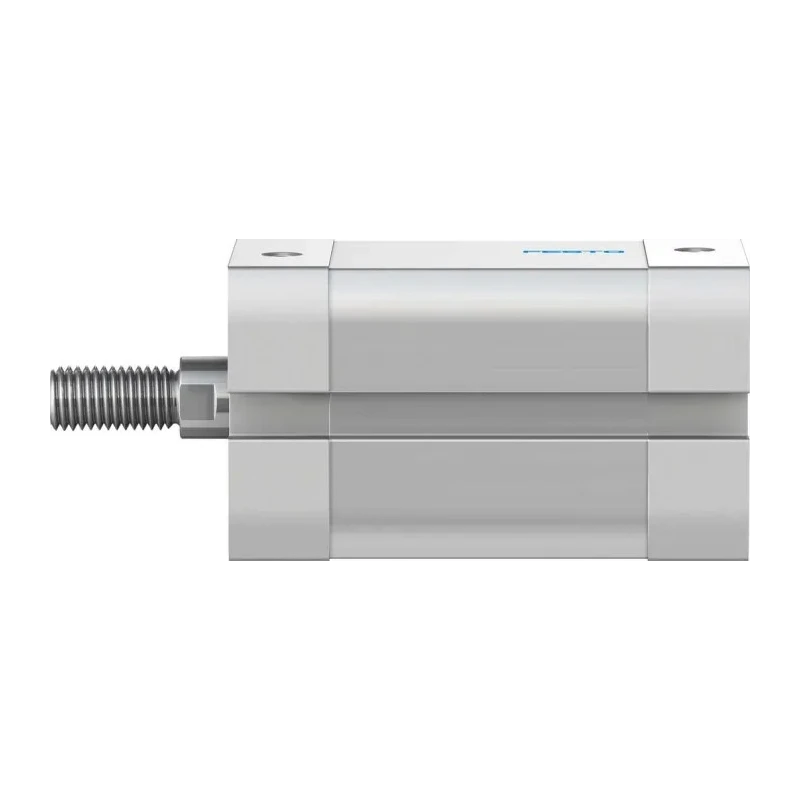

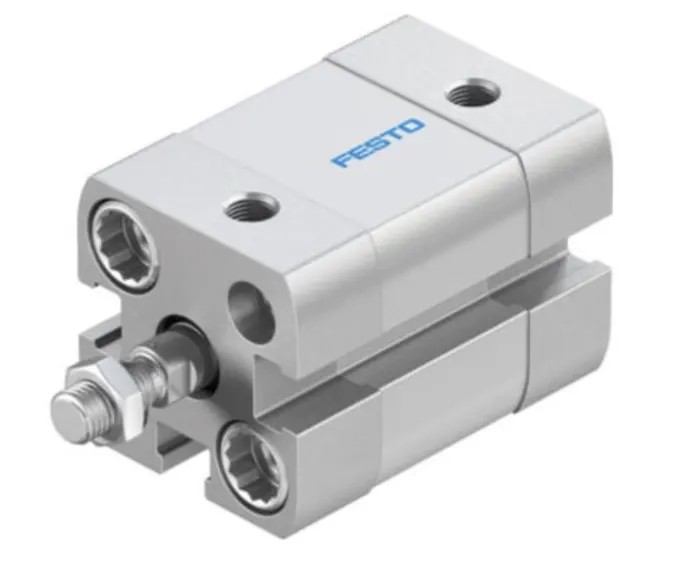

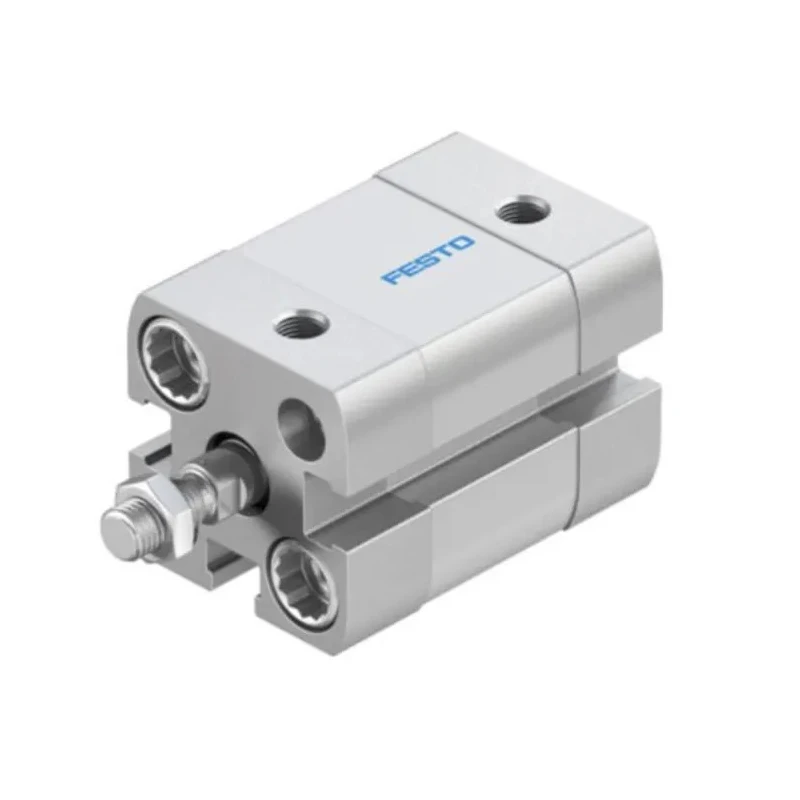

Festo Pneumatic Cylinder ADN Series Double Acting 20mm Bore 25mm Stroke Aluminium Body Germany ADN-20-25-A-P-A

Festo ADN-20-25-A-P-A Pneumatic Cylinder is designed for precise linear motion in various industrial sectors such as automotive manufacturing, mechanical engineering, and robotics systems. This model belongs to the ADN series and is a double-acting pneumatic cylinder, enabling both pushing and pulling forces for enhanced control and efficiency.

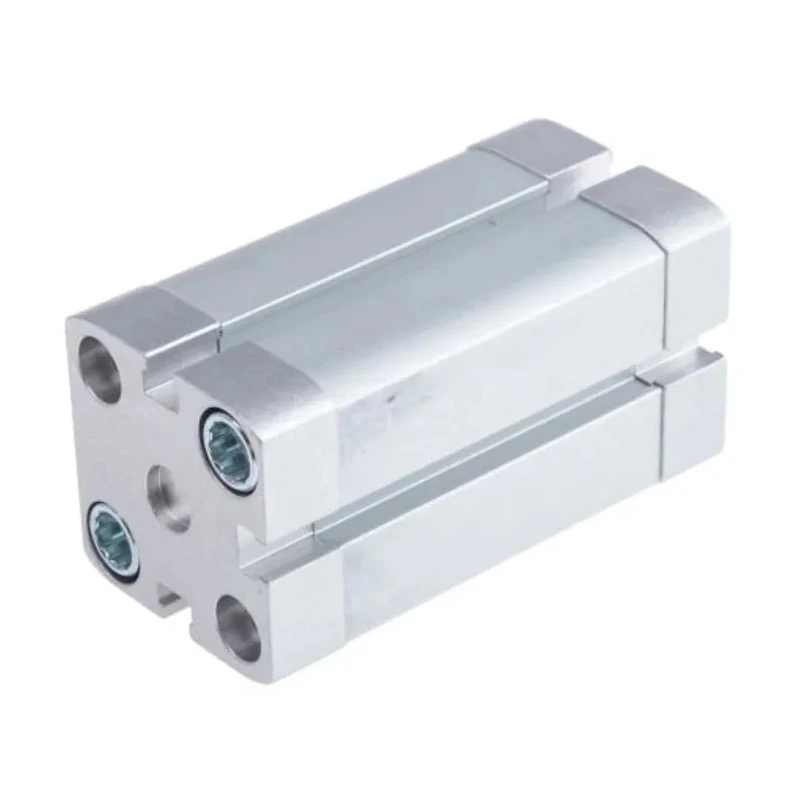

The cylinder features a 20mm bore diameter combined with a 25mm stroke length, making it suitable for medium load tasks. Its aluminium body provides lightweight durability and corrosion resistance. Elastic polymer end cushioning significantly reduces noise and vibration during operation, ensuring quieter working environments.

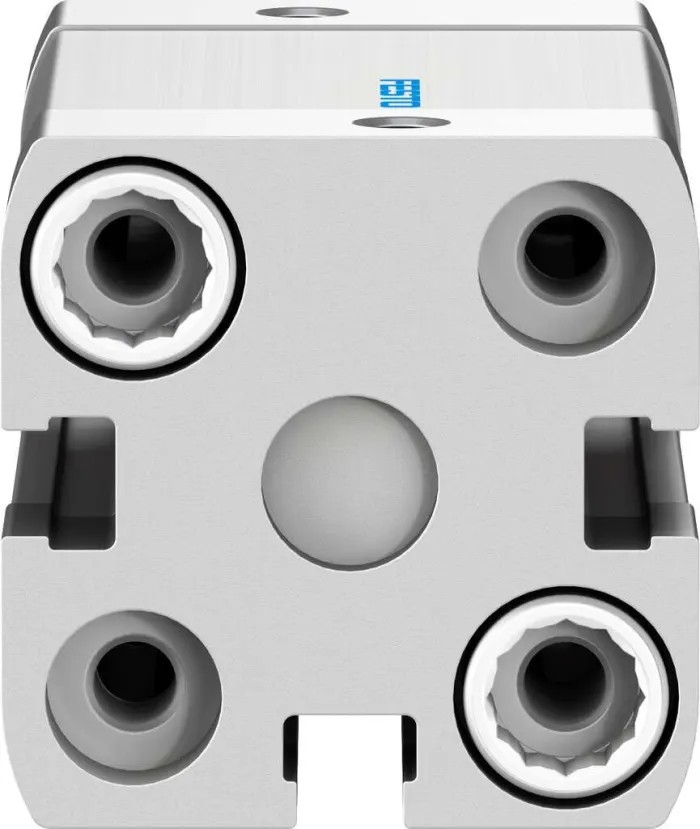

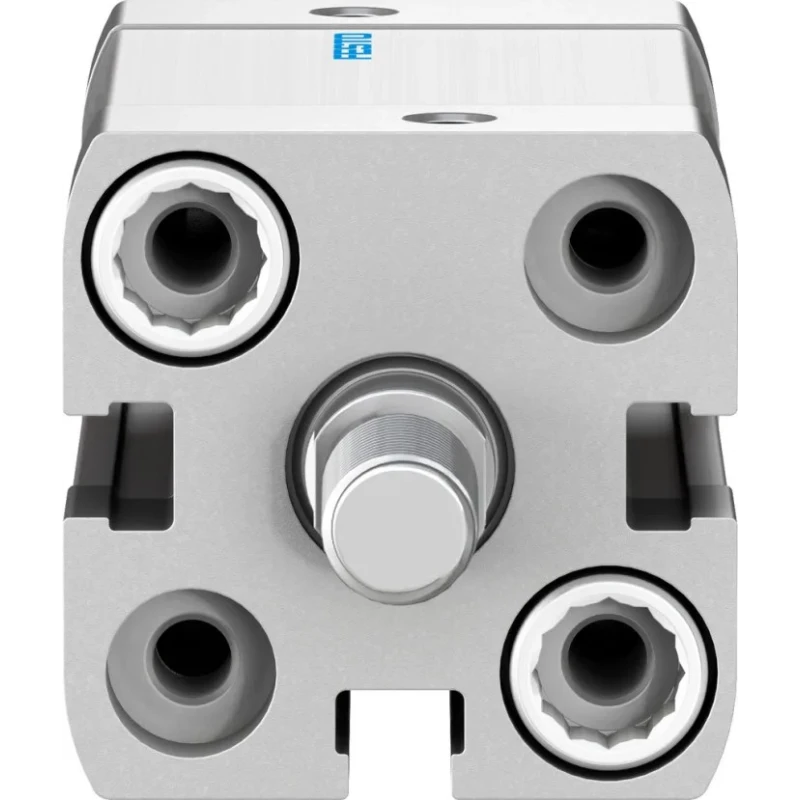

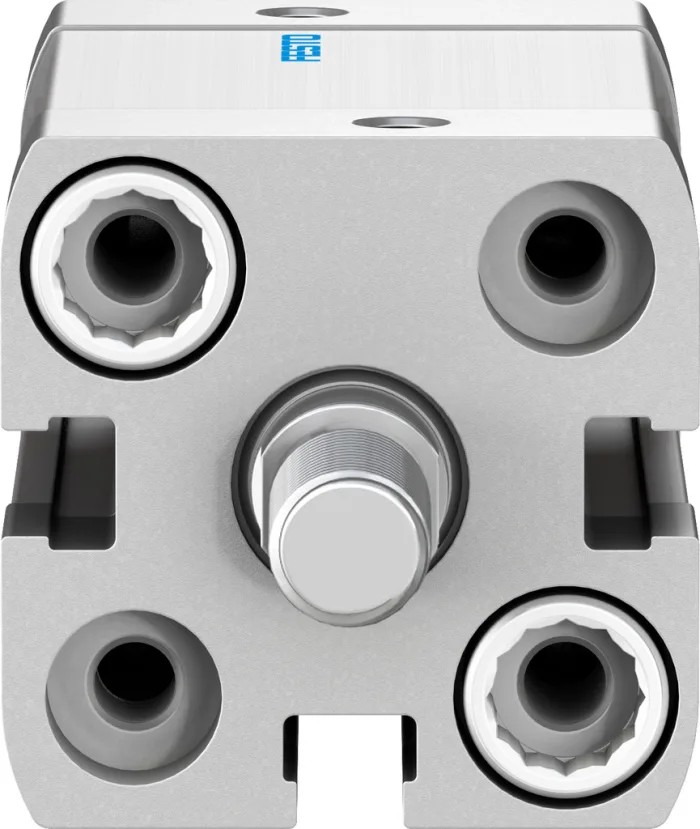

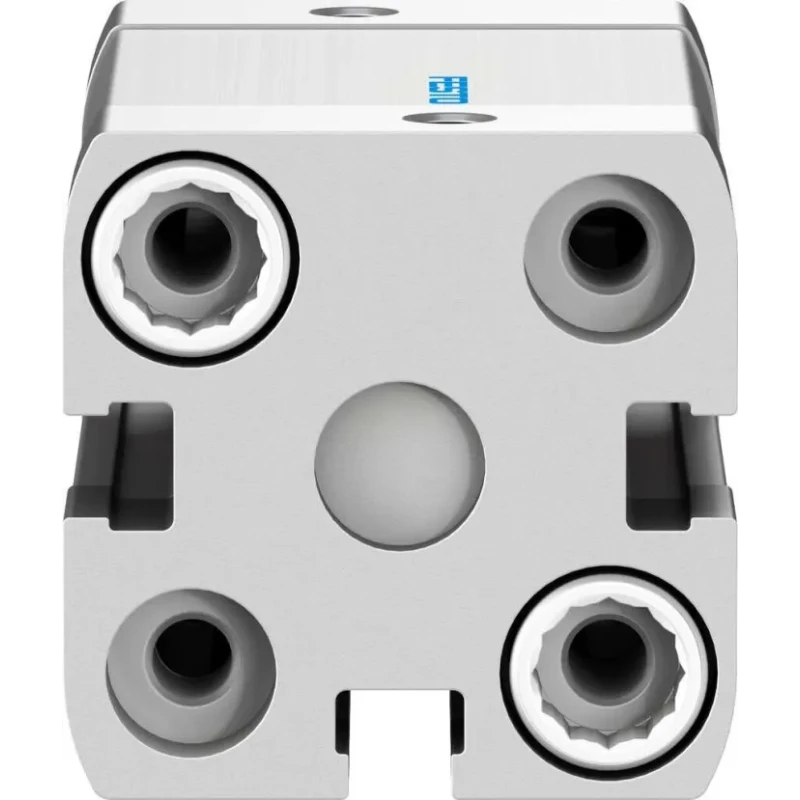

Designed for flexible installation, the through hole mount type allows the cylinder to be mounted horizontally or vertically as required. The piston rod is single-acting with a male thread size of M5, facilitating easy connection to various mechanical systems.

Operating reliably between temperatures of -20°C and 80°C, this pneumatic cylinder performs well even under harsh conditions. The maximum operating pressure of 10 bar supports diverse applications requiring medium force output.

Compliance with ISO 21287 and RoHS indicates adherence to international safety, environmental, and quality standards. Manufactured in Germany, the product reflects superior engineering and manufacturing excellence.

Its compact size, measuring 35.5mm in width and height with a length of 67.5mm, helps conserve space in compact or crowded machinery setups. The magnetic piston rod facilitates contactless position detection when paired with appropriate proximity sensors, adding to operational precision and system automation.

The cylinder operates with a maximum pressure of 10 bar for versatile industrial applications. It offers a wide operating temperature range from -20°C to 80°C for use in demanding environments. The mounting type is through hole for secure fixture flexibility.

The piston rod is single type with male M5 threaded connection ensuring easy integration. Compact dimensions of 35.5mm width, 67.5mm length, and 35.5mm height help in space-saving installation. The unit complies with ISO 21287 and RoHS standards for quality and safety.

The pneumatic cylinder originates from Germany, assuring high manufacturing standards.

This pneumatic cylinder is ideal for industrial, manufacturing, robotics, and mechanical engineering applications requiring reliable, accurate, and compact linear motion solutions. Explore EnvMart's extensive range of Pneumatic Cylinders and accessories for optimized automation solutions.
