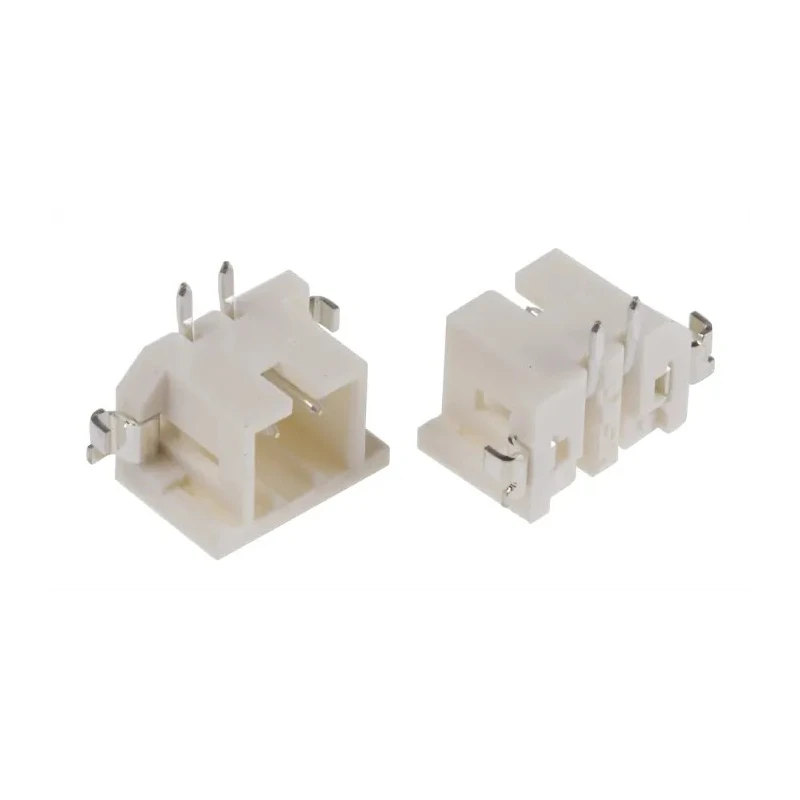

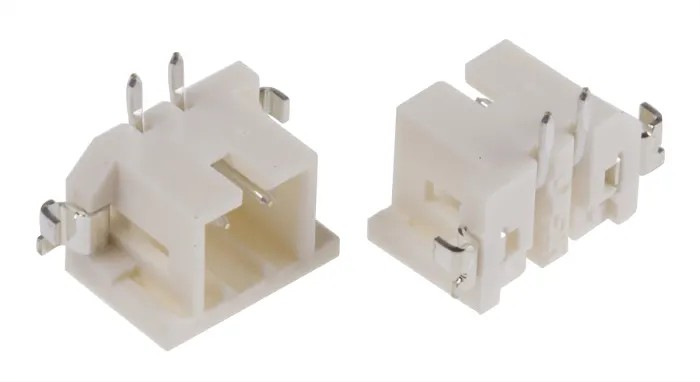

Hirose DF3 Series Straight Surface PCB Header, 2 Contact(s), 2 mm Pitch, 1 Row, Shrouded DF3EA-2P-2V(21)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 3A |
| Model | DF3EA-2P-2V(21) |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | DF3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Features a low profile design enhancing compactness on PCB layouts.
- Equipped with a friction locking mechanism ensuring secure mating connection.
- Includes PCB mounting bosses for precise positioning during soldering.
- Reinforced metal fittings provide secure attachment and prevent solder joint peeling.
- Suitable for applications in business equipment such as copy machines and printers.
- Operates efficiently within a temperature range of -55°C to 105°C.
- Made with polyamide housing and brass contacts plated with tin for durability.
- Designed as a surface mount type with male contact gender and shrouded orientation.
Product Description
Hirose DF3EA-2P-2V(21) Straight Surface PCB Header is engineered for high reliability in electronic components assembly, featuring 2 contacts spaced at 2 mm pitch and a single row shrouded design. Operating at a voltage rating of 250V and current rating of 3A, it is crafted from polyamide housing with brass contacts plated in tin for corrosion resistance and longevity.
This PCB header utilizes a friction locking mechanism to ensure a secure connection to its mating socket. The inclusion of PCB mounting bosses aids in maintaining precise placement during reflow soldering, minimizing misalignment risks. Reinforced metal fittings on either side of the housing provide enhanced mechanical stability by preventing peeling effects on the solder joints.
Ideal for industrial and business equipment applications, such as office machines including copiers and printers, this header withstands temperature extremes from -55°C to 105°C, ensuring operational reliability in varied environments. Its surface mount configuration and male contact gender allow straightforward integration on PCB boards.
Low profile design enhances compact PCB layout integration. Friction locking mechanism for mating security. PCB mounting bosses improve positioning accuracy. Reinforced metal fittings prevent solder joint failure. High reliability in office and business equipment applications.
Material: Polyamide housing, brass contacts with tin plating. Rated for 250V voltage and 3A current. Operating temperature from -55°C to 105°C.
Manufactured in Japan, this Hirose DF3 Series connector exemplifies quality and precision required for robust electronic interconnect solutions. Available in a single row with shrouded design, it offers secure and efficient board-to-board and wire-to-board connector systems within sophisticated electronic equipment.
Explore more connectors and PCB Header solutions in our Electronics Components category at EnvMart, ensuring quality and performance for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 250V and a current rating of 3A.
It features a polyamide housing and brass contacts plated with tin for corrosion resistance.
It operates efficiently within a temperature range of -55°C to 105°C.
This header is equipped with 2 contacts.
This unit is designed for surface mounting on PCB boards.
The contacts are spaced at a pitch of 2 mm.
It supports both board-to-board and wire-to-board connector systems.
It includes a friction locking mechanism for secure mating and reinforced metal fittings to prevent solder joint peeling.
The DF3EA-2P-2V(21) has a straight orientation.
This model is manufactured in Japan.
It is suitable for applications in business equipment, such as copy machines and printers.
Its low profile design enhances compactness, allowing for efficient integration on PCB layouts.
