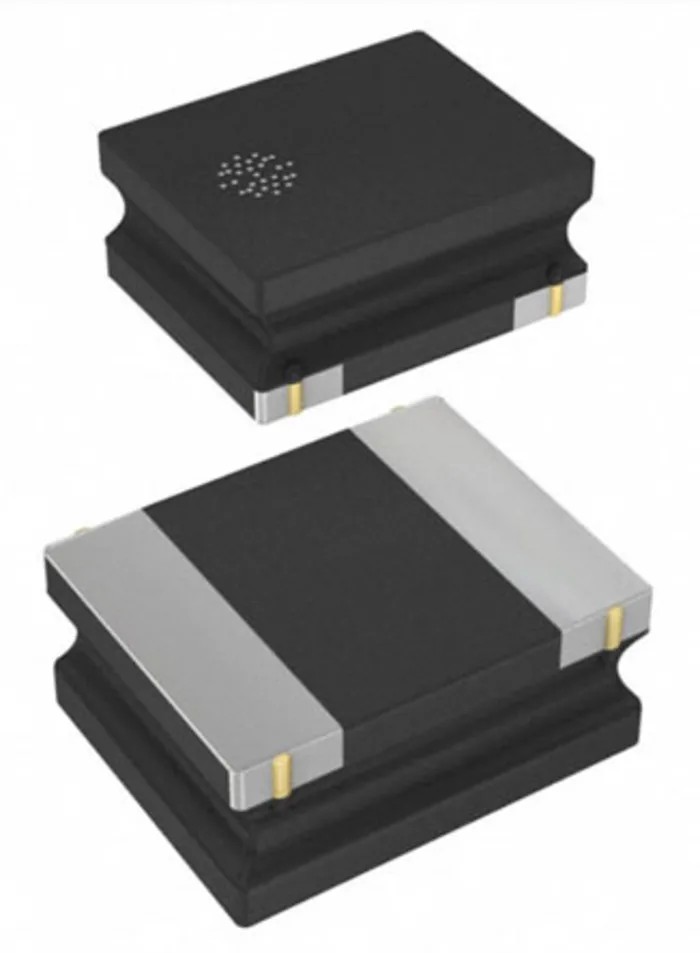

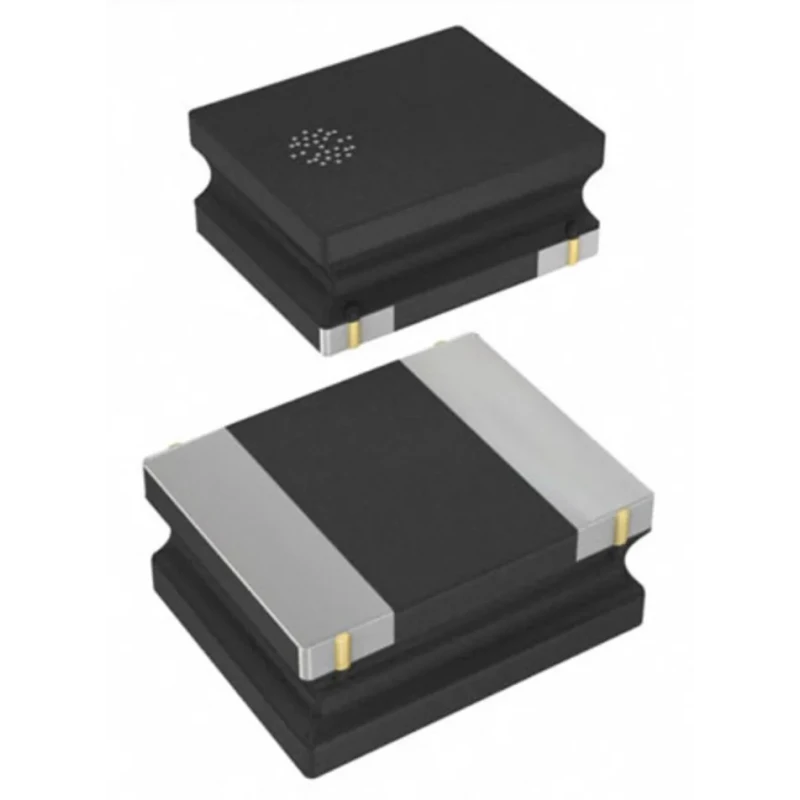

TDK Shielded Wirewound Surface Mount Inductor Metallic Magnetic Core 10 μH ±20% 800 mA Idc VLS252012HBU-100M
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 1.2mm |
| Length | 2.5mm |
| Model | VLS252012HBU-100M |
| Depth | 2mm |
| Series | VLS-HBU |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metallic Magnetic |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 2520 |
| Maximum DC Current | 800mA |
| Pin Count | 2 |
| Maximum DC Resistance | 670mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Shielded |
Key Features
- The inductor features a metallic magnetic core for high performance.
- Magnetically shielded wirewound construction reduces electromagnetic interference.
- Compact 2520 package with 2 pins suitable for surface mounting.
- Operates reliably between -40°C to 105°C temperature range.
- Maximum DC resistance of 670 mΩ ensures efficient power handling.
- Designed for applications in LCD LED backlights and driver panels.
- Compliant with RoHS standards for environmental safety.
- Insulating technology enables a high withstand voltage of 40 V.
Product Description
TDK VLS252012HBU-100M is a shielded wirewound surface mount inductor engineered with a metallic magnetic core material, providing robust inductance of 10 μH with ±20% tolerance and supporting a maximum DC current of 800 mA. The inductor is constructed with advanced shielding techniques that minimize electromagnetic interference, making it ideal for sensitive electronic power circuits.
This device comes in a compact 2520 surface mount package measuring 2.5 mm in length, 1.2 mm in height, and 2 mm in depth, facilitating easy integration into densely packed electronic assemblies. Its surface mount termination and moulded construction ensure durability and reliable performance over a wide operating temperature from -40°C to 105°C.
With a maximum DC resistance of 670 mΩ and metallic core insulation technology, this inductor offers a high withstand voltage rating of 40 V, enhancing power circuit stability. It is compliant with RoHS standards, underscoring its environmental and safety credentials.
Applications for the VLS252012HBU-100M include LCD LED backlights, OLED panels, LCD panels, and driver modules in modern electronics. Its design optimizes current capacity while maintaining compact size and shielding effectiveness, making it a preferred choice in power circuit and display technologies within industrial, consumer electronics, and commercial sectors.
The inductor features a metallic magnetic core for high performance. Magnetically shielded wirewound construction reduces electromagnetic interference. Compact 2520 package with 2 pins suitable for surface mounting. Operates reliably between -40°C to 105°C temperature range.
Maximum DC resistance of 670 mΩ ensures efficient power handling. Designed for applications in LCD LED backlights and driver panels. Compliant with RoHS standards for environmental safety. Insulating technology enables a high withstand voltage of 40 V.
For professionals seeking reliable surface mount inductors for power circuits, the TDK VLS252012HBU-100M integrates advanced core materials and shielding technology. Explore the full range of Surface Mount Inductors available on EnvMart to find compatible components for your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10 μH with a tolerance of ±20%.
It can handle a maximum DC current of 800 mA.
The dimensions of the 2520 package are 2.5 mm in length, 1.2 mm in height, and 2 mm in depth.
It operates reliably within a temperature range of -40°C to 105°C.
The magnetically shielded wirewound construction reduces electromagnetic interference, enhancing its performance in sensitive electronic circuits.
The maximum DC resistance is 670 mΩ, ensuring efficient power handling.
Yes, it is compliant with RoHS standards for environmental safety.
It is designed for applications in LCD LED backlights, OLED panels, LCD panels, and driver modules in modern electronics.
The core material is a metallic magnetic core, which contributes to its high performance.
This model has 2 pins suitable for surface mounting.
It has a high withstand voltage rating of 40 V, enhancing power circuit stability.
The inductor uses a surface mount termination style, facilitating easy integration into electronic assemblies.
