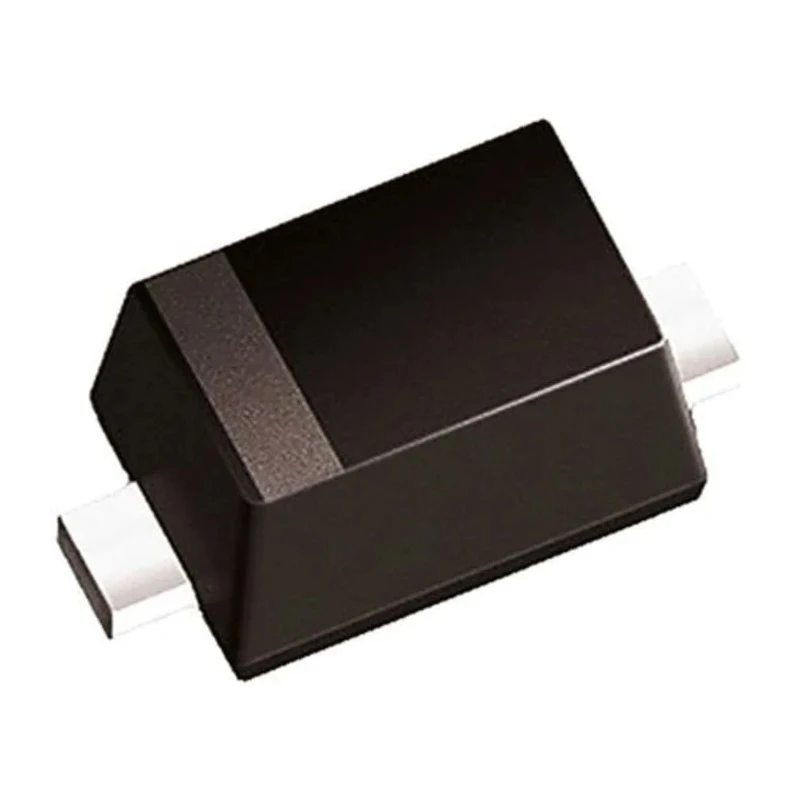

ROHM 60 V 200 mA Schottky Barrier Diode Surface Mount SOD-523 RB521SM-60T2R

Name: ROHM 60 V 200 mA Schottky Barrier Diode Surface Mount SOD-523 RB521SM-60T2R
Brand: ROHM
SKU: 143872
Price: 0.06 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	0.6mm
Length	1.2mm
Model	RB521SM-60T2R
Width	0.8mm
Mount Type	Surface
Series	RB521SM-60
Maximum Operating Temperature	125°C
Package Type	SOD-523
Minimum Operating Temperature	-55°C
Standards/Approvals	JEITA: SC-79, JEDEC: SOD-523
Pin Count	2
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	100μA
Peak Non-Repetitive Forward Surge Current Ifsm	1A
Maximum Forward Voltage Vf	600mV
Standards/ApprovalsJEITA	SC-79, JEDEC: SOD-523
JEITA	SC-79, JEDEC: SOD-523

Key Features

Compact SOD-523 package measuring 1.2 mm length, 0.8 mm width, and 0.6 mm height.
Maximum continuous forward current of 200 mA and peak reverse voltage of 60 V.
Low forward voltage drop of 600 mV reduces power loss.
Wide operating temperature range from -55°C to 125°C improves durability.
Low leakage current with peak reverse current of 100 μA enhances efficiency.
Supports transient surge currents up to 1 A peak non-repetitive forward surge.
Meets JEITA and JEDEC industry standards for semiconductor diodes.

Product Description

ROHM RB521SM-60T2R Schottky Barrier Diode features a compact surface mount SOD-523 package, making it ideal for space-constrained electronic component designs. It supports a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 60 V. The diode exhibits low forward voltage of 600 mV, minimizing power loss in circuits.

Designed for robust performance, this diode operates reliably across a wide temperature range from -55°C up to 125°C, supporting demanding industrial, automotive, and consumer electronic applications.

The device maintains low leakage with peak reverse current at 100 μA, ensuring high efficiency and minimal power dissipation. Its peak non-repetitive forward surge current of 1 A allows it to withstand transient surges effectively.

Certified under JEITA SC-79 and JEDEC SOD-523 standards, the RB521SM-60T2R offers assured quality and compatibility in semiconductor assemblies. The 2-pin configuration suits discrete semiconductor and power management circuits.

This Schottky diode is widely applicable in power rectification, voltage clamping, and switching circuits in industrial machines, power & connectors, electronic manufacturing, and consumer electronics. Its compact size and reliable electrical characteristics enable efficient PCB layout and enhanced system performance.

Compact SOD-523 package measuring 1.2 mm length, 0.8 mm width, and 0.6 mm height. Maximum continuous forward current of 200 mA and peak reverse voltage of 60 V. Low forward voltage drop of 600 mV reduces power loss. Wide operating temperature range from -55°C to 125°C improves durability.

Low leakage current with peak reverse current of 100 μA enhances efficiency. Supports transient surge currents up to 1 A peak non-repetitive forward surge. Meets JEITA and JEDEC industry standards for semiconductor diodes.
