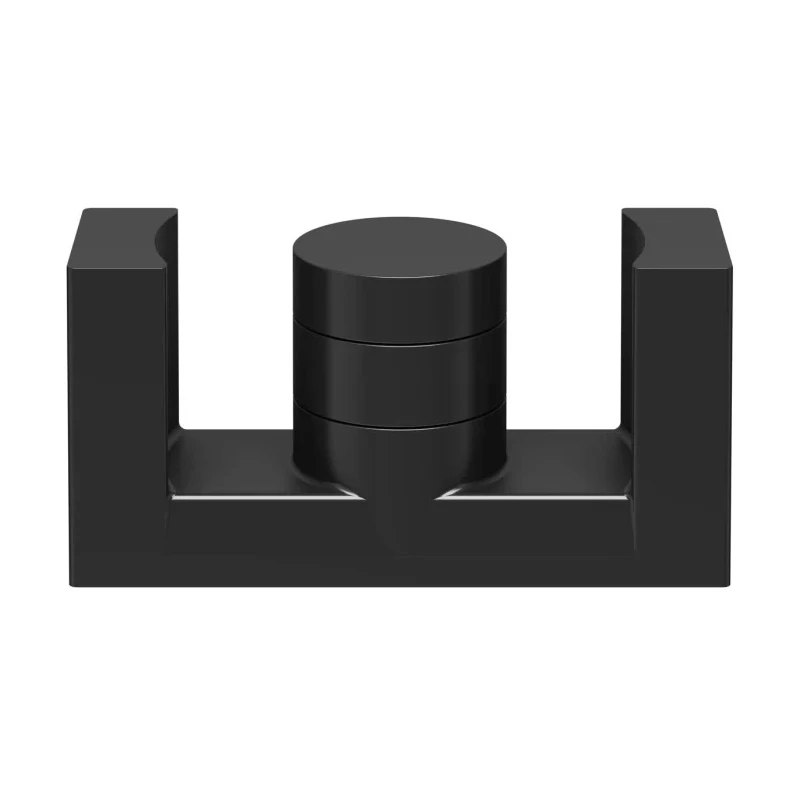

TDK Transformer Ferrite Core ETD 49/25/16, 314 nH AL Rating, N87 Material, IEC 61185 Standard B66367G1000X187

TDK B66367G1000X187 Transformer Ferrite Core ETD 49/25/16 is engineered specifically for SMPS and power transformers, featuring a 314 nH AL rating and high-grade N87 ferrite material. This transformer core meets IEC 61185 standards and offers a reliable solution for power supply applications requiring compact design and efficient magnetic performance.

The ETD 49/25/16 core size provides a balanced weight to performance ratio, ideal for space-constrained applications. With a maximum operating temperature of 155°C, this ferrite core ensures durability and longevity under elevated thermal conditions. The core dimensions include a length of 48.5mm, a depth of 24.9mm, and a width of 16.7mm, enabling precise integration within transformer assemblies.

Part of the B66367 series from TDK, this core is available in both gapped and ungapped variants, manufactured from N27, N87, or N97 ferrite materials to meet diverse performance requirements. This product is well-suited for industrial, laboratory, and commercial power supply manufacturing sectors.

Constructed with high-quality N87 ferrite material. Optimized for switch mode power supply transformers. Rated for maximum temperature of 155°C ensuring robust operation. Complies with IEC 61185 standards for safety and performance.

Compact ETD 49/25/16 core size with precise dimensions. 314 nH AL rating for efficient magnetic flux. Available in gapped and ungapped varieties as required.

This TDK transformer ferrite core is manufactured in the Czech Republic and represents a reliable component for professionals seeking high-quality transformer cores. Explore more Transformer Cores and power supply components in the Electronics & Electricals section at EnvMart.
