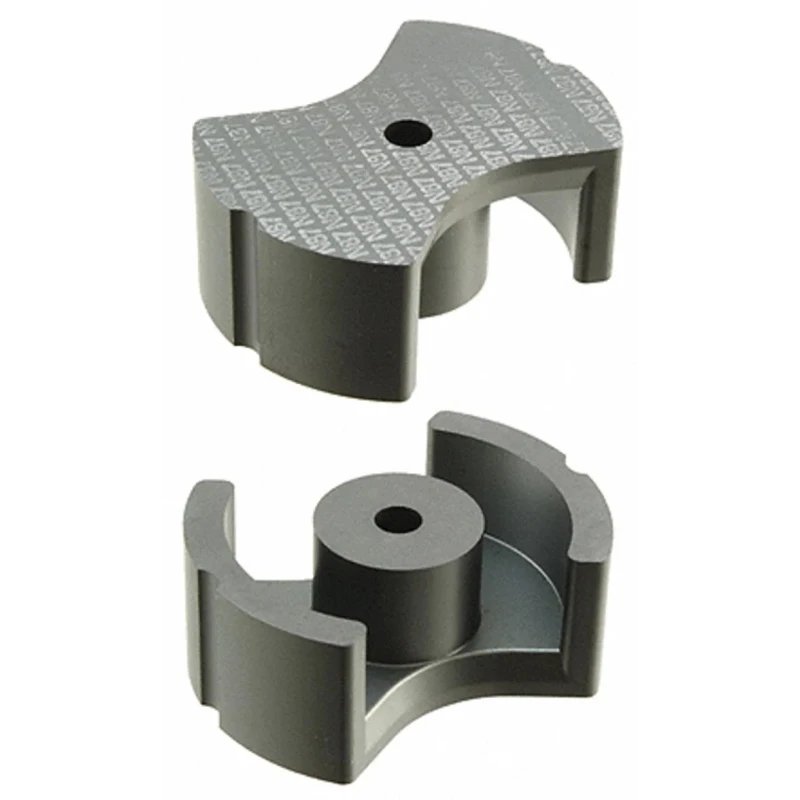

TDK Transformer Ferrite Core PM 50/39, 7400 nH AL Rating, N87 Material, 155°C Max Operating Temperature B65646A0000R087

TDK B65646A0000R087 Transformer Ferrite Core PM 50/39 is engineered for high-performance applications in transformers, energy storage chokes, and power transformers operating up to frequencies of 300 kHz. The core benefits from a wide flux area allowing high power transfer with a minimum number of turns, thus reducing magnetic leakage and stray capacitance. Made from premium N87 material, this ferrite core offers excellent permeability stability and low losses, ensuring efficiency and durability in demanding electrical and industrial environments.

The PM shape core is precisely ground, featuring air gaps that ease assembly and contribute to economic mounting. Its closed form enhances shielding effectiveness reducing electromagnetic interference, making it suitable for telecommunications and industrial electronics sectors. Dimensions measuring 50 mm in width, 84 mm in length, and 39 mm in depth make it adaptable for various custom transformer designs.

With a maximum operating temperature rating of 155°C, the core ensures reliable operation under thermal stress. Adherence to IEC 61247 standards guarantees compliance with international quality and safety requirements. This component is manufactured in the Czech Republic, reflecting stringent European manufacturing practices.

Core size PM 50/39 suitable for power transformers and energy storage chokes. High AL rating of 7400 nH for efficient magnetic performance. Constructed with durable N87 material ensuring stability and reliability. Designed to operate safely up to 155°C maximum temperature.

Core type PM provides minimized magnetic leakage and stray capacitance. Dimensions include 50 mm width, 84 mm length, and 39 mm depth. Complies with IEC 61247 standards for quality and safety. Manufactured in Czech Republic ensuring high manufacturing standards.

This TDK ferrite core is ideal for industrial applications requiring robust and efficient transformer components used in electronics manufacturing, telecommunications, power supply systems, and control equipment. EnvMart offers this product as a reliable choice for engineers and technicians seeking quality Transformer Cores.
