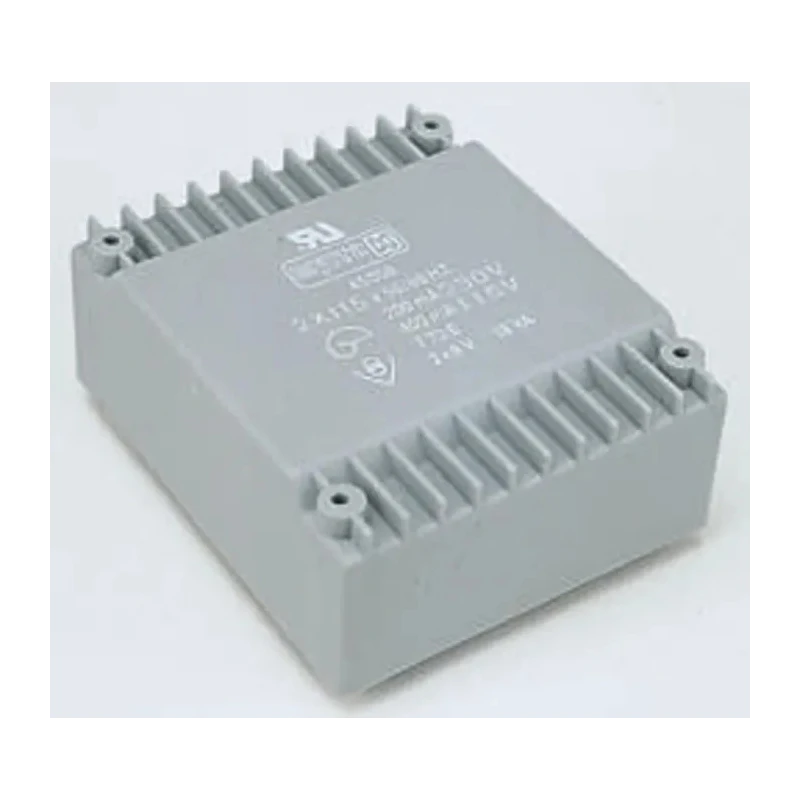

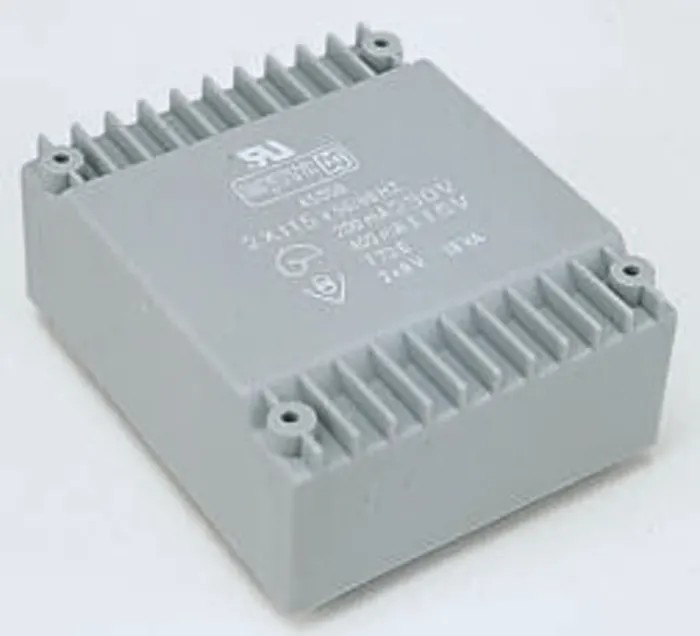

Myrra Through Hole PCB Transformer 230 V ac Input, 9 V ac 2 Output, 10 VA, EN 60950, UL 1585, EN 61558-2-6 45062

Myrra 45062 is a specialized through hole PCB transformer designed for industrial, electronic, and power supply applications. This unit accepts a primary voltage of 230 V ac and delivers dual secondary outputs at 9 V ac each, rated at 10 volt-amperes. Its encapsulated toroidal design within the 44000 series provides efficient magnetic coupling and reduced electromagnetic interference, ideal for compact printed circuit board layouts.

The transformer features a robust isolation voltage of 4 kV, ensuring user and equipment safety by providing effective galvanic isolation. Its construction supports a maximum operating temperature of 50°C, enabling reliable function in diverse environments. The operating frequency range from 50 Hz to 60 Hz makes it compatible with standard power supplies.

Compliance with internationally recognized standards such as EN 60950 for information technology equipment, UL 1585 for electric transformers, and EN 61558-2-6 for safety requirements establishes this transformer as a trustworthy component in electronic design. Additional certifications include IEC 742 and VDE 0551, testifying to its electrical and safety performance.

With exact physical dimensions of 68 mm length, 57 mm width, and 35 mm depth, it offers a compact form factor suitable for various PCB layouts. The mount type is through hole, providing secure attachment and electrical contact on printed circuit boards.

This transformer is primarily intended for applications requiring reliable AC voltage transformation with two independent outputs. Typical use cases include industrial control systems, power supply units, electronic testing equipment, and automation devices. Its encapsulated design enhances durability and protects internal components from environmental factors.

Designed for through-hole mounting on PCBs ensuring stable mechanical and electrical connections. Features a nominal secondary voltage of 9 V ac with two outputs to support diversified load requirements. Constructed with robust isolation voltage of 4 kV for safety and durability in electrical installations.

Compact dimensions of 68 mm length, 57 mm width, and 35 mm depth for space-efficient PCB layouts. Operates reliably up to 50°C maximum temperature and within the 50 to 60 Hz frequency range. Encapsulated toroidal type transformer from series 44000, suitable for industrial and electronic applications.

Conforms to IEC 742, VDE 0551, SEV 1003 standards and UL 506 approval ensuring quality and safety. Manufactured in France, assuring high quality and compliance with European manufacturing standards. Explore the wide range of Transformers and PCB electronic components available at EnvMart for your industrial and electronic design needs.
