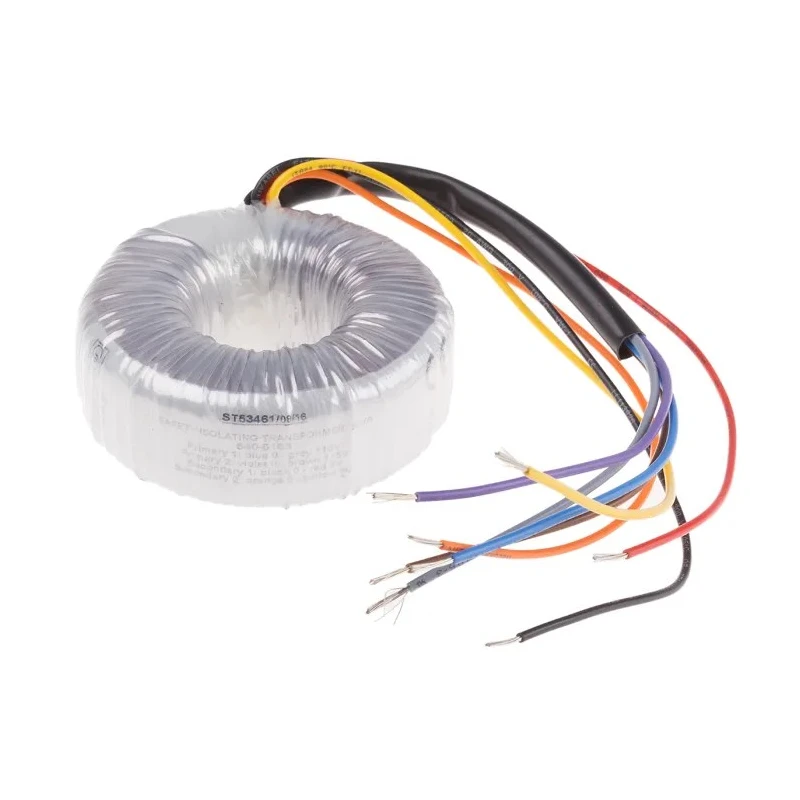

RS PRO Toroidal Transformer Dual Primary Dual Secondary 2 x 115 V ac 2 x 55 V ac 50 VA 2 Output 540-5163
Specifications
| Country of Origin | Poland |
|---|---|
| Diameter | 71mm |
| Brand | RS PRO |
| Height | 34mm |
| Model | 540-5163 |
| Gross Weight | 760g |
| Maximum Operating Temperature | 105°C |
| Secondary current | 1.67A |
| Number of outputs | 2 |
| Winding Type | Dual Primary, Dual Secondary |
| Primary Voltage | 2 x 115 V ac |
| Secondary Voltage | 2 x 55 V ac |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
Key Features
- Features a compact open form design for easy integration.
- Both primary and secondary windings can be connected in series or parallel.
- Operates with minimal noise and low magnetic radiation.
- Flexible leadouts simplify installation processes.
- Tested to meet multiple international electrical safety standards.

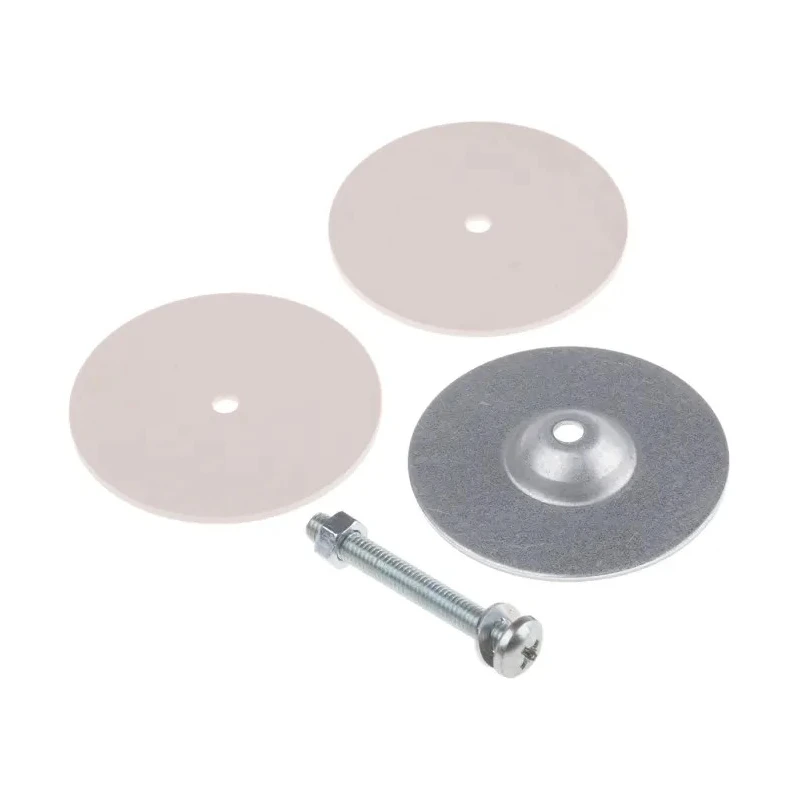

- Includes a full mounting kit for secure setup.
- Rated for maximum operating temperature of 105°C to ensure durability.
- Designed for 50 Hz to 60 Hz operation frequencies.
Product Description
RS PRO 540-5163 Toroidal Transformer is designed with dual primary and dual secondary windings providing two outputs of 115 V ac and 55 V ac respectively, rated at 50 VA power. This transformer is engineered for electronic, power supply, and industrial applications requiring a compact, efficient transformer with low noise characteristics.
Its open-form construction allows for easy mounting and installation in various electrical and electronic systems. The model supports series and parallel connections of primary and secondary windings, making it versatile for different voltage requirements.
With a diameter of 71 mm and height of 34 mm, it is lightweight at 760 grams, reducing system weight. Operating frequency ranges from 50 Hz minimum to 60 Hz maximum, suitable for worldwide applications. The maximum operating temperature is 105°C, providing reliability under thermal stress.
The transformer complies with multiple stringent standards including RoHS, IEC BS EN 61558-2-6, AS NZS 61558.1, CE marking, and UL506, ensuring safety and performance confidence. It includes a full mounting kit and features flexible leadouts for ease of electrical connections.
Special care is required during installation to avoid shorted turns by ensuring both ends of the fixing bolt do not simultaneously contact the metal chassis. This transformer is ideal for use in industrial, laboratory, manufacturing, and electronic power supply environments.
Compact open-form design for easy integration and low weight. Series or parallel connection capability for primary and secondary windings. Low induced noise and low magnetic field radiation. Flexible leadouts for convenient installation.
Complies with international safety standards including RoHS and IEC. Includes full mounting kit for secure attachment. Rated for 105°C maximum operating temperature for durability. Operates reliably at 50 to 60 Hz frequency range.
Explore more transformers and electrical components in the Electronics & Electricals category at EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 50 VA, providing dual outputs of 115 V ac and 55 V ac.
The transformer has a diameter of 71 mm and a height of 34 mm, making it compact for various applications.
It is rated for a maximum operating temperature of 105°C, ensuring reliability under thermal stress.
The primary voltage ratings are 2 x 115 V ac, while the secondary voltage ratings are 2 x 55 V ac.
This transformer operates within a frequency range of 50 Hz to 60 Hz, suitable for worldwide applications.
The gross weight of this transformer is 760 grams, which contributes to its lightweight design.
It features dual primary and dual secondary windings, allowing for versatile connections in series or parallel.
It complies with several international safety standards, including RoHS, IEC BS EN 61558-2-6, AS NZS 61558.1, CE marking, and UL506.
The product includes a full mounting kit for secure installation, along with flexible leadouts for ease of connection.
The RS PRO Toroidal Transformer is manufactured in Poland.
It is ideal for use in industrial, laboratory, manufacturing, and electronic power supply environments.
During installation, care must be taken to avoid shorted turns by ensuring that both ends of the fixing bolt do not simultaneously contact the metal chassis.
