Nuvotem Talema Toroidal Transformer 230 V AC Primary, 2 x 25 V AC Secondary, 50 VA, 2 Outputs, RoHS Compliant 91951-P2S2

Nuvotem Talema 91951-P2S2 toroidal transformer features a 230 V AC primary voltage and two 25 V AC secondary outputs, rated at 50 VA power. Its toroidal construction minimizes radiated magnetic fields and associated noise, making it ideal for sensitive electronic applications.

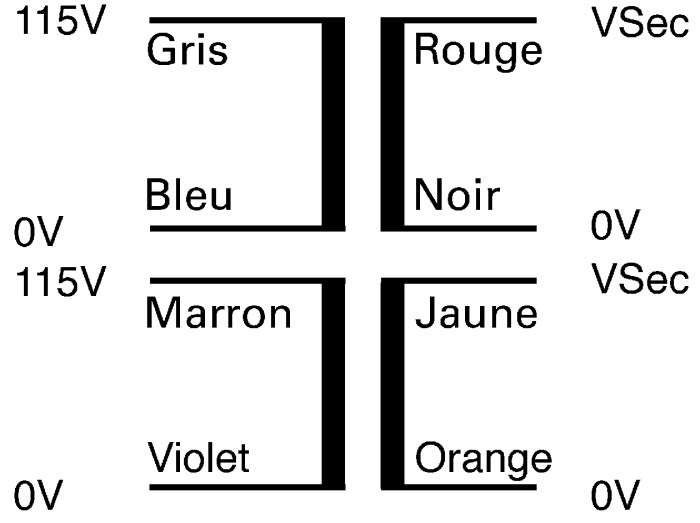

The transformer incorporates a single primary winding configured for 115/230 V AC operation and twin secondary windings that may be connected in series or parallel, or used independently, offering flexibility in various circuit designs. The compact physical dimensions, 80 mm diameter and 33 mm height, and a weight of 650 grams contribute to easy integration into constrained spaces.

Operational frequencies range from 50 Hz to 60 Hz, with a maximum temperature rating of 40°C ensuring safety and reliability under normal conditions. The lead termination type allows straightforward electrical connections. This unit complies with RoHS regulations, promoting environmentally responsible manufacturing.

As a high-quality open-style Toroidal Transformer, it provides extremely low iron losses and low induced hum, enhancing the performance of power supply systems, audio equipment, and industrial electronics. It comes complete with a mounting kit and has undergone rigorous testing to meet industry standards EN61558, EN60950, EN60065, and BS415. Additionally, it holds UL506 and EN61558 approvals.

This transformer is suited for industrial, commercial, electronic component manufacturing, and power supply applications requiring efficient voltage conversion and minimal electromagnetic interference.

High efficiency toroidal design reduces electromagnetic interference. Dual secondary windings provide flexible connection options. Lightweight 650 g with compact 80 mm diameter and 33 mm height. Operates reliably between 50 Hz and 60 Hz frequencies.

Single primary winding with lead termination for easy installation. Maximum operating temperature rated at 40°C for safe use. Conforms to RoHS standards ensuring environmental compliance. Includes full mounting kit and is 100% electrical and flash tested.
