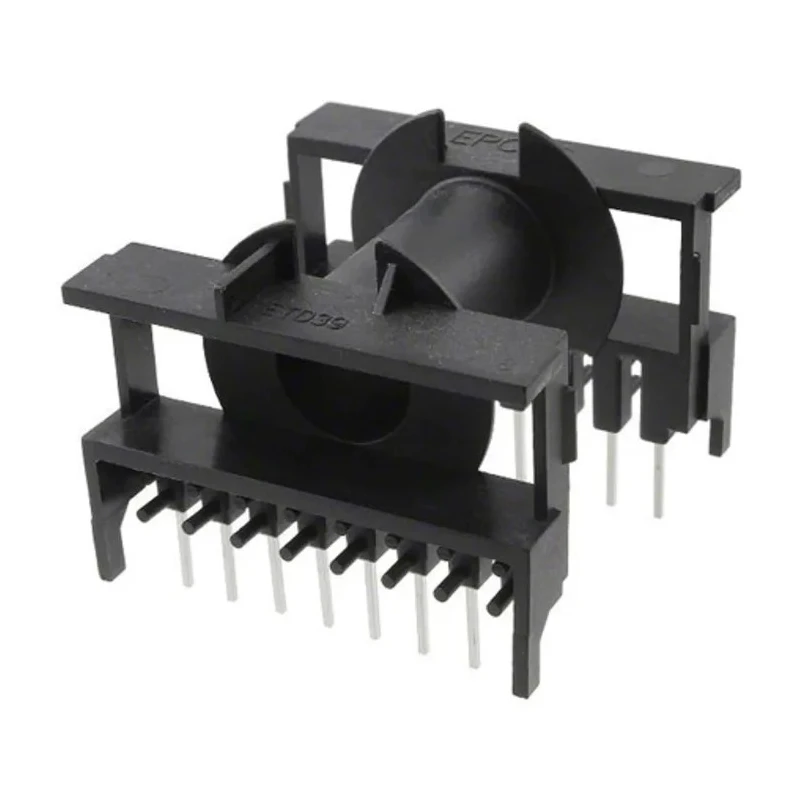

TDK Horizontal Coil Former for use with ETD 39/20/13 Core B66364B1016T001

Free Delivery in India | Lowest Global Shipping Charges

TDK Horizontal Coil Former for use with ETD 39/20/13 Core B66364B1016T001



Category Transformer Accessory Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Material	Fibreglass Reinforced PolyTerephthalate
Length	44.6mm
Model	B66364B1016T001
Depth	40mm
Width	46.8mm
Maximum Operating Temperature	155°C
Accessory Type	Horizontal Coil Former
For Use With	ETD 39/20/13 Core
Standards/Approvals	RoHS
Number of Pins	16

Key Features

Constructed from fibreglass reinforced polyterephthalate for durability.
Compatible with ETD 39/20/13 transformer cores.
Features 16 pins ensuring secure electrical connections.
Operates safely up to 155°C maximum temperature.
Complies with RoHS standards for environmental safety.
Meets UL 94 V-0 flammability and IEC 60085 insulation class standards.
Tested for solderability and soldering heat resistance per IEC 60068-2-20.
Perfect for industrial transformer and electronic equipment manufacturing.

Product Description

TDK B66364B1016T001 Horizontal Coil Former for use with ETD 39/20/13 Core is a precision-engineered Transformer Accessory constructed from fibreglass reinforced polyterephthalate. This robust coil former is designed specifically to accommodate ETD 39/20/13 ferrite cores, providing secure and reliable coil winding for transformer assemblies.

With 16 pins, the coil former offers excellent electrical connectivity and stability during operation. It supports a maximum operating temperature of 155°C, making it suitable for demanding environments and applications.

The product complies with RoHS directives ensuring environmental safety and meets the UL 94 V-0 flammability standard, providing enhanced safety against fire hazards. Its insulation class adheres to IEC 60085 standards (class B66364B: F), guaranteeing high insulation reliability and electrical performance.

Additionally, these coil formers are tested according to IEC 60068-2-20 standards for solderability and resistance to soldering heat, ensuring excellent manufacturing compatibility and durability.

This coil former is ideally suited for industrial transformers used in power supplies, electronic equipment, and manufacturing setups. It supports efficient transformer building and enhances electrical performance and safety.

TDK’s commitment to quality and compliance makes the B66364B1016T001 an essential component for transformer manufacturers and electronic assembly professionals. Constructed from fibreglass reinforced polyterephthalate for durability.

Compatible with ETD 39/20/13 transformer cores. Features 16 pins ensuring secure electrical connections. Operates safely up to 155°C maximum temperature. Dimensions are 44.6 mm in length, 46.8 mm in width, and 40 mm in depth.

Complies with RoHS standards for environmental safety. Meets UL 94 V-0 flammability and IEC 60085 insulation class standards. Tested for solderability and soldering heat resistance per IEC 60068-2-20. Perfect for industrial transformer and electronic equipment manufacturing.
