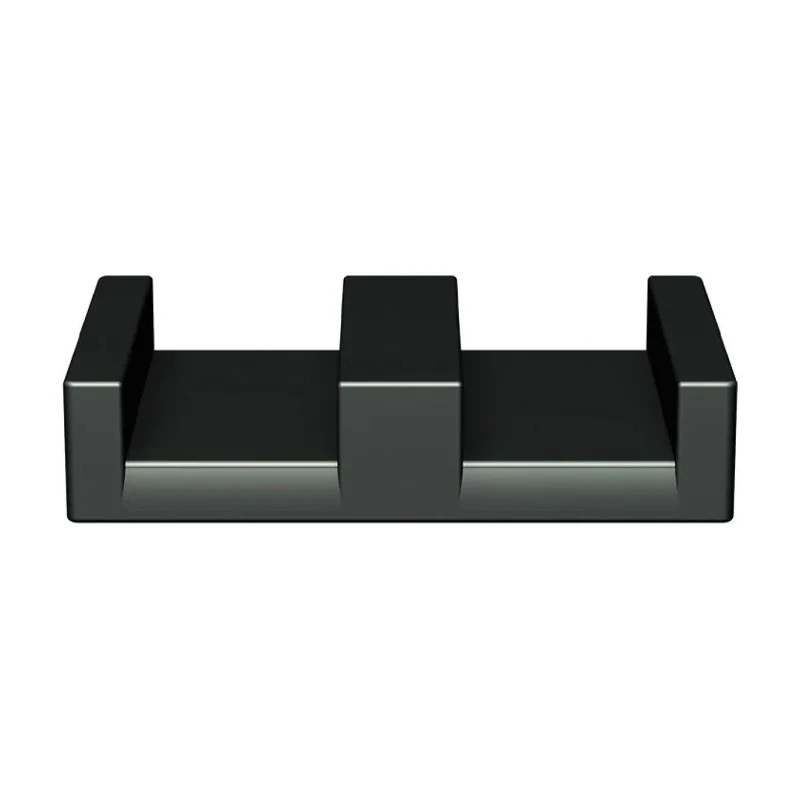

TDK ELP 64/10/50 Transformer Ferrite Core N87 Material, 12500nH AL Rating, 64mm Length B66295G0000X187
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TDK |
| Material | N87 |
| Length | 64mm |
| Model | B66295G0000X187 |
| Depth | 10.2mm |
| Width | 50.8mm |
| Series | ELP |
| Maximum Operating Temperature | 100°C |
| For Use With | Power TransFormers |
| Standards/Approvals | IEC 62317-9 |
| Core Size | ELP 64/10/50 |
| AL Rating | 12500nH |
| Core Type | EELP 64 |
Key Features
- Constructed from high-quality N87 ferrite material ensuring excellent magnetic properties.
- Core size ELP 64/10/50 featuring a length of 64mm, width 50.8mm, and depth 10.2mm for low-profile transformer designs.
- AL rating of 12500 nH suitable for efficient inductance applications in power transformers.
- Complies with IEC 62317-9 standard ensuring international quality and reliability.
- Maximum operating temperature of 100°C enabling stable operation in demanding environments.
- Ideal for use with power transformers requiring planar E shape cores.
- Manufactured in the Czech Republic, ensuring high production standards.
Product Description
TDK B66295G0000X187 Transformer Ferrite Core ELP 64/10/50 is engineered with N87 material offering superior magnetic properties suitable for power transformer applications. This planar E shape core provides a compact, low-profile design ideal for modern magnetic devices.
The core size measures 64mm in length, 50.8mm in width, and 10.2mm in depth, perfectly designed to fit power transformers where flat Transformer Cores are required. With an AL rating of 12500 nH, it delivers efficient inductance performance.
Conforming to IEC 62317-9 standards, this core ensures quality compliance and dependable performance in industrial and commercial electronics. Its maximum operating temperature rating of 100°C allows for reliable operation in a range of thermal environments.
Constructed from N87 ferrite material ensuring excellent magnetic characteristics. Core dimensions include 64mm length, 50.8mm width, and 10.2mm depth for planar E shape applications. AL rating of 12500 nH enables precise inductance for power transformer designs.
Compliance with IEC 62317-9 standard for quality assurance. Rated for maximum operating temperature of 100°C for thermal stability. Perfect for power transformers needing flat, low profile cores. Manufactured in Czech Republic adhering to high production standards.
This ferrite core is widely suitable for industrial electronics, power supply transformers, and other electrical engineering applications requiring efficient magnetic cores. For optimal performance and compatibility, it is recommended for use specifically within power transformers.
Discover more electric transformer components and ferrite cores in our comprehensive catalog to support your industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The core measures 64mm in length, 50.8mm in width, and 10.2mm in depth.
It has an AL rating of 12500 nH, suitable for efficient inductance applications in power transformers.
The core is constructed from N87 ferrite material, which ensures excellent magnetic properties.
The maximum operating temperature is rated at 100°C, allowing for stable operation in demanding environments.
It complies with the IEC 62317-9 standard, ensuring international quality and reliability.
It is specifically designed for use with power transformers requiring planar E shape cores.
The core size is classified as ELP 64/10/50, indicating its dimensions and shape.
It is manufactured in the Czech Republic, adhering to high production standards.
It is suitable for industrial electronics, power supply transformers, and other electrical engineering applications requiring efficient magnetic cores.
The core type is designated as EELP 64, which is a specific configuration for planar applications.
The ferrite core's N87 material and AL rating of 12500 nH enhance inductance performance, contributing to the overall efficiency of power transformers.
Key features include its N87 material construction, AL rating of 12500 nH, compliance with IEC 62317-9, and a maximum operating temperature of 100°C.
