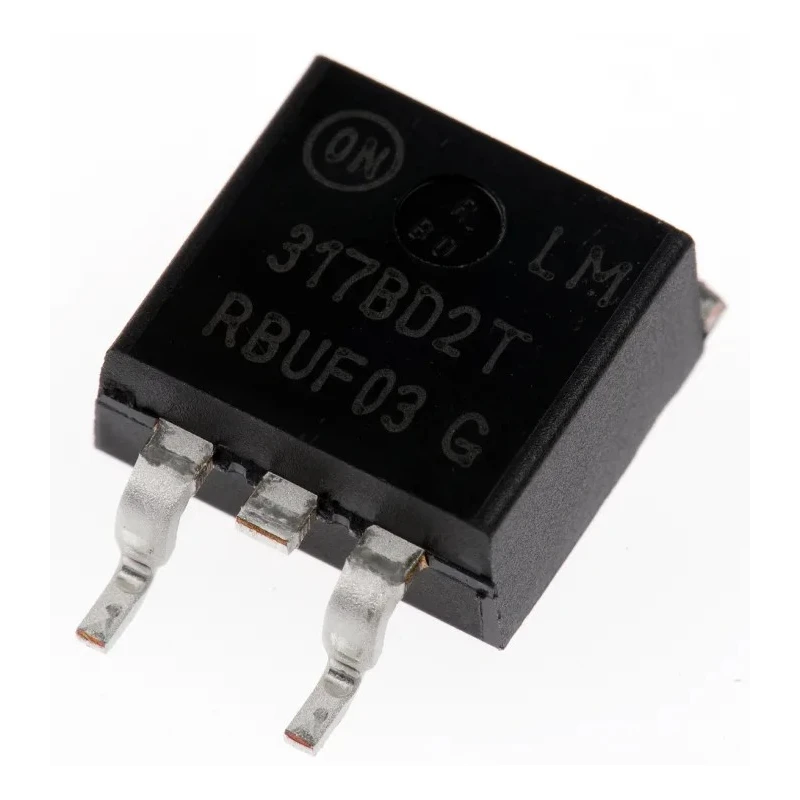

onsemi Surface Mount Positive Voltage Regulator 3-Pin 40V 1.5A LM317BD2TG
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | Regulators onsemi LM317BD2TG, Voltage Regulator 40V 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 4.57mm |
| Length | 10.24mm |
| Model | LM317BD2TG |
| Width | 9.35mm |
| Mount Type | Surface |
| Series | LM317 |
| Output Current | 1.5 A |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 40V |
| Quiescent Current | 4mA |
| Output Voltage Range | 1.25 V to 37 V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Adjustable output voltage range from 1.25 V to 37 V.
- Capable of delivering output current of 1.5 A with thermal and short circuit protection.
- Compact surface-mount design suitable for PCB mounting.
- Features quiescent current of 4 mA enhancing efficiency.
- Meets automotive standard AEC-Q100 for reliability in automotive applications.
- Maximum operating temperature up to 125°C for robust performance.
- Positive polarity voltage regulator suitable for power management IC applications.
- Manufactured in Czech Republic ensuring quality and origin authenticity.
Product Description
onsemi LM317BD2TG is a high-performance surface mount adjustable linear voltage regulator featuring a 3-pin positive polarity package. It supports an input voltage up to 40 V and delivers an output current of 1.5 A, making it suitable for a wide variety of power management applications within electronics and electrical systems.
This regulator enables an adjustable output voltage range from 1.25 V to 37 V, allowing precision voltage regulation in various applications including automotive, industrial, and consumer electronics. The device integrates essential protection features such as short-circuit current limiting, thermal shutdown, and safe-area compensation to ensure reliable operation under demanding conditions.
Designed for surface mount technology, the LM317BD2TG comes in a compact form factor with dimensions 10.24 mm length, 9.35 mm width, and 4.57 mm height, facilitating easy integration on modern PCBs. It features a low quiescent current of 4 mA, enhancing power efficiency especially in battery-powered and portable devices.
The product meets the AEC-Q100 automotive standard, certifying its suitability and robustness for automotive systems requiring stringent reliability. Its high maximum operating temperature of 125°C provides stable operation even in elevated thermal environments.
Adjustable output voltage from 1.25 V to 37 V. Output current capability of 1.5 A with protection features. Compact surface mount package dimensions enable versatile PCB use. Low quiescent current of 4 mA for energy-efficient operation.
Compliance with automotive standard AEC-Q100 ensures reliability. Maximum operating temperature rating of 125°C for durability. Manufactured in the Czech Republic ensuring product quality.
This Voltage Regulator is ideal for use in industrial power management, automotive electronics, consumer devices, and laboratory equipment requiring stable and adjustable voltage outputs. Its robust protection mechanisms and compliance with automotive standards make it well-suited for safety-critical applications.
Explore more high-quality semiconductor solutions in the Power Management IC category at EnvMart for reliable and efficient voltage regulation devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM317BD2TG has an adjustable output voltage range from 1.25 V to 37 V.
This model can handle a maximum input voltage of 40 V.
It is capable of delivering an output current of 1.5 A.
The dimensions of this unit are 10.24 mm in length, 9.35 mm in width, and 4.57 mm in height.
The quiescent current of the LM317BD2TG is 4 mA, enhancing its efficiency.
The maximum operating temperature for this model is 125°C.
It meets the AEC-Q100 automotive standard, ensuring reliability for automotive applications.
This voltage regulator is designed for surface mounting on PCBs.
It includes short-circuit current limiting, thermal shutdown, and safe-area compensation for reliable operation.
This model is suitable for various applications including automotive electronics, industrial power management, and consumer devices.
The LM317BD2TG is a positive polarity voltage regulator.
It is manufactured in the Czech Republic, ensuring quality and origin authenticity.
