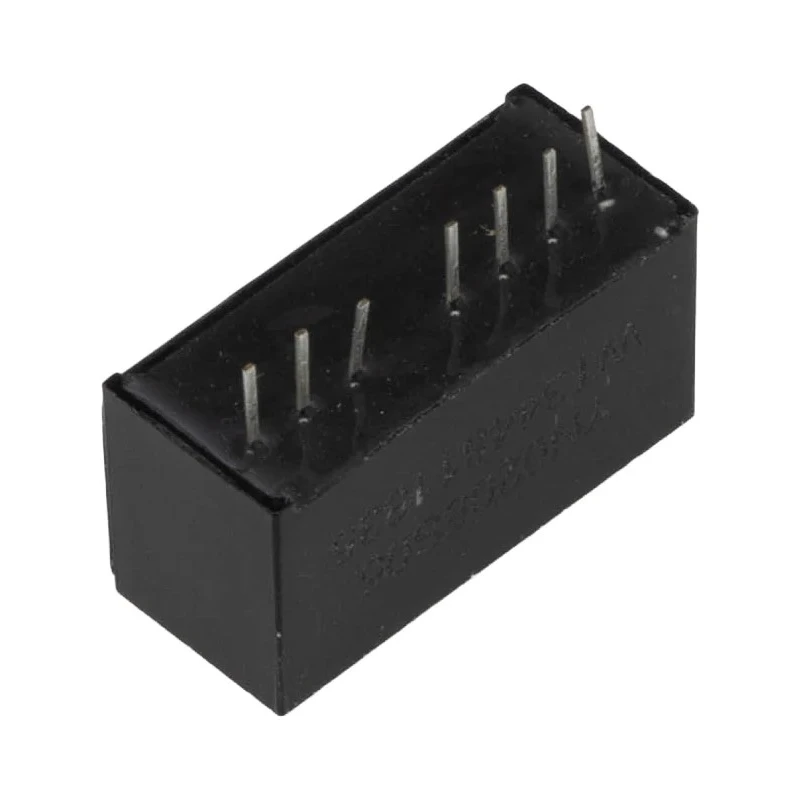

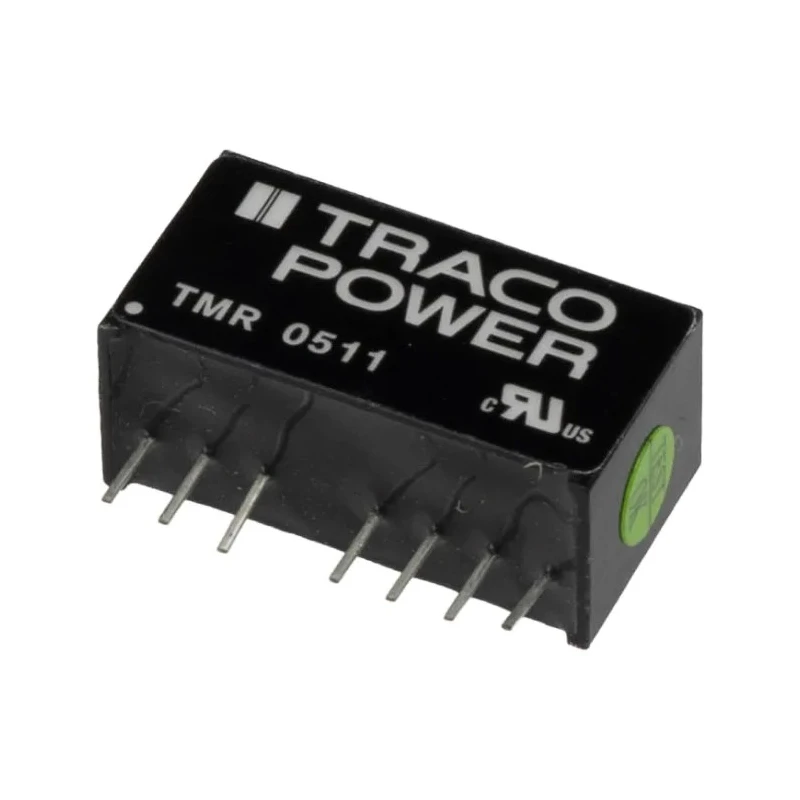

TRACOPOWER Regulated Isolated DC/DC Converter 5V DC 400mA, 9V DC Input, 4.5V Input, 1W Power PCB SIP Package TMR 0511
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMR 2 DC/DC Converter, 5V dc/ 400 mA, 9 |
| Brand | TRACOPOWER |
| Efficiency | 80% |
| Length | 21.8mm |
| Model | TMR 0511 |
| Depth | 11.1mm |
| Width | 9.2mm |
| Mount Type | PCB |
| Series | TMR 2 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 9V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 400mA |
| Output Voltage Adjustment Range | 4.5/9 V |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Wide 2 | 1 input voltage range |
Key Features
- Compact SIP-8 package with a small footprint of approximately 2.0 cm2 for space-critical PCBs.
- High efficiency up to 80%, ensuring low power loss during operation.
- Temperature tolerant design functioning from -40°C to 85°C for reliable industrial use.
- Features remote On/Off control and continuous short circuit protection for enhanced safety.
- Offers 1.6kV DC isolation voltage for effective separation of input and output circuits.
- Full Surface Mounted Device (SMD) design for automated PCB assembly.
- Complies with RoHS directives and UL/cUL 60950-1, IEC/EN 60950-1 safety standards.
- Mean time between failures (MTBF) approximately 1,000,000 hours for dependable performance.
Product Description
TRACOPOWER TMR 0511 is a 2W regulated and isolated DC/DC converter module offering a 5V DC output voltage with a 400mA output current capability. It supports input voltages of 9V DC maximum and 4.5V DC minimum, with a wide 2:1 input range, housed in a compact SIP-8 (Single Inline Package) plastic package ideal for printed circuit board applications.
This converter is designed for demanding industrial, communication, instrumentation, and electronic applications requiring regulated power with high efficiency (80%) and reliable temperature operation from -40°C to +85°C. It provides continuous short circuit protection, remote On/Off control, and an isolation voltage rating of 1.6kV DC to safeguard sensitive circuitry.
Its compact size (21.8mm length, 9.2mm width, 11.1mm depth) occupies minimal board space while ensuring robust electrical performance. The SIP package enables easy mounting on PCBs with its 6-pin connection system.
The module complies fully with RoHS standards, guaranteeing environmentally friendly manufacturing. It is certified to UL/cUL 60950-1 and IEC/EN 60950-1 safety standards, making it a dependable choice for certified products.
Wide operating temperature range from -40°C to 85°C. Indefinite short circuit protection to prevent device damage. Remote On/Off control functionality for flexible system management. Full SMD design facilitating modern manufacturing techniques.
Compact SIP-8 package with a small footprint of 2.0 cm2. Isolation voltage of 1.6kV DC between input and output. High mean time between failures (MTBF) of approximately 1,000,000 hours.
This DC/DC converter is highly suitable for industrial electronics, communications devices, instrumentation panels, and other electronics where stable and efficient isolated DC supply power is required in a compact footprint. The TMR 0511 model from TRACOPOWER offers a reliable and efficient solution in a user-friendly form factor.
Explore more DC/DC converters and related power supply modules in the Electronics & Electricals category at EnvMart.
Explore more products in our DC-DC Converter category.
