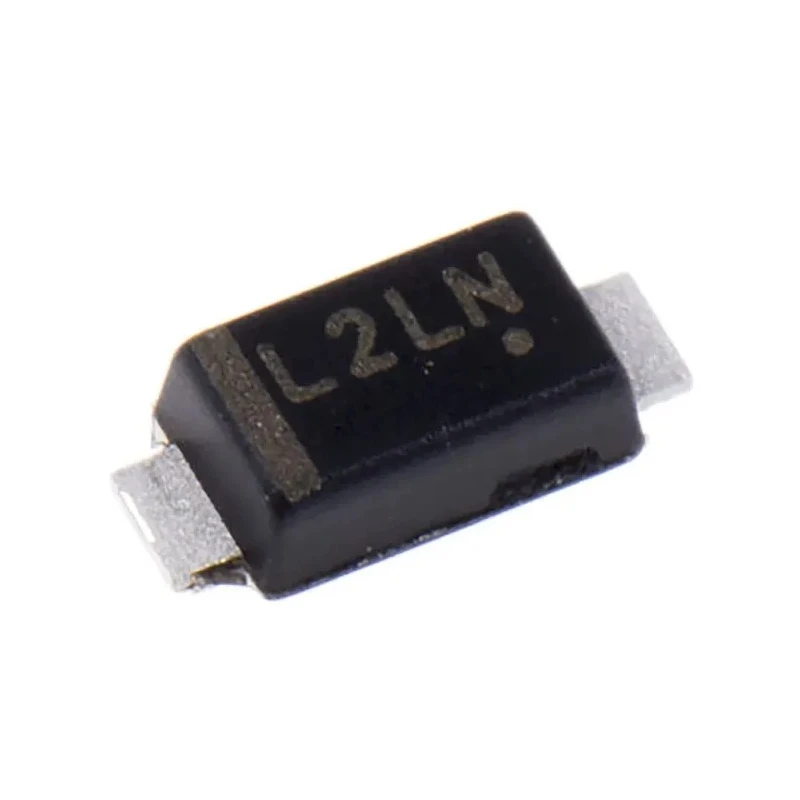

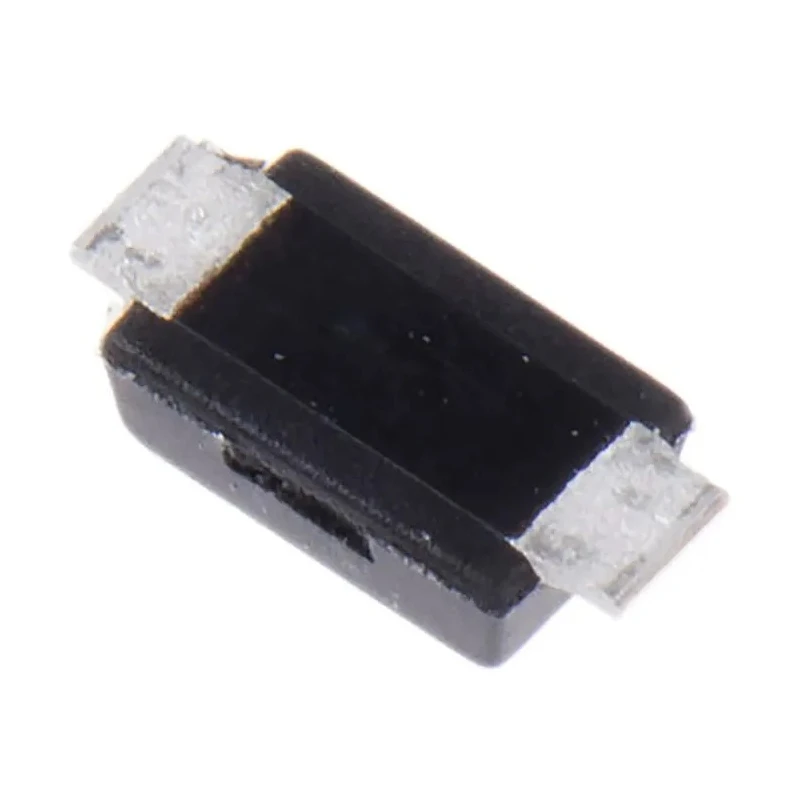

ROHM Schottky Diode 30 V 1 A Surface Mount 2-Pin SOD-123FL RSX101MM-30TR

ROHM RSX101MM-30TR is a Schottky diode designed for use in electronic and semiconductor applications requiring efficient, low-loss switching and rectification at low voltages and currents. Featuring a surface mount SOD-123FL package, this diode provides excellent integration in compact PCB layouts.

Its electrical ratings include a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 30 volts, suitable for low-voltage fast switching circuits. The diode's low forward voltage drop of 390 millivolts helps improve circuit efficiency by reducing power dissipation during conduction.

The peak non-repetitive forward surge current rating of 45 amperes enables it to endure sudden transient current spikes, enhancing durability in various applications including industrial power supplies and consumer electronics.

The diode can operate reliably up to 150°C, making it applicable for moderate temperature environments commonly encountered in automotive electronics and industrial devices. With a single diode configuration and two pins, the RSX101MM-30TR facilitates straightforward implementation on printed circuit boards.

The very low peak reverse current of 200 microamps ensures minimal leakage currents, improving performance in precision circuitry and increasing overall energy efficiency.

Industrial and commercial applications include power rectification, protection circuits, voltage clamping, and freewheeling diode roles in DC-DC converters and switching power supplies. The compact size and surface mount configuration make it ideal for modern electronic designs where space is critical.

ROHM is renowned for high-quality semiconductor components, and the RSX101MM-30TR diode meets the necessary performance and reliability standards for demanding electronics manufacturing.

Maximum continuous forward current of 1 A ensures reliable current handling. Peak reverse repetitive voltage of 30 V protects against high voltage surges. Compact SOD-123FL package measures 2.6 mm length, 1.6 mm width, and 0.8 mm height.

Low forward voltage of 390 mV offers reduced power loss in circuits. Peak non-repetitive forward surge current of 45 A withstands large transient currents. Operates up to a maximum temperature of 150 degrees Celsius. Single diode configuration with 2 pins facilitates easy PCB mounting.

Peak reverse current is only 200 microamps to minimize leakage. Explore more high quality semiconductor diodes and electronic components in the ROHM product range on EnvMart.
