ROHM Brushed DC Motor Driver IC 500 mA 8-Pin SOP BD6210F-E2

Free Delivery in India | Lowest Global Shipping Charges

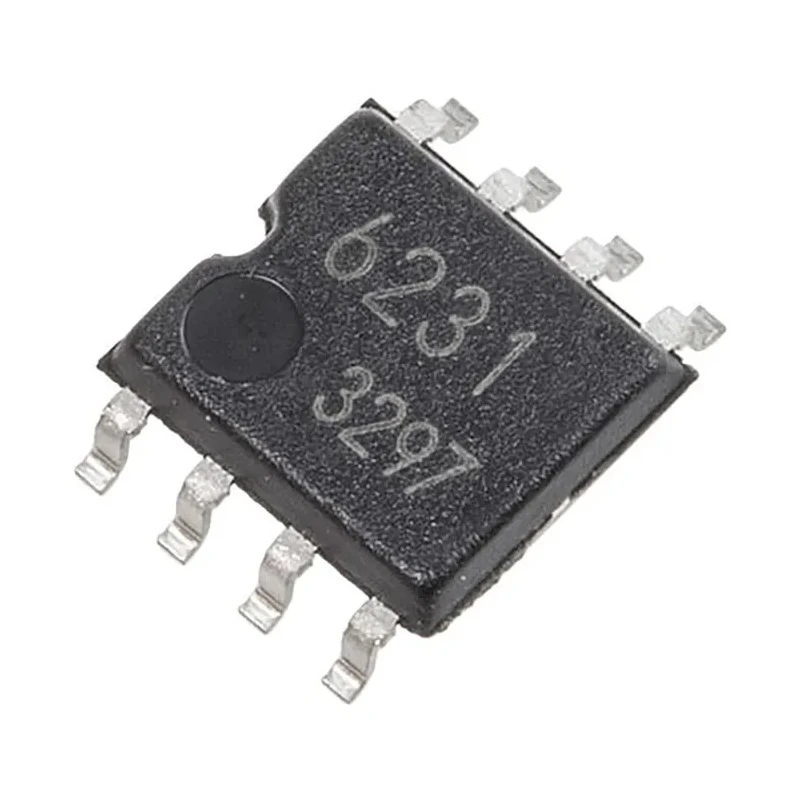

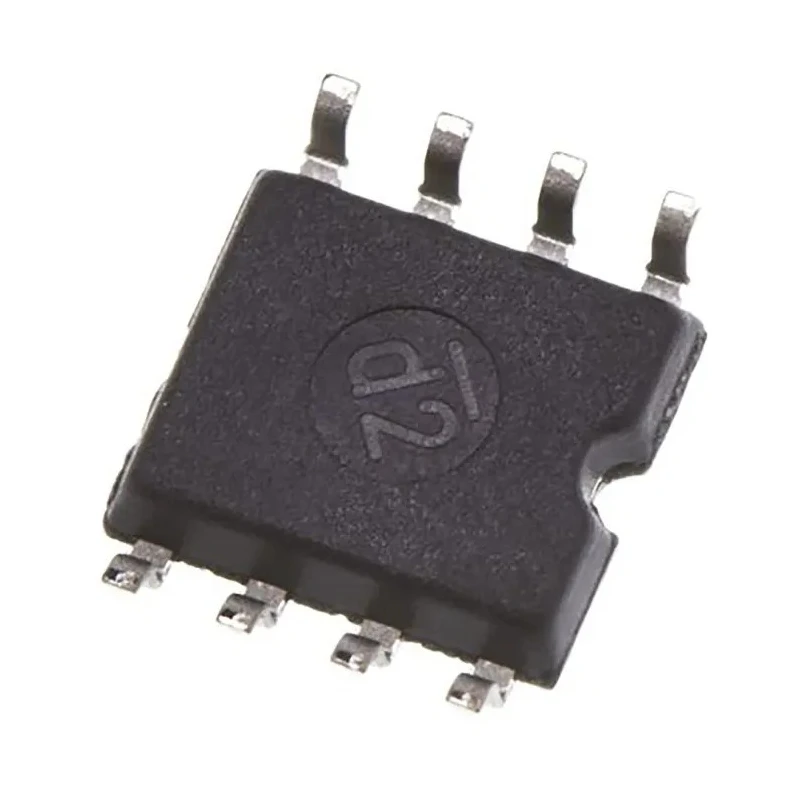

ROHM Brushed DC Motor Driver IC 500 mA 8-Pin SOP BD6210F-E2

Name: ROHM Brushed DC Motor Driver IC 500 mA 8-Pin SOP BD6210F-E2
Brand: ROHM
SKU: 142268
Price: 1.79 USD
Availability: InStock



Category Motor Driver IC Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	1.5mm
Length	5mm
Model	BD6210F-E2
Width	4.4mm
Motor Type	Brushed DC Motor
Mount Type	Surface
Series	BD621xxx
Output Current	2A
Maximum Operating Temperature	85°C
Package Type	SOP
Minimum Operating Temperature	-40°C
Pin Count	8
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	3V
Supply Current	400μA
Maximum IGBT Collector Current	500mA
Typical Switching Frequency	25kHz
Inverter Power Rating	0.68W

Key Features

Supports brushed DC motors for precise control.
Maximum IGBT collector current rated at 500 mA.
Operates with supply voltage from 3 V to 5.5 V.
Typical switching frequency is 25 kHz for smooth motor operation.
Compact SOP package with 8 pins for easy surface mounting.
Wide operating temperature range from -40°C to 85°C.
Low supply current consumption at 400 μA for energy efficiency.
Inverter power rating of 0.68 W suitable for various motor drivers.

Product Description

ROHM BD6210F-E2 is a Brushed DC Motor Driver IC designed for efficient and reliable motor control applications in industrial, automotive, and consumer electronics. Operating within a voltage range of 3 V to 5.5 V, this 8-pin SOP packaged IC provides an output current capacity of up to 500 mA, making it suitable for driving small to medium brushed DC motors with precision and stability.

The device features a typical switching frequency of 25 kHz, which ensures smooth motor operation with minimal noise and vibration. It supports a wide operating temperature range from -40°C to 85°C, making it robust in harsh environmental conditions. With a low supply current consumption of 400 μA, the BD6210F-E2 offers energy-efficient performance optimal for battery-powered and portable equipment.

The compact surface-mount SOP package (8-pin, dimensions 5 mm length × 4.4 mm width × 1.5 mm height) allows for streamlined PCB design and integration into motor control modules. The inverter power rating is 0.68 W, providing adequate power handling capacity for diverse motor driver applications. While it does not possess automotive standards approval, this IC remains a reliable choice for various electronic control and automation systems.

This motor driver IC is commonly utilized in industrial machinery, robotics, HVAC systems, home appliances, and laboratory equipment, enhancing motor control accuracy and operational efficiency.

Supports brushed DC motors for precise control. Maximum IGBT collector current rated at 500 mA. Operates with supply voltage from 3 V to 5.5 V. Typical switching frequency is 25 kHz for smooth motor operation. Compact SOP package with 8 pins for easy surface mounting.

Wide operating temperature range from -40°C to 85°C. Low supply current consumption at 400 μA for energy efficiency. Inverter power rating of 0.68 W suitable for various motor drivers.

For detailed design integration, users can access technical documents such as datasheets and application notes provided by ROHM Semiconductor. This product is part of the BD621xxx series, known for reliable motor driver ICs.
