C & K IP67 Black Tactile Switch Button SPST 10mA 32 V dc Surface Mount

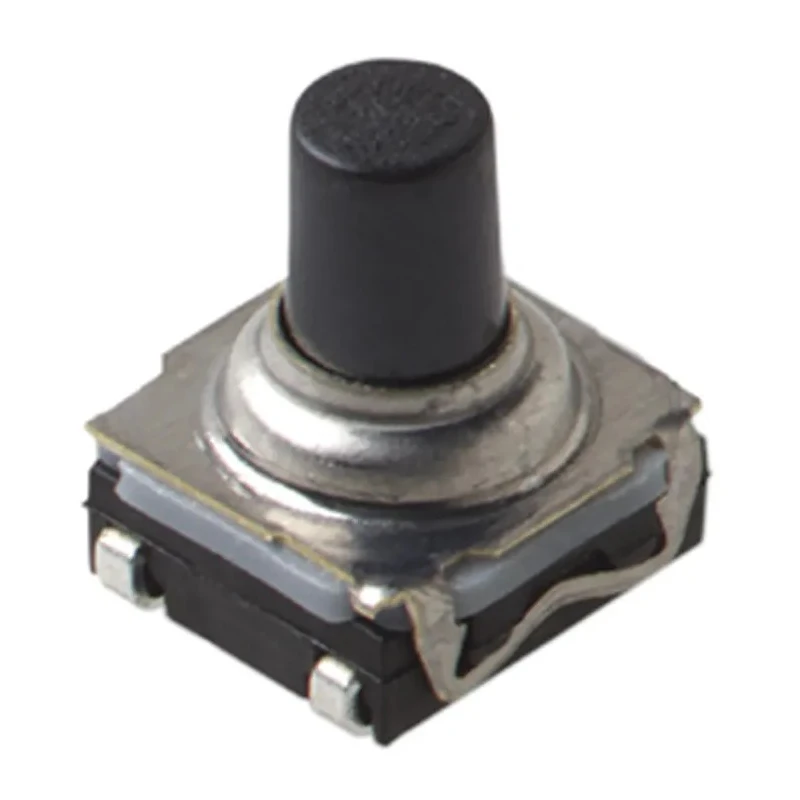

Name: C & K IP67 Black Tactile Switch Button SPST 10mA 32 V dc Surface Mount
Brand: C & K
SKU: 204318



Category Tactile Switch Brand C & K Condition New

Specifications

Country of Origin	France
Brand	C & K
Height	3.5mm
Length	6.8mm
Model	IP67
IP Rating	IP67
Width	6.8mm
Mount Type	Surface
Series	KSC
Maximum Operating Temperature	125°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-40°C
Terminal type	J Bend
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Black
Contact DC Voltage	32V dc
Actuator Style	Button
Actuator Orientation	Straight
Switch Contact Current	10mA
Operating Force	1.7N
Mechanical Life	300000Cycles

Key Features

This switch has a compact 6.8mm by 6.8mm footprint suitable for space-limited PCBs.
Offers a momentary switch operation with SPST contact configuration.
Equipped with J bend terminal type for secure surface mounting.
Rated for 10mA switch contact current and 32V DC voltage compatibility.
Operates reliably within -40°C to 125°C temperature range.
Mechanical life expectancy of up to 300,000 cycles ensuring long service.
IP67 rated sealing provides dust-tight and immersion protection.
Black button actuator with a straight orientation and 1.7N operating force.

Product Description

C & K KSC623J LFG is an IP67 rated black tactile switch button designed for surface mounting applications on printed circuit boards where space is limited. It features a momentary SPST contact configuration with a J bend termination type for reliable connection and mounting.

Measuring 6.8 mm in length and width, and 3.5 mm in height, it offers a small footprint while delivering a positive tactile feel through its hard button actuator. With an operating force of 1.7N, it ensures user feedback during activation.

The switch is rated for a maximum contact current of 10mA and supports a DC voltage of 32V, suitable for low power electronic circuits. Its robust IP67 sealing protects against dust ingress and temporary immersion in water, making it highly suitable for demanding environments.

It performs reliably across a temperature range from -40°C to 125°C, making it ideal for automotive, industrial electronics, mobile phones, lifts, and network infrastructure applications. The KSC623J LFG switch supports momentary on-off switching with a mechanical life of up to 300,000 cycles, providing durability for long-term use.

This switch features SPST contact configuration for simple on-off control. J bend terminal type ensures a secure surface mount connection. The IP67 rating offers superior protection from dust and water. Black button actuator with straight orientation for consistent tactile feedback.

Mechanical life of 300,000 cycles supports extended durability. Operating temperature range from -40°C to 125°C suits industrial environments. Compact dimensions make it ideal for space-constrained PCB designs. RoHS compliant, meeting environmental and safety regulations.

Manufactured in France ensuring high quality and reliability.

These C & K tactile switches are well-suited for use in industrial electronics, automotive controls, telecommunications, mobile devices, and instrumentation. Their IP67 seal and robust mechanical design ensure dependable performance in harsh or demanding environments.
