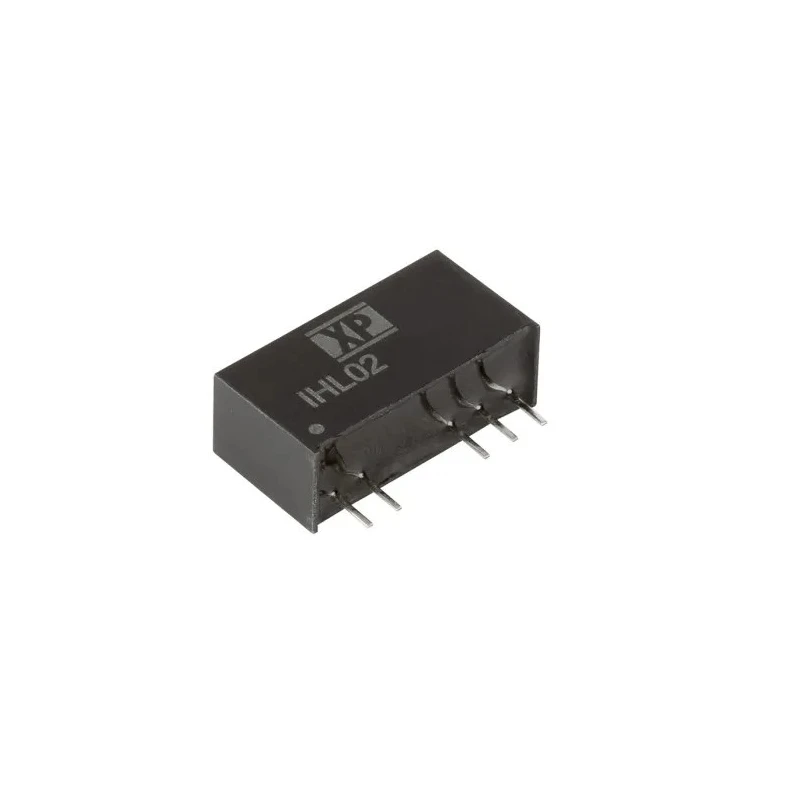

XP Power IHL02 Dual Output Isolated DC/DC Converter 12V and -12V, 83mA Output, 2W SIP Package IHL02
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IHL02 DC/DC Converter, 12V, -12 V/ 83 mA |
| Brand | XP Power |
| Efficiency | 83% |
| Length | 19.5mm |
| Model | IHL02 |
| Depth | 10mm |
| Width | 7.2mm |
| Mount Type | Through Hole |
| Series | IHL02 |
| Maximum Operating Temperature | 95°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2500000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 5.5V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 12, -12V |
| Output Current 1 | 83mA |
| Isolation Voltage | 5.2kV dc |
Key Features
- High isolation voltage rating of 5.2 kV DC ensures reliability in challenging environments.
- Wide input voltage range from 4.5 V to 5.5 V DC accommodates varying supply conditions.
- Through hole mounting type for easy PCB integration.
- Operating temperature range from -40°C to 95°C suits industrial applications.
- Compact SIP package measuring 19.5 mm length by 7.2 mm width and 10 mm depth.
- Efficiency rating of 83% for optimized power delivery.
- MTBF rated at 2.5 million hours for long service life.
- Designed for use with MOSFET and IGBT drivers.
Product Description
XP Power IHL02 model is a dual output isolated DC/DC converter providing stable 12 V and -12 V outputs with a maximum current of 83 mA and a power rating of 2 W in a SIP7 through hole package. It operates efficiently within an input voltage range of 4.5 V to 5.5 V DC, making it suitable for a variety of DC power supply applications.
The converter features a high isolation voltage of 5.2 kV DC, ensuring robust performance and electrical isolation in sensitive industrial, electronic, and communication equipment.
Operating temperature ranges from -40°C to 95°C, enabling reliable function under harsh environmental conditions. The compact dimensions of 19.5 mm length, 7.2 mm width, and 10 mm depth allow for space-saving PCB layouts.
Its industry-standard SIP package facilitates straightforward integration into existing systems or upgrades. With 7 pins and thorough design optimizations, this converter achieves 83% efficiency, supporting energy-conscious designs.
It has been engineered for long service life with an MTBF (Mean Time Between Failures) of 2.5 million hours, offering durability for critical applications with bipolar output suitable for driving MOSFETs and IGBTs.
High isolation voltage of 5200 V DC supports reliable operation. Wide input voltage range and dual outputs enhance versatility. Compact SIP package simplifies installation. High efficiency reduces energy loss. Designed for industrial and electronic power applications.
High MTBF promises extended operational lifetime.
This converter is ideal for industrial automation, instrumentation, telecommunications, and power management circuits requiring isolated dual-voltage rails. XP Power is renowned for quality and reliability in power supply components.
Explore EnvMart’s Electronics & Electricals category for more DC/DC Converter solutions and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual outputs of 12V and -12V.
The maximum output current is 83 mA.
It operates within an input voltage range of 4.5 V to 5.5 V DC.
The converter measures 19.5 mm in length, 7.2 mm in width, and 10 mm in depth.
It has an efficiency rating of 83%.
The isolation voltage is rated at 5.2 kV DC.
The operating temperature range is from -40°C to 95°C.
This model features two outputs.
It utilizes a through hole mounting type for easy PCB integration.
The MTBF is rated at 2.5 million hours.
This converter comes in a compact SIP package.
The country of origin for this model is Taiwan.
