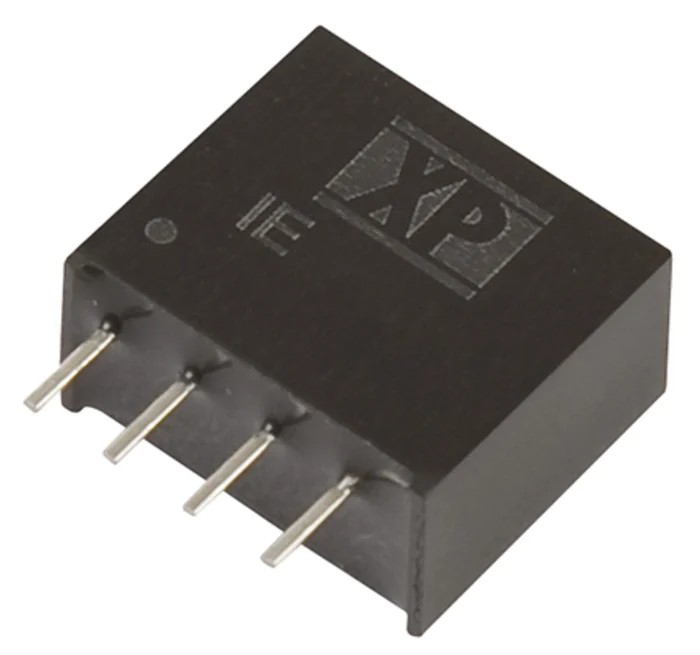

XP Power DC/DC Converter, 1 W, 24 V dc Output, 200 mA, 21.6 V Min Input, 26.4 V Max Input, Through Hole Mount, DIP IE2424SH
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IE DC/DC Converter, 24V dc/ 200 mA, 26 |
| Brand | XP Power |
| Efficiency | 80% |
| Length | 11.68mm |
| Model | IE2424SH |
| Depth | 10.15mm |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | IE |
| Maximum Operating Temperature | 90°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 26.4V dc |
| Minimum Input Voltage | 21.6V |
| Number of Pins | 8 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 3kV dc |
Key Features
- Provides a stable 24 V dc output voltage with 200 mA current capacity.
- Designed for through-hole mounting with an 8-pin DIP package for easy PCB integration.
- Offers an isolation voltage of 3 kV dc to protect circuit components.
- Operates efficiently up to 80% to reduce energy loss and heat generation.
- Wide operating temperature range from -40 °C to 90 °C for versatile industrial applications.
- Compact size with dimensions 11.68 mm length, 6 mm width, and 10.15 mm depth.
- High reliability with a MTBF rating of 1,100,000 hours for long-term usage.
- Ideal for use in power supplies, electronic devices, and industrial control systems.
Product Description
XP Power IE2424SH DC/DC Converter is a compact and reliable isolated converter delivering 1 W maximum output power with a single output of 24 V dc and 200 mA current. It features a through-hole mounting DIP package with 8 pins, ideal for industrial and electronic component power supply applications.
Designed for robust performance, this converter supports a wide input voltage range from 21.6 V to 26.4 V dc and provides galvanic isolation with a 3 kV dc isolation voltage rating, making it suitable for sensitive electronics and control systems.
The converter operates efficiently with up to 80% efficiency, helping to minimize power loss and thermal issues. Its operating temperature range from -40 °C to a maximum of 90 °C ensures stability across various environmental conditions.
With an MTBF rating of 1,100,000 hours, the IE2424SH guarantees high reliability in continuous operation. Its compact dimensions (11.68 mm × 6 mm × 10.15 mm) allow a space-saving solution within embedded systems.
This product is manufactured in Taiwan, Province Of China, adhering to rigorous quality and performance standards. Provides a stable 24 V dc output voltage with 200 mA current capacity. Designed for through-hole mounting with an 8-pin DIP package for easy PCB integration.
Offers an isolation voltage of 3 kV dc to protect circuit components. Operates efficiently up to 80% to reduce energy loss and heat generation. Wide operating temperature range from -40 °C to 90 °C for versatile industrial applications.
Compact size with dimensions 11.68 mm length, 6 mm width, and 10.15 mm depth. High reliability with a MTBF rating of 1,100,000 hours for long-term usage. Ideal for use in power supplies, electronic devices, and industrial control systems.
Made in Taiwan, Province Of China, ensuring quality manufacturing standards.
This DC/DC converter is especially suitable for electronics manufacturing, industrial control, telecommunications, and instrumentation requiring stable isolated voltage conversion. Its efficient performance and compact form factor ensure seamless integration into power supply modules.
Explore a comprehensive range of DC/DC Converters from XP Power and other leading brands at EnvMart for your industrial, commercial, and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a stable output voltage of 24 V dc with a current capacity of 200 mA.
The input voltage range is from 21.6 V to 26.4 V dc.
The maximum output power is 1 W.
It is designed for through-hole mounting with an 8-pin DIP package.
The isolation voltage rating is 3 kV dc, which protects circuit components.
It operates efficiently with an efficiency rating of up to 80%.
The dimensions are 11.68 mm in length, 6 mm in width, and 10.15 mm in depth.
The operating temperature range is from -40 °C to 90 °C.
The MTBF (Mean Time Between Failures) rating is 1,100,000 hours.
It is suitable for power supplies, electronic devices, and industrial control systems.
This model is manufactured in Taiwan, Province Of China.
This model has one output.
