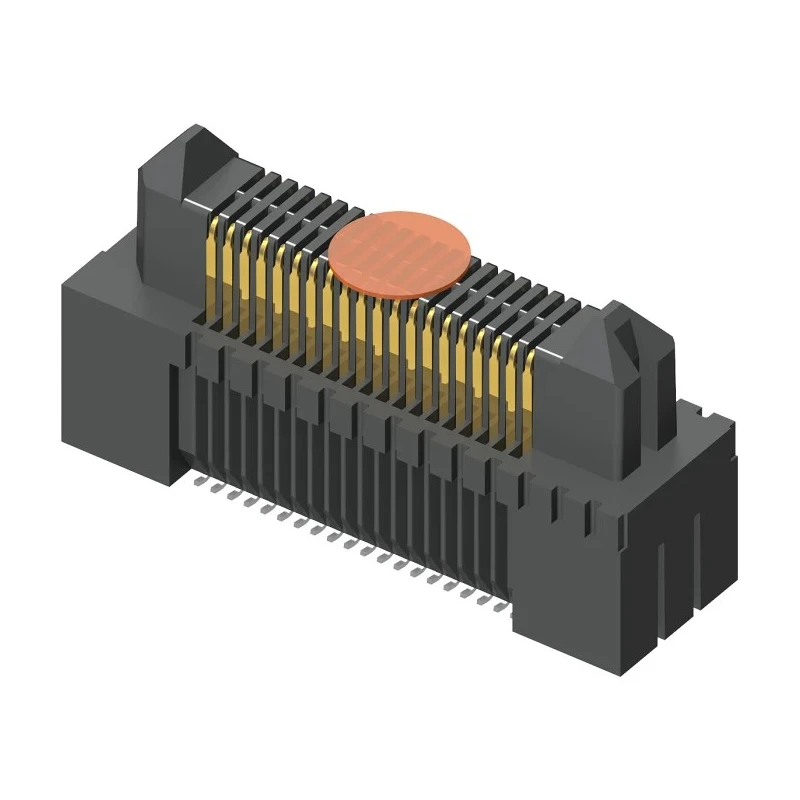

Samtec ERM5 Series Straight Surface PCB Header, 80 Contacts, 0.5 mm Pitch, 2 Row, Shrouded ERM5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 194V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 1.5A |
| Model | ERM5 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ERM5 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 80 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Designed for high-speed SMT board-to-board connections supporting 28 Gbit/s performance.
- Edge Rate contacts with smooth milled surfaces reduce wear and insertion forces.
- Constructed with phosphor bronze contacts plated in gold for durability and conductivity.
- Housing made from liquid crystal polymer ensuring high temperature resistance and stability.
- Supports operating temperatures from -55°C to 125°C for rugged applications.
- Operating voltage rating up to 194V and current rating of 1.5A per contact.
- Shrouded connector design providing enhanced mechanical protection and alignment.
- Compatible with ERF5 series sockets to create mating heights from 7 mm to 12 mm.
Product Description
Samtec ERM5 Series Straight Surface PCB Header ERM5 offers an advanced high-speed board-to-board SMT header connector solution featuring 80 contacts arranged in 2 rows with a fine 0.5 mm pitch. This shrouded, straight orientation header is designed to deliver 28 Gbit/s performance for demanding electronics applications including industrial, telecommunications, computing, and networking equipment.
The contacts utilize ruggedized Edge Rate technology with a smooth milled surface to reduce mechanical wear and provide high durability across many mating cycles. This design also lowers insertion and withdrawal forces, allowing connectors to be 'zippered' when disconnected, improving maintenance ease.
Constructed of phosphor bronze contact material with gold plating, the connector ensures excellent electrical conductivity and corrosion resistance. The liquid crystal polymer housing provides thermal stability with an operating temperature range from -55°C up to 125°C, supporting harsh environmental conditions.
This PCB header is surface mount compatible with board-to-board connector systems and features solder termination for secure PCB attachment. It is shrouded to enhance mechanical protection and alignment during mating.
Compatible with the ERF5 series board-to-board sockets, it enables flexible mating heights from 7 mm to 12 mm, making it adaptable for various board stacking requirements. High-speed 0.5 mm pitch SMT board-to-board header supporting 28 Gbit/s data rates.
Rugged Edge Rate contacts with milled surfaces for durability and lower wear. Gold-plated phosphor bronze contacts provide excellent conductivity. Liquid crystal polymer housing withstands high temperatures and harsh conditions.
Operating temperature range from -55°C to 125°C. Electrical ratings of 1.5A current and 194V voltage per contact. Shrouded connector ensures mechanical protection and precise alignment. Compatible with ERF5 sockets offering variable mating heights of 7-12 mm.
This Samtec ERM5 PCB header is ideal for industrial, communication, networking, and computing applications requiring reliable, high-speed board-to-board connections in compact footprints.
Explore more in our Electronics Components PCB Headers category for additional connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 125°C.
The contacts in the ERM5 series are arranged with a pitch size of 0.5 mm.
This unit features a total of 80 contacts arranged in 2 rows.
The current rating for each contact in this PCB header is 1.5A.
The contacts are made of phosphor bronze and are gold plated, while the housing is constructed from liquid crystal polymer.
The voltage rating for this model is up to 194V per contact.
Yes, it is compatible with ERF5 series sockets, allowing for flexible mating heights from 7 mm to 12 mm.
This model uses solder termination for secure attachment to the PCB.
The orientation of this header is straight.
This PCB header is designed for high-speed board-to-board connections in industrial, telecommunications, computing, and networking applications.
The minimum operating temperature for this PCB header is -55°C.
The shrouded design enhances mechanical protection and alignment during mating, reducing wear and insertion forces.
