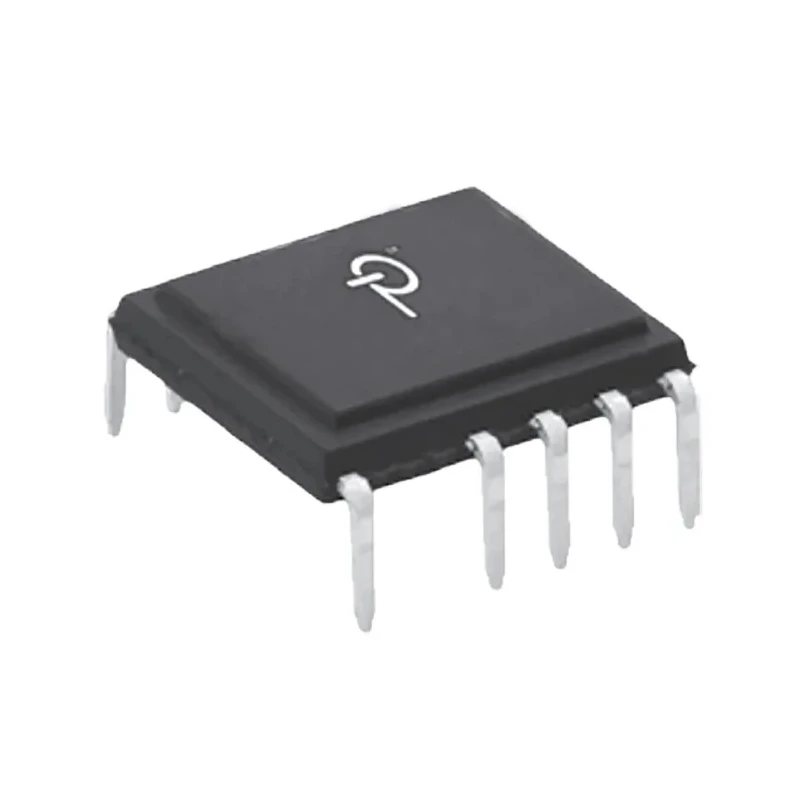

Power Integrations AC/DC Converter 7A 5V DC 11-Pin eDIP-12 TOP266VG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Power Integrations |
| Height | 2.34mm |
| Length | 10.16mm |
| Model | TOP266VG |
| Width | 8.89mm |
| Output Power | 43W |
| Mount Type | Through Hole |
| Maximum Duty Cycle | 83% |
| Series | TOPSwitch-JX |
| Topology | Flyback |
| Maximum Operating Temperature | 150°C |
| Package Type | eDIP-12 |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 132kHz |
| Maximum Input Voltage | 265V ac |
| Maximum Output Current | 7A |
| Standards/Approvals | RoHS |
| Maximum Output Voltage | 5V dc |
| Minimum Input Voltage | 85V ac |
| Pin Count | 11 |
| Supply Current | 1mA |
Key Features
- The converter supports a maximum input voltage of 265V AC and minimum input voltage of 85V AC.
- It delivers output power of 43W with flyback topology for efficient energy conversion.
- Switching frequency is 132 kHz ensuring compact and effective power management.
- Designed for through-hole mounting with a compact size of 10.16mm length, 8.89mm width, and 2.34mm height.
- Operates reliably in a temperature range from -40°C to 150°C for various industrial applications.
- Includes comprehensive protection and control circuitry integrated into a monolithic package.
- RoHS compliant ensuring environmental safety and adherence to standards.
- The TOPSwitch-JX series delivers energy efficiency over the entire load range including low no-load power consumption.
Product Description
Power Integrations TOP266VG AC/DC Converter is a high-performance power management IC designed for offline AC-DC converter applications.
This device integrates a high-voltage power MOSFET, a switched current source, multi-mode PWM controller, oscillator, and comprehensive protection circuitry into a single compact eDIP-12 package.
Capable of handling a maximum input voltage of 265V AC and providing a stable 5V DC output at 7A, this converter delivers up to 43W of output power with flyback topology, ideal for various electronic and industrial power supply needs.
With a switching frequency of 132kHz, it enables compact design solutions suitable for through-hole mounting in demanding environments. The device is designed to operate in a wide temperature range from -40°C to 150°C, making it suitable for harsh industrial and commercial environments.
Its RoHS compliance assures environmentally responsible manufacturing standards. The converter supports a maximum input voltage of 265V AC and minimum input voltage of 85V AC. It delivers output power of 43W with flyback topology for efficient energy conversion.
Switching frequency is 132kHz, ensuring compact and effective power management. Designed for through-hole mounting with dimensions 10.16mm length, 8.89mm width, and 2.34mm height. Operates reliably across a temperature range of -40°C to 150°C.
Integrates protections and control circuitry within a monolithic eDIP-12 package. Part of the TOPSwitch-JX series, optimized for energy efficiency and low no-load power consumption. Meets RoHS environmental standards for safe and sustainable usage.
This AC/DC converter model is suitable for industrial electronics, power management in commercial devices, HVAC systems, and manufacturing equipment requiring robust and efficient power conversion.
Explore more AC/DC Converters and Power Integrations products on EnvMart for your specific power management and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 265V AC.
This converter delivers an output power of 43W.
The switching frequency is 132 kHz, which aids in effective power management.
The dimensions of the eDIP-12 package are 10.16mm in length, 8.89mm in width, and 2.34mm in height.
The minimum input voltage is 85V AC.
It operates reliably in a temperature range from -40°C to 150°C.
This model is designed for through-hole mounting.
The maximum output current is 7A.
It uses flyback topology for efficient energy conversion.
Yes, this converter is RoHS compliant, ensuring it meets environmental safety standards.
This model is part of the TOPSwitch-JX series.
The maximum duty cycle is 83%.
