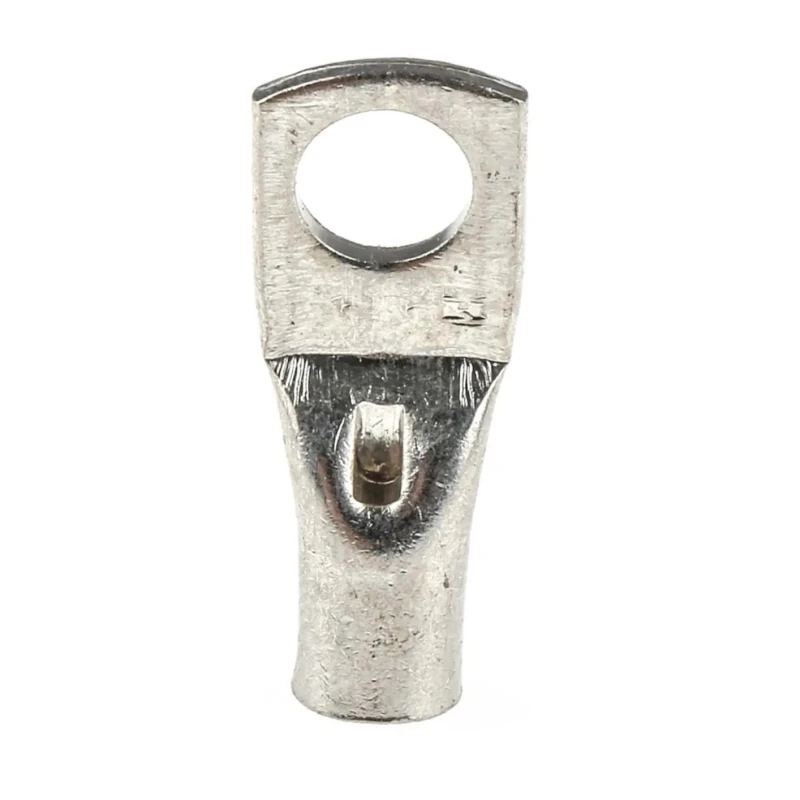

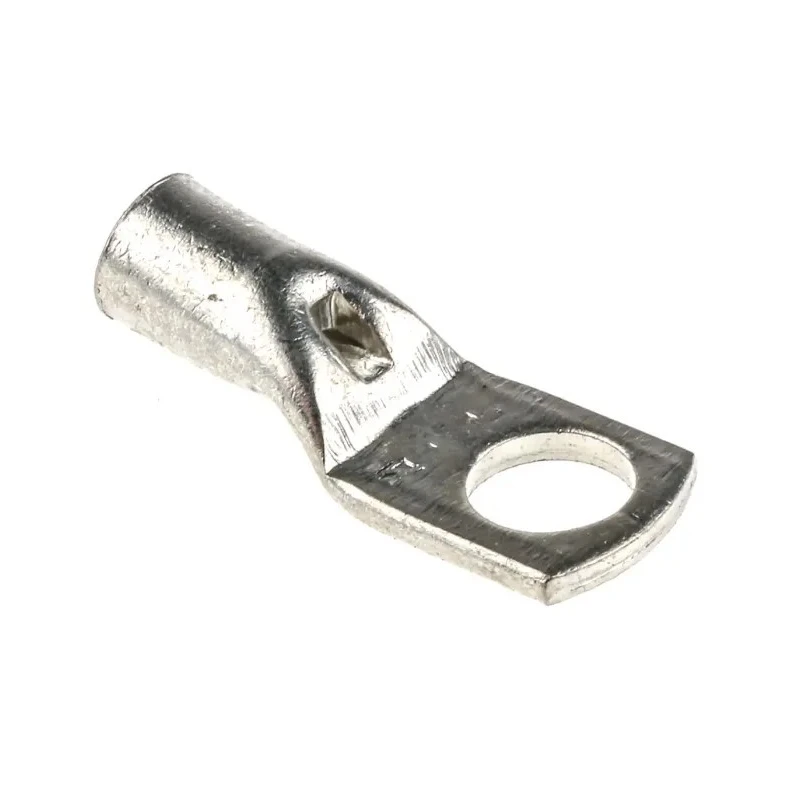

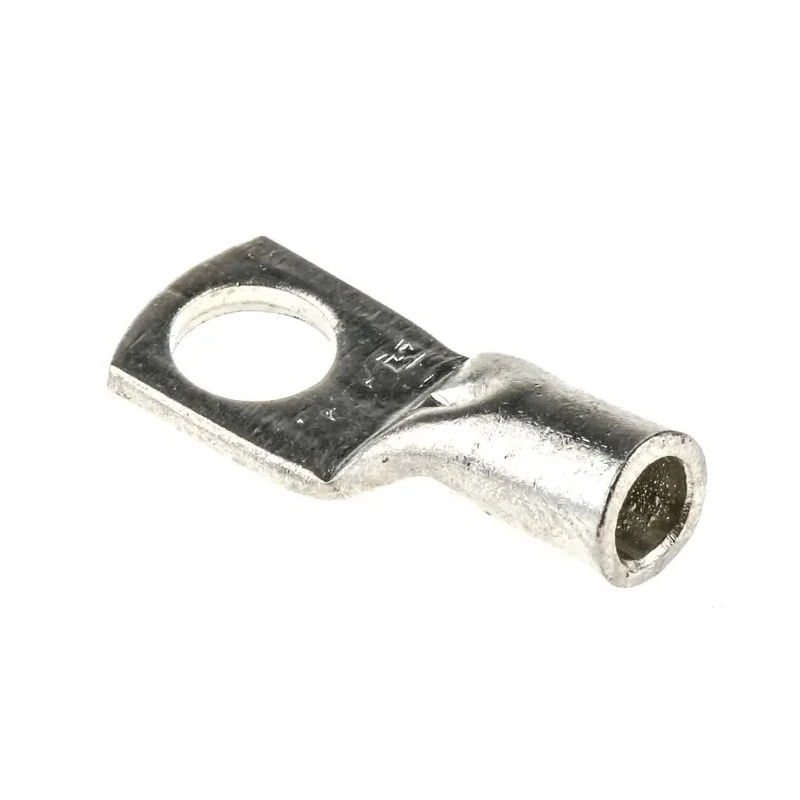

RS PRO Uninsulated Tubular Ring Terminal M6 Stud Size 10 AWG Wire Size Grey RSPRO119-160 119-160

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Uninsulated Tubular Ring Terminal M6 Stud Size 10 AWG Wire Size Grey RSPRO119-160 119-160

Name: RS PRO Uninsulated Tubular Ring Terminal M6 Stud Size 10 AWG Wire Size Grey RSPRO119-160 119-160
Brand: RS PRO
SKU: 141352
Price: 0.46 USD
Availability: InStock



Category Ring Terminal Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Colour	Grey
Model	119-160
Insulation	Uninsulated
Overall Length	23mm
Contact Material	Copper
Series	RS PRO
Maximum Operating Temperature	150°C
Standards/Approvals	RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard
Contact Plating	Tin
Maximum Wire Size mm²	6mm²
Maximum Wire Size AWG	10AWG
Outer Ring Diameter	10mm
Inner Ring Diameter	6.4mm
Stud Size	M6
Standards/Approvals RoHS, ANSI/ESD S20.20	2021 Electrostatic Control Standard
RND, RND 465 Uninsulated Tubular Ring Terminal, 1/4 Stud Size, SilverBrand	RND

Key Features

Heavy-duty tubular design ensures robust performance and secure cable connection.
Uninsulated construction suitable for applications with no short-circuit risk from exposed terminals.
Constructed from copper with tin plating for excellent conductivity and corrosion resistance.
Features a funnel-shaped internal barrel for easy wire insertion and crimping.
Rated for maximum operating temperature of 150°C for reliable performance under heat.
Ideal for industrial control systems, automotive wiring, communication equipment, and power supplies.
Overall 23mm length with 10mm outer ring diameter and 6.4mm inner ring diameter for compatibility with M6 stud size.

Product Description

RS PRO 119-160 uninsulated tubular ring terminal is a premium quality electrical connector intended for use with an M6 stud size and 10 AWG wire size. This grey ring terminal provides a secure and reliable connection in demanding industrial and automotive environments.

The terminal features a thick-walled copper body plated with tin, delivering high conductivity and resistance to corrosion. Its heavy-duty tubular construction ensures a durable connection that can withstand vibration and mechanical stress. The funnel-shaped internal barrel simplifies wire insertion, promoting effective crimping.

Designed to operate safely up to 150°C, this Ring Terminal complies with RoHS and ANSI/ESD S20.20:2021 electrostatic control standards, ensuring safety and environmental compliance. Its uninsulated design is suited for applications where risk of accidental short circuits is minimal, such as in controlled industrial wiring or inside enclosures.

Heavy-duty tubular construction for robust electrical connections. Uninsulated design suitable for safe, non-exposed applications. Copper material with tin plating for optimal electrical performance and corrosion resistance.

Funnel-shaped barrel design for easy wire insertion and effective crimping. High-temperature rating of 150°C for enhanced durability. Compliance with RoHS and ANSI/ESD S20.20 standards for quality and safety assurance. Adapted to connect multi-stranded cables in industrial, automotive, communication, power supply and domestic appliance applications.

Overall length 23 mm, outer ring diameter 10 mm, inner ring diameter 6.4 mm, compatible with M6 studs.

This RS PRO terminal is suitable for professional use in industrial control systems, heavy duty cabling, automotive wiring harnesses, and power distribution applications. It ensures reliable connectivity for multi-stranded cables to various electrical stud and post terminals, offering longevity and electrical safety.
