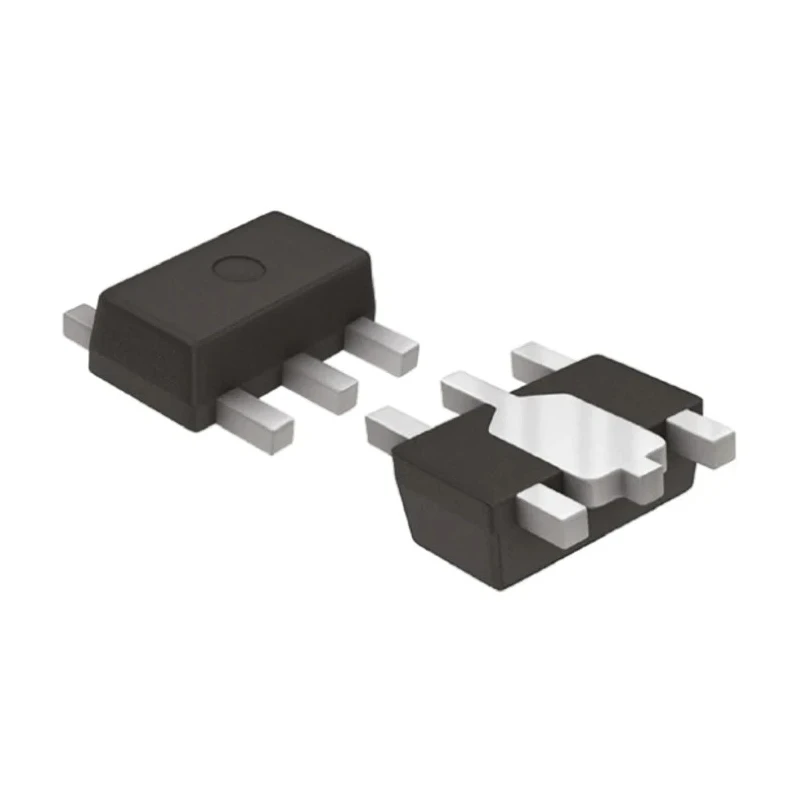

Nisshinbo Micro Devices 5-Channel Low Dropout Voltage Regulator 180mA 10V SOT-89 6-Pin NJM2370U1-10
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Height | 1.5mm |
| Length | 4.5mm |
| Model | NJM2370U1-10 |
| Width | 2.5mm |
| Mount Type | Surface |
| Output type | Fixed |
| Series | NJM2370 |
| Power Rating | 0.35W |
| Output Current | 180mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-89 |
| Load Regulation | 0.03 %/mA |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Regulator Type | Low Dropout Voltage |
| Number of outputs | 5 |
| Maximum Input Voltage | 20V |
| Output Voltage | 10V |
| Quiescent Current | 180μA |
| Line Regulation | 0.12 %/V |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
Key Features
- This device features low dropout voltage operation ensuring minimal voltage difference between input and output.
- Designed for positive polarity operation suitable for various electronic applications.
- It has a quiescent current of 180μA, optimizing power efficiency in circuits.
- Compact dimensions of 4.5mm length, 2.5mm width, and 1.5mm height ensure space-saving on PCBs.
- It offers stable output with line regulation of 0.12%/V and load regulation of 0.03%/mA.
- Operating temperature ranges from -40°C to +85°C supporting industrial environments.
- The device complies with RoHS standards ensuring environmental safety.
- Package type is SOT-89, suitable for surface mounting on printed circuit boards.
Product Description
Nisshinbo Micro Devices NJM2370U1-10 is a 5-Channel Low Dropout (LDO) Voltage Regulator delivering a fixed output voltage of 10V with an output current capacity of 180mA. The regulator operates with a low dropout voltage, allowing efficient voltage regulation with minimal loss between input and output voltages. Housed in a compact SOT-89 6-pin surface mount package with dimensions 4.5mm by 2.5mm and a height of 1.5mm, this product is designed to optimize space on printed circuit boards.
Featuring a low quiescent current of 180μA, the NJM2370U1-10 is well suited for power-sensitive applications. It offers excellent performance with line regulation at 0.12%/V and load regulation at 0.03%/mA, ensuring stable voltage output regardless of variations in load or input voltage.
This voltage regulator supports operation over a wide temperature range from -40°C to 85°C, making it suitable for robust industrial and commercial electronics applications. The product meets RoHS compliance, reinforcing its adherence to environmental standards.
The NJM2370U1-10 is designed for positive polarity circuits and is not a switching regulator, providing a fixed output voltage for smooth DC power management. It finds application in power management ICs for electronics, semiconductors, and various controlled power supply uses.
Low dropout linear voltage regulation for efficient power management. Compact SOT-89 6-pin surface mount package for ease of PCB integration. Wide operating temperature ensures reliable performance in varying environments.
Low quiescent current helps in energy conservation in battery-powered devices. Stable output voltage with excellent line and load regulation characteristics. Compliant with RoHS directives for safe electronic manufacturing.
Fixed 10V output voltage suitable for various electronic circuits. Designed specifically for positive polarity applications.
This product is ideal for use in industrial control, consumer electronics, communication devices, and other applications requiring precise power regulation. Explore more high-quality Voltage Regulators and power management ICs in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NJM2370U1-10 provides a fixed output voltage of 10V.
This model can deliver an output current of up to 180mA.
The SOT-89 package has dimensions of 4.5mm in length, 2.5mm in width, and 1.5mm in height.
It operates effectively within a temperature range of -40°C to +85°C.
It features low dropout voltage regulation, ensuring minimal voltage difference between input and output.
The line regulation is 0.12%/V and the load regulation is 0.03%/mA, ensuring stable output under varying conditions.
The quiescent current of the NJM2370U1-10 is 180μA, optimizing power efficiency.
Yes, it complies with RoHS standards, ensuring environmental safety in electronic manufacturing.
This model features 5 outputs for voltage regulation.
The maximum input voltage for this voltage regulator is 20V.
It is designed for surface mounting on printed circuit boards (PCBs).
It is suitable for various electronic applications requiring precise power regulation, including industrial control and consumer electronics.
