Nisshinbo Micro Devices 5-Channel Low Dropout Voltage Regulator 650mA 3.3V SOT-89 5-Pin NJM2884U1-33-TE1

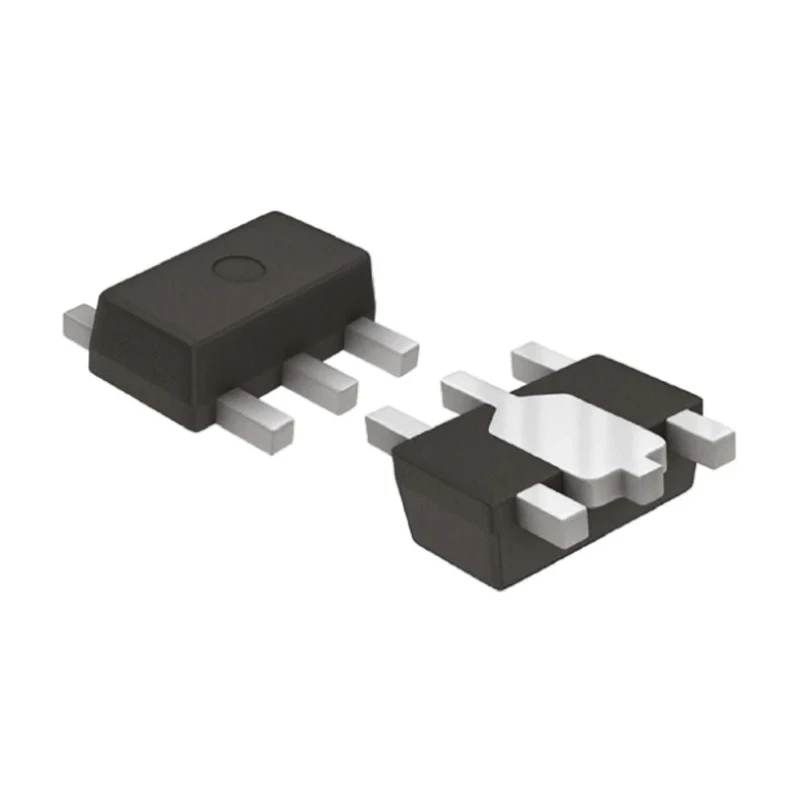

Nisshinbo Micro Devices NJM2884U1-33-TE1 is a 5-channel low dropout (LDO) voltage regulator that provides a fixed 3.3V output voltage capable of delivering up to 650mA output current. This device features low dropout voltage operation, making it highly efficient for applications where power conservation is critical. It comes in a compact SOT-89 5-pin surface mount package, measuring 4.5mm x 2.5mm x 1.5mm.

With a quiescent current of only 300μA, the NJM2884U1-33-TE1 ensures minimal power loss during standby, contributing to longer battery life in portable devices. It offers excellent line regulation (0.1 %/V) and load regulation (0.009 %/mA), maintaining stable voltage output despite variations in load or input voltage. The operating temperature range of -40°C to 85°C makes it suitable for a wide array of industrial and automotive environments.

This voltage regulator complies with RoHS standards, ensuring environmentally friendly manufacturing. The positive polarity fixed output voltage of 3.3V is commonly used for powering microcontrollers, sensors, and other digital circuits in electronic components. The surface mount package facilitates easy PCB assembly and high-density circuit designs.

This device offers a maximum output current of 650mA for reliable power supply. Compact SOT-89 5-pin package minimizes PCB space consumption. Low quiescent current of 300μA improves power efficiency. Wide operating temperature range supports demanding application conditions.

Stable voltage regulation with low line and load variation. RoHS compliant for reduced environmental impact.

This regulator is ideal for applications including industrial power management, automotive electronics, consumer devices, and embedded systems requiring efficient, reliable 3.3V power sources.
