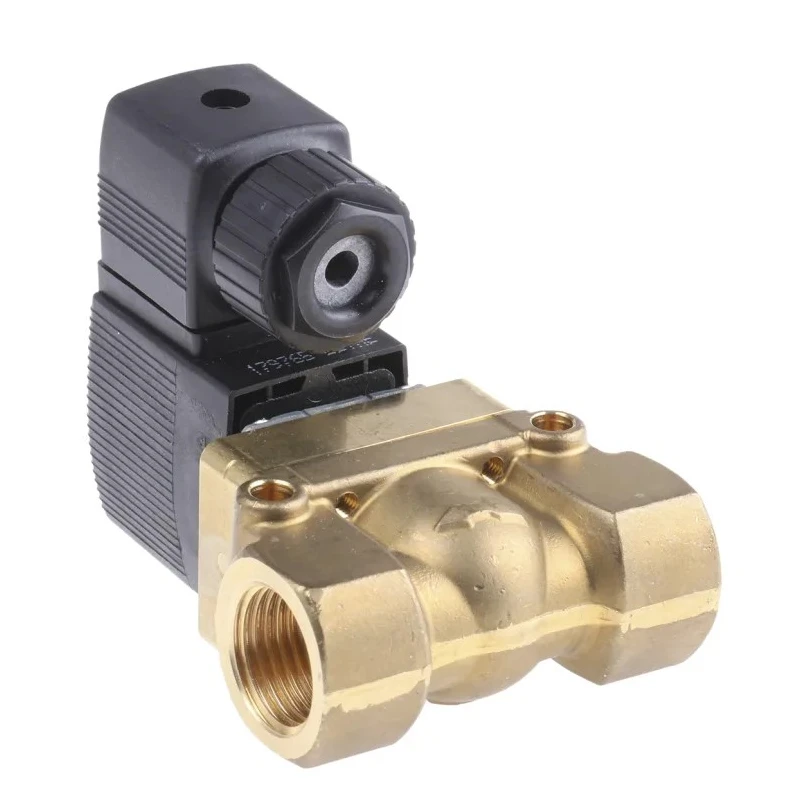

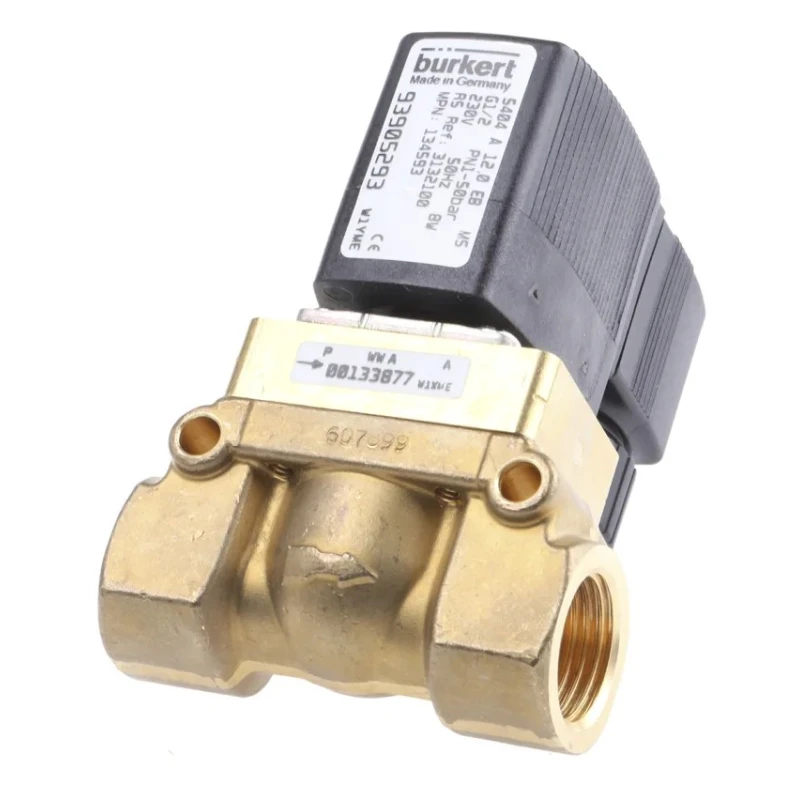

Burkert Solenoid Valve 2 Port NC Brass Body 12mm Orifice 230V ac 50 bar Maximum Pressure 134593
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 50 bar |
| Outlet Connection Type | Type G |
| Model | 134593 |
| Series | 5404 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 12mm |
| Supply Voltage | 230V ac |
| Hazardous Area Certification | EEx m, ed, Hazardous location |
| Standards/Approvals | UR, UL, CSA |
| Default Valve Position | NC |
| Inlet Thread Standard | DIN EN 175301-803 Form A |
| Maximum Opening Time | 400ms |
| Flow Factor Kv | 2m³/h |
| Maximum Closing Time | 1.5s |
| RS PRO Solenoid Valve, 2 Port, NC 1/2 in, 220V ac, 1/2 inRS Stock No. | 235-1116Brand: RS PRO |
| Solenoid Valve, 2 port(s) , 220 V acBrand | Burkert |
Key Features
- Constructed with high-quality brass body and polyamide coil for durability.
- Operates reliably with compressed air, hydraulic oil, neutral media, and water.
- Has an orifice diameter of 12mm and a flow factor Kv of 2m³/h for efficient flow control.
- Equipped with a servo-assisted piston valve ensuring fast switching times.
- Certified with UR, UL, CSA standards and suitable for hazardous locations.
- Operating temperature ranges from 0°C to 55°C with explosion-proof versions available.
- Coil can be easily locked in four 90° positions or adjusted as needed.
- Features robust inlet and outlet connections per DIN EN 175301-803 Form A standards.
Product Description
Burkert 134593 is a 2-port solenoid valve with a brass body and polyamide coil designed for industrial fluid control applications. This normally closed valve operates at 230V ac with a maximum operating pressure of 50 bar, suitable for compressed air, hydraulic oil, neutral media, and water.
The valve incorporates a servo-assisted piston mechanism, providing quick opening and closing functions with a maximum opening time of 400 milliseconds and a closing time of 1.5 seconds. The 12mm orifice diameter supports efficient flow with a Kv value of 2 cubic meters per hour.
Its inlet and outlet connections conform to DIN EN 175301-803 Form A standard with Type G threads, ensuring compatibility with industrial pipelines. The valve system includes a high-quality PTFE seal that allows reliable performance even at minimum differential pressures.
Operating temperatures range from -10°C to 55°C, and the product is designed with explosion-proof certifications for hazardous locations (category 2). The coil can be easily secured or rotated in 90° increments for versatile installation options.
Certified by UR, UL, and CSA, the valve meets industrial safety and performance standards. The product’s country of origin is Germany, reflecting its premium manufacturing quality.
Brass body with polyamide coil for enhanced durability. Suitable for gas, steam, compressed air, and neutral media. Operating voltage: 230V ac ensuring stable electrical performance. Maximum operating pressure of 50 bar for demanding applications.
Explosion-proof versions available for hazardous environments. Easy coil replacement and locker design for flexible mounting.
This Burkert Solenoid Valve suits industrial, manufacturing, HVAC, and fluid power system applications. Explore the wide range of industrial valves and fittings available on EnvMart for your process needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 50 bar.
This model features an orifice diameter of 12mm.
The supply voltage for this solenoid valve is 230V ac.
The operating temperature range for this valve is from -10°C to 55°C.
It can operate reliably with compressed air, hydraulic oil, neutral media, and water.
The inlet and outlet connections conform to DIN EN 175301-803 Form A standard with Type G threads.
The maximum opening time is 400 milliseconds and the maximum closing time is 1.5 seconds.
This valve is certified with UR, UL, and CSA standards and is suitable for hazardous locations.
The flow factor Kv for this valve is 2m³/h.
Yes, the coil can be easily locked in four 90° positions or adjusted as needed.
The country of origin for this solenoid valve is Germany.
The default valve position for this model is normally closed (NC).
