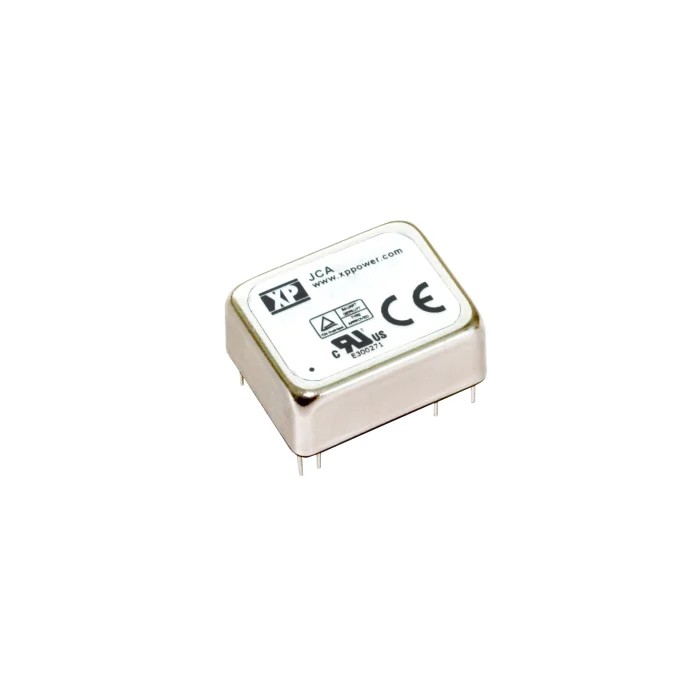

XP Power 12V DC 500mA Isolated DC/DC Converter 6W Through Hole JCA0605S12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCA DC/DC Converter, 12V dc/ 500 mA, 9V d |
| Brand | XP Power |
| Efficiency | 84% |
| Length | 25.4mm |
| Model | JCA0605S12 |
| Depth | 10mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | JCA |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 1 |
| Maximum Output Power | 6W |
| Maximum Input Voltage | 9V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 24 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 500mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Compact DIP package measuring 25.4mm x 20.3mm x 10mm suitable for high-density PCB integration.
- High isolation voltage of 1.5kV DC between input and output ensuring electrical safety.
- Output current capacity of 500mA with consistent 12V DC voltage output.
- Operating temperature from -40°C up to 100°C supports harsh industrial environments.
- High efficiency of approximately 84% minimizes energy loss during conversion.
- Mean time between failures (MTBF) rated at 1,000,000 hours for reliable long-term operation.
- Industry-standard pinout with 24 pins for straightforward through-hole mounting.
- Designed and manufactured in Taiwan, Province Of China meeting high manufacturing standards.
Product Description
XP Power JCA0605S12 is a high-reliability isolated DC/DC converter designed for electronic and industrial applications requiring stable 12V DC output at 500mA with 6 Watts power capacity. This converter features a compact through-hole DIP metal package with dimensions 25.4mm in length, 20.3mm in width, and 10mm in depth, allowing efficient integration into power supply circuits and modules.
The unit accommodates a 2:1 wide input voltage ratio ranging from 4.5V to 9V DC, ensuring compatibility with various power sources. Isolation voltage is rated at 1.5kV DC between input and output, providing robust electrical separation compliant with safety standards. The arrangement includes 24 pins for secure through-hole mounting on printed circuit boards using an industry-standard footprint, simplifying assembly and maintenance.
This converter operates efficiently at 84%, reducing thermal stress and energy waste. It reliably functions within the temperature range of -40°C to +100°C, suitable for harsh industrial or commercial environments. The Mean Time Between Failures (MTBF) is an impressive 1,000,000 hours, underscoring its quality and longevity in demanding applications.
The JCA series from XP Power is UL and TUV approved, though this specific model does not cite approvals. The product's country of origin is Taiwan, Province Of China, reflecting stringent manufacturing and quality control processes. This converter serves a broad array of use cases including industrial electronics, automation systems, power supplies for communication equipment, instrumentation, and embedded power modules.
Input voltage range: 4.5V to 9V DC with 2:1 ratio. Output voltage: 12V DC at 500mA. Maximum output power: 6W. Isolation voltage: 1500V DC input to output. Operating temperature: -40°C to +100°C. Package: Through Hole DIP with 24 pins.
Efficiency: 84%. MTBF: 1,000,000 hours. Dimensions: 25.4 x 20.3 x 10 mm (L x W x D). Country of origin: Taiwan, Province Of China.
This XP Power JCA0605S12 DC-DC Converter is an essential component for engineers and manufacturers seeking a compact, efficient, and reliable power conversion solution for diverse electrical and industrial equipment. Explore EnvMart’s extensive category of DC/DC Converters to find compatible products and accessories.
