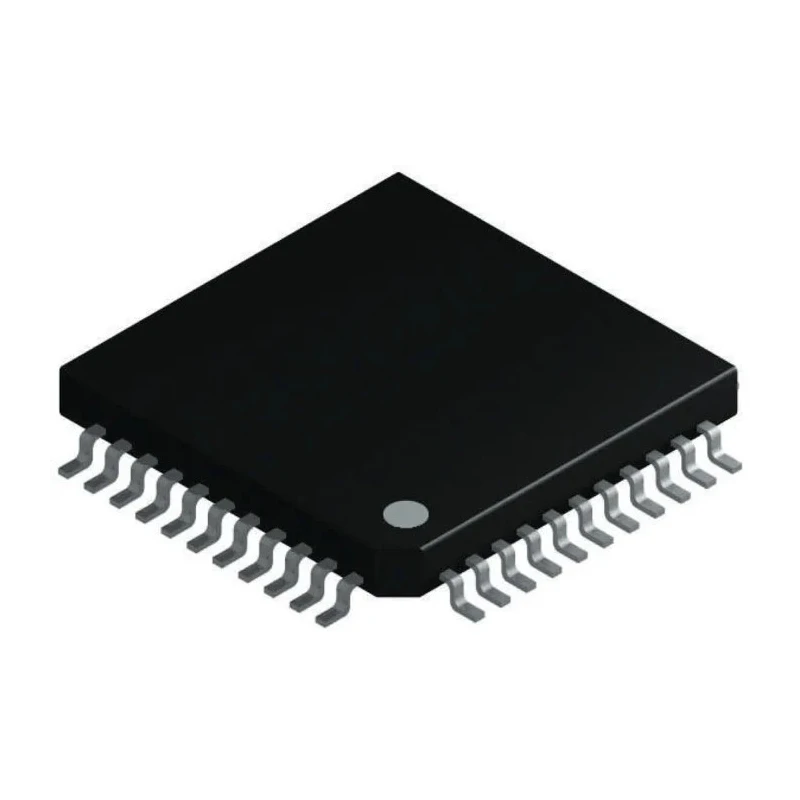

NXP 8 bit S08 HCS08 Microcontroller, 40 MHz, 16kB FLASH, 44-Pin QFP MC9S08GT16ACFBE

Free Delivery in India | Lowest Global Shipping Charges

NXP 8 bit S08 HCS08 Microcontroller, 40 MHz, 16kB FLASH, 44-Pin QFP MC9S08GT16ACFBE



Category Microcontroller Brand NXP Condition New

Specifications

Country of Origin	India
Brand	NXP
Height	2mm
Length	10mm
Model	MC9S08GT16ACFBE
Width	10mm
Mount Type	Surface
Series	HCS08
Maximum Operating Temperature	85°C
Package Type	QFP
Minimum Operating Temperature	-40°C
Ram size	2kB
Interface Type	SCI, SPI
Pin Count	44
Automotive Standard	AEC-Q100
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	1.8V
Device Core	S08
Program Memory Size	16kB
Maximum Clock Frequency	40MHz
Number of Programmable I/Os	36
Number of Timers	2
Instruction Set Architecture	CISC
ADCs	8 x 10 Bit
Program Memory Type	FLASH

Key Features

Features a 40 MHz maximum clock frequency for efficient processing.
Includes 16kB of FLASH program memory type for robust code storage.
8-bit data bus width with S08 device core architecture.
Equipped with 36 programmable I/O pins for flexible interfacing.
Operates within a voltage range of 1.8V to 3.6V ensuring wide compatibility.
Offers 2kB RAM size facilitating adequate data memory.
Integrated 2 timers and 8 x 10 bit ADCs for versatile applications.
Designed for automotive applications with AEC-Q100 standard compliance.

Product Description

NXP MC9S08GT16ACFBE is an 8-bit S08 core microcontroller from the HCS08 family, delivering low power consumption and high performance at 40 MHz. It comes with 16kB FLASH program memory and a compact 44-pin QFP surface mount package measuring 10mm x 10mm x 2mm. This microcontroller operates within a wide voltage range from 1.8V to 3.6V, making it suitable for various electronic designs.

The device features 36 programmable input/output pins, 2 timers, and 8 channels of 10-bit analog-to-digital converters (ADCs), facilitating complex control and sensing tasks. With a RAM size of 2kB and support for SCI and SPI interfaces, it provides reliable communication options for embedded systems. The architecture follows the CISC instruction set and is certified to meet the automotive standard AEC-Q100, ensuring robustness in demanding environments.

Applications include embedded control in industrial automation, automotive electronics, and consumer devices where low power and high processing speed are critical. Its zero-component auto-wakeup from 'stop' mode reduces current consumption to as low as 0.7 microampere, extending battery life in portable systems.

This microcontroller is ideal for use in industrial, automotive, laboratory, and commercial electronics settings where precision timing, control, and communication are required. It supports programmable internal clock generators with temperature and voltage compensation for stable operation.

Features a 40 MHz maximum clock frequency for efficient processing. Includes 16kB of FLASH program memory type for robust code storage. 8-bit data bus width with S08 device core architecture. Equipped with 36 programmable I/O pins for flexible interfacing.

Operates within a voltage range of 1.8V to 3.6V ensuring wide compatibility. Offers 2kB RAM size facilitating adequate data memory. Integrated 2 timers and 8 x 10 bit ADCs for versatile applications. Designed for automotive applications with AEC-Q100 standard compliance.

Supports SCI and SPI interface types for peripheral communication. Compact 10mm x 10mm x 2mm dimensions in a surface mount QFP package. Explore our extensive range of Microcontrollers and semiconductor components for industrial and commercial electronics on EnvMart.
