XP Power FCM400PS36 Switching Power Supply 36V DC 400W, Chassis Mount, 80-275V AC Input FCM400PS36

Free Delivery in India | Lowest Global Shipping Charges

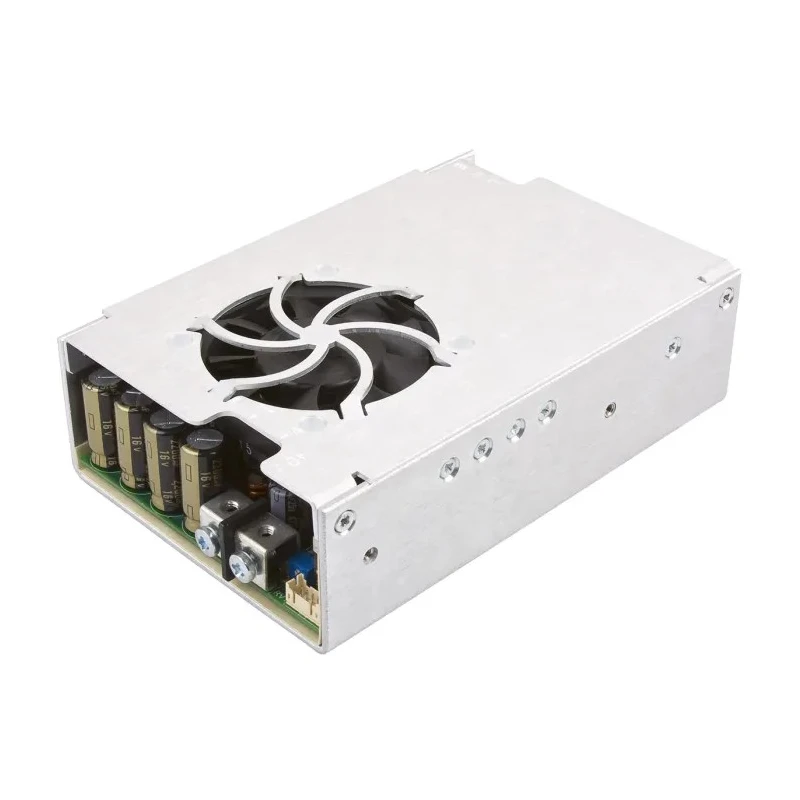

XP Power FCM400PS36 Switching Power Supply 36V DC 400W, Chassis Mount, 80-275V AC Input FCM400PS36

Name: XP Power FCM400PS36 Switching Power Supply 36V DC 400W, Chassis Mount, 80-275V AC Input FCM400PS36
Brand: XP Power
SKU: 140694



Category Switching Power Supplies Brand XP Power Condition New

Specifications

Country of Origin	India
Brand	XP Power
Power	400W
Efficiency	85%
Length	152.4mm
Model	FCM400PS36
Depth	49mm
Gross Weight	800g
Width	101.6mm
Mount Type	Chassis
Series	FCM
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Number of outputs	1
Maximum Input Voltage	275V ac
Maximum Output Voltage	36V dc
SMPS Output Current	11.1A
Minimum Input Voltage	80V ac

Key Features

Delivers a maximum output voltage of 36V DC for precise power needs.
Supports operating input voltage range from 80V to 275V AC.
Features a continuous power output of 400W with 11.1A current capacity.
Operates efficiently with 85% energy conversion efficiency.
Designed for chassis mount with compact dimensions (152.4 x 101.6 x 49 mm).
Wide operating temperature from -10°C to 70°C for versatile environments.
Complies with multiple safety and EMC standards including IEC and UL for medical use.
Equipped with low noise fan and screw terminal connections for stable operation.

Product Description

XP Power FCM400PS36 is a robust switching power supply designed for demanding industrial, medical, and IT applications requiring reliable 36V DC power delivery at 400W rating. This chassis mount power supply accepts a broad input voltage range between 80V and 275V AC, providing flexibility in different power environments.

Engineered with 85% efficiency, the device generates minimal heat and energy loss, supported by an integrated low noise fan ensuring consistent cooling during prolonged operations. The unit supports an output current of 11.1A and features screw terminal connections to guarantee secure wiring in installations.

The compact dimensions (152.4mm length, 101.6mm width, 49mm depth) enable fitting into constrained spaces, making it suitable for compact machinery and systems. Operating temperature range from -10°C to 70°C allows for use in diverse conditions without compromising performance.

Designed to meet stringent standards such as ANSI/AAMI ES 60601-1, CSA 22.2, EN 55011/22, IEC 60601-1 CB Report, TUV, and UL certifications, this unit is suited for safety-critical applications including medical devices and industrial controls.

Key features also include a 5V standby output, AC OK signal, and remote on/off function for enhanced operational control and monitoring. The FCM series power supplies from XP Power are known for their long-term reliability and performance in challenging applications.

Delivers a maximum output voltage of 36V DC for precise power needs. Supports operating input voltage range from 80V to 275V AC. Features a continuous power output of 400W with 11.1A current capacity. Operates efficiently with 85% energy conversion efficiency.

Designed for chassis mount with compact dimensions (152.4 x 101.6 x 49 mm). Wide operating temperature from -10°C to 70°C for versatile environments. Complies with multiple safety and EMC standards including IEC and UL for medical use.

Equipped with low noise fan and screw terminal connections for stable operation. Ideal for IT, medical, industrial automation, and power control systems. Robust build with 800 grams weight for durable usage. Explore more power supply options and related industrial electronics solutions on EnvMart to meet your project specifications with trusted brands and quality assurance.
