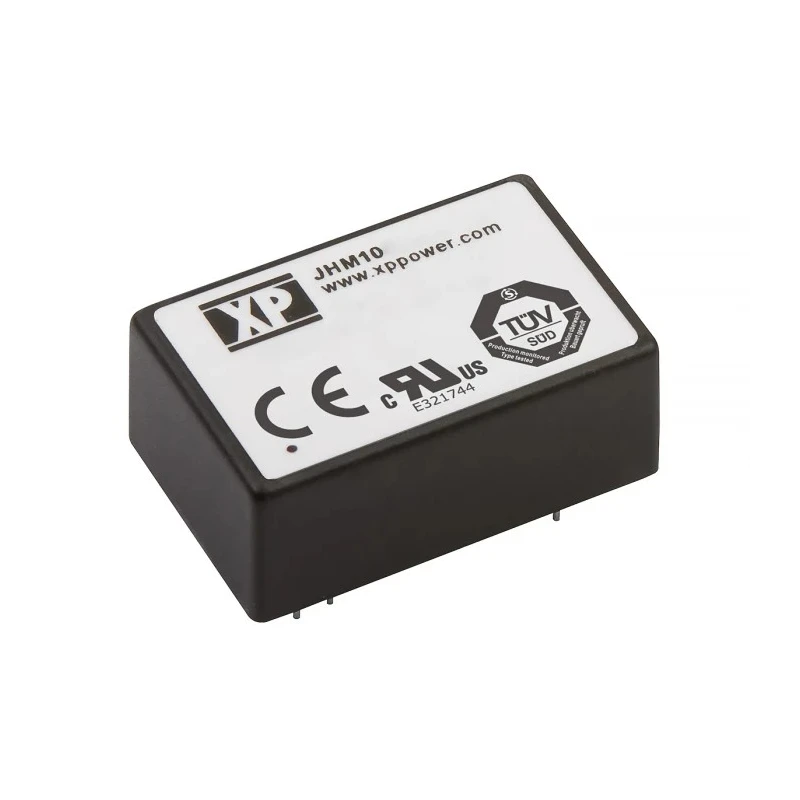

XP Power DC/DC Converter 5V DC Output 2 A, 9V DC Max Input, 4.5V Min Input, 10 W Power, Through Hole DIP-24 JHM1005S05

XP Power JHM1005S05 is a high-reliability 10 W isolated DC/DC converter designed for industrial and medical electronics applications. It provides a regulated 5 V DC output at 2 A current, ideal for powering sensitive equipment requiring stable voltage supply. The device supports an input voltage range from 4.5 V minimum to a maximum of 9 V DC, making it suitable for varied power sources.

This converter features a through hole DIP-24 package form factor with 24 pins, facilitating easy integration into printed circuit boards. It boasts an efficiency of 83.5%, contributing to energy savings and reduced heat generation during operation.

The product is designed with reinforced insulation capable of withstanding 4000 VAC isolation voltage, ensuring safe operation in challenging electrical environments. It meets the IEC60601-1 3rd edition safety standard, making it appropriate for medical device usage with very low patient leakage current of 2 μA.

Operating temperature range extends from -40°C to +80°C, allowing deployment in harsh and demanding environments. The product offers an impressive mean time between failures (MTBF) of 1,000,000 hours, reflecting excellent durability and reliability.

Its compact dimensions of approximately 31.75 mm length, 20.32 mm width, and 10.4 mm depth help in space-constrained assembly and designs. The JHM10 series is known for robustness in power conversion and isolation, contributing to safe, efficient performance in industrial electronics, medical devices, instrumentation, and control systems.

Isolated 10 W DC/DC power conversion for industrial and medical electronics. Wide operating temperature range from -40°C to 80°C for versatile deployment. Compliance with IEC60601-1 3rd edition safety approvals ensures medical safety standards.

4000 VAC reinforced insulation enhances electrical safety and isolation. Compact DIP-24 through hole package for reliable PCB mounting. High efficiency at 83.5% reduces operating losses. Low leakage current suitable for patient safety in medical applications.

Long MTBF of 1,000,000 hours for dependable continuous operation. Manufactured in Taiwan, Province of China.

This DC/DC converter series is suited for industrial controls, medical instrumentation, communication equipment, and power supply applications requiring isolated and regulated voltage outputs. It couples robust electrical isolation with efficient power conversion and reliable performance under variable temperature conditions.
