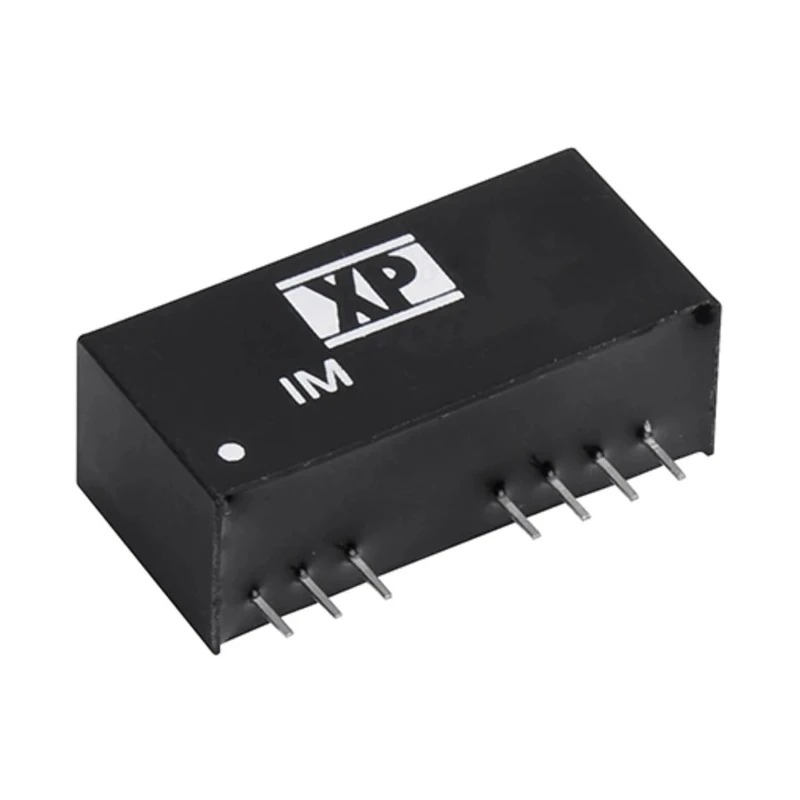

XP Power IM Series Regulated Isolated DC/DC Converter, 5V DC Output, 400mA, 18-75V DC Input, 2W Power, Through Hole IM4805SA

XP Power IM4805SA model is part of the IM Series of isolated DC/DC converters designed to provide a reliable, regulated single output of 5V DC at 400mA current. This compact 2 watt DC/DC converter operates over a wide input voltage range of 18V to 75V DC and is packaged in a standard SIP Through Hole format, facilitating easy integration onto printed circuit boards.

Featuring a high isolation voltage of 1.5kV DC, the device enhances electrical safety and minimizes interference in sensitive applications. It achieves an efficiency of 80%, contributing to reduced power loss and heat generation during operation. The operating temperature range spans from -40°C to a maximum of 100°C, ensuring dependable performance in harsh industrial environments.

The IM4805SA incorporates continuous short circuit protection and remote on/off control capabilities for advanced power management. Its robust construction supports an MTBF of 1,200,000 hours, demonstrating a long operational life suitable for demanding applications.

Dimensions are compact with a length of 26mm, width of 9.2mm, and a depth of 12.5mm. The unit includes 7 pins arranged in a SIP package for through hole mounting, compatible with a wide variety of electronic designs.

This DC/DC converter is ideal for industrial automation, telecommunications, instrumentation, and medical device power supply needs where isolated, regulated low voltage DC outputs are critical. The wide 4:1 input range and efficient energy conversion make it suitable for powering sensitive electronics with reduced electromagnetic interference.

Compact 2 watt power rating suitable for low power applications. Wide input voltage range from 18V to 75V DC for versatile deployment. High isolation voltage of 1.5kV DC ensures safety and noise immunity. Efficient energy conversion with 80% efficiency rating.

Operates reliably across a broad temperature range from -40°C to 100°C. Through hole mounting with 7 pins in a SIP package for easy PCB integration. Single output design delivering stable regulated 5V output voltage. Mean time between failures (MTBF) of 1,200,000 hours indicating robust reliability.

Compact footprint with dimensions 26mm length, 12.5mm depth, and 9.2mm width. Ideal for industrial, medical, and telecommunications power supply applications requiring isolated DC/DC conversion. Explore more advanced power management and DC/DC Converters in the Electronics & Electrical category on EnvMart to find products adapted to your application requirements.
